IBM 4247 User Manual

Table 15. MAP 0190: Forms Feed Problems (continued)
Step Questions/Actions Yes No
7.
An incorrect metal forms guide deflector position or an
incorrect paper bail position can cause forms feed
failures.

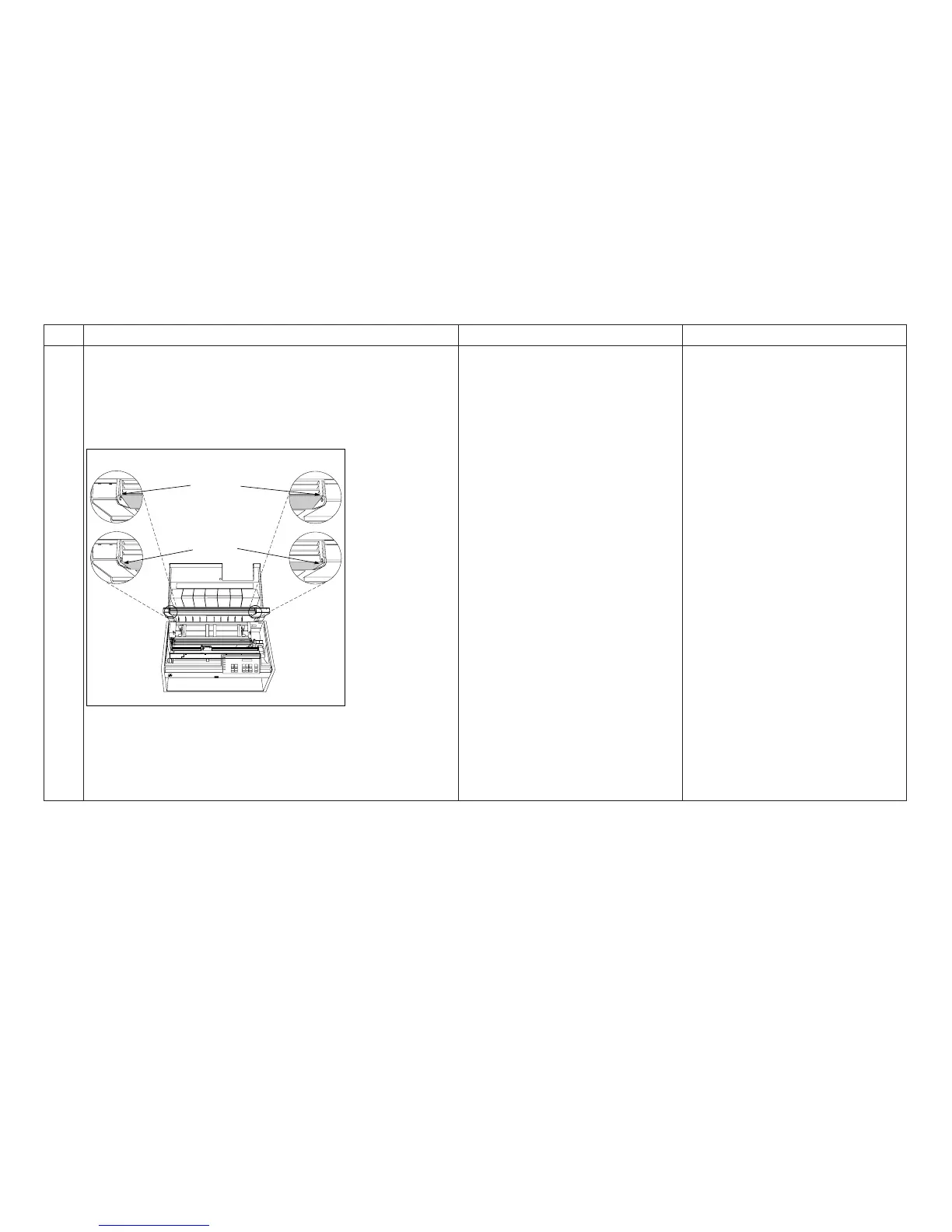

The metal forms guide deflector is closed in the up
position and open when it is in the down position.
M etal Form s G uide D eflector
Closed ( )
Position
M etal Form s G uide D eflector
O pen ( )
Position
PUSH
PULL
See Table 25 on page 158 for the position of the metal
forms guide deflector and the paper bail for each paper
path.
Go to step 8 on page 108.
Chapter 1. Diagnosing Problems
107
