Table 15. MAP 0190: Forms Feed Problems (continued)
Step Questions/Actions Yes No
33.
Check that the bellcrank is correctly moving the lower
pinch rollers up and down.
Check the parts at the left end of the platen. The
bellcrank must be positioned between the platen gear
and the washer.

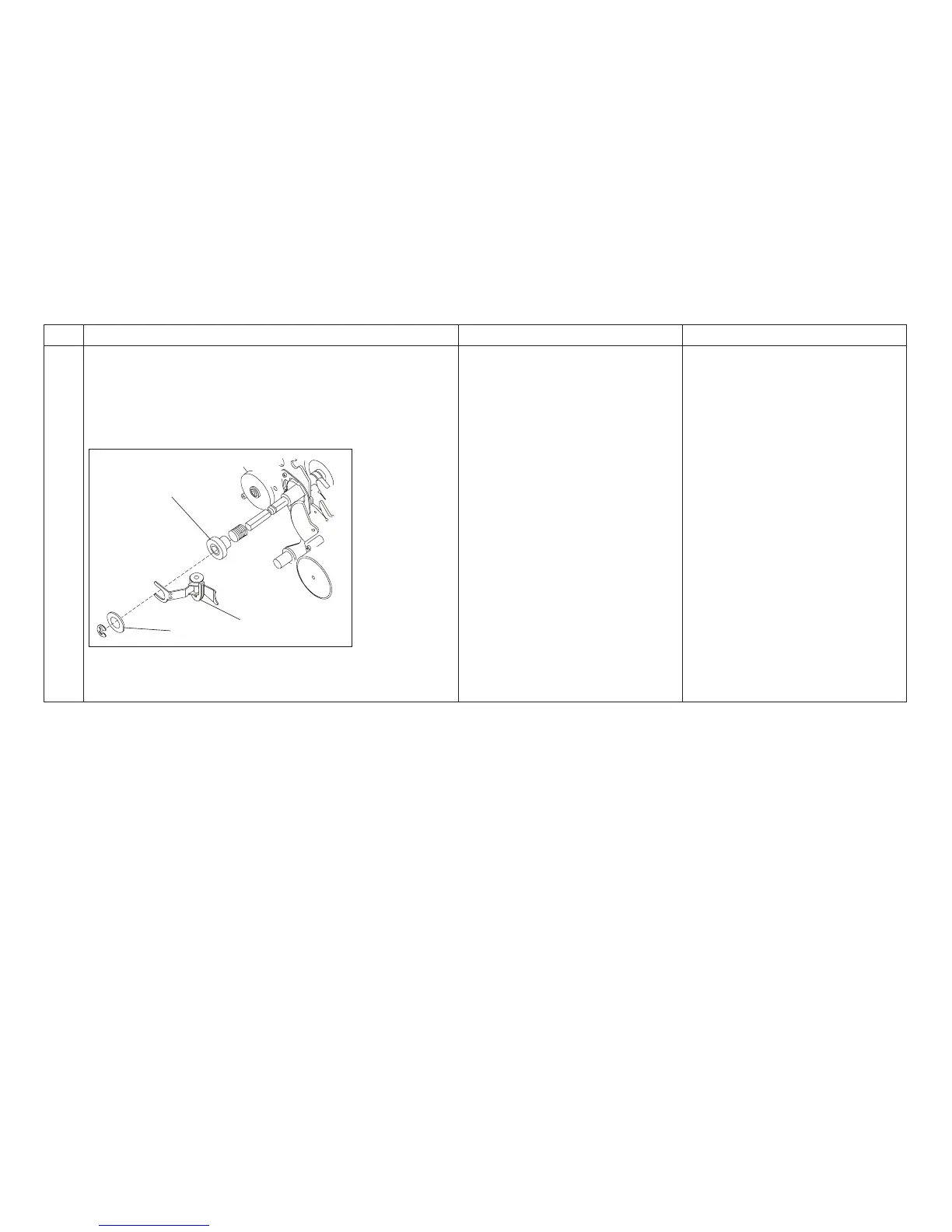

e90aas4
Washer
Platen Gear
Bellcrank
Is the bellcrank installed correctly and functioning
correctly?
Go to step 34 on page 123. Repair, as needed.
Run T&D 11 to perform a correct
calibration of the rear path
sensor.
