f. Reinstall any parts that were removed or not replaced in this procedure.
7. The following adjustments, when out of range, can cause paper feed failures. Ensure that they are correct:
a. “Standard AFTA Service Check and Adjustment” on page 285.
b. “Sensor Service Checks” on page 296.
c. “Paper Feed Belt” on page 281.
8. Clean the following parts with isopropyl alcohol (PN 2155966):
Platen
Upper Feed
Roller
Upper Feed
Roller Pulley
Upper Feed
Roller Pulley
Belt
Platen
Inside
Pulley
Lower
Plastic
Shield
Upper
Plastic
Shield
Paper
Bail

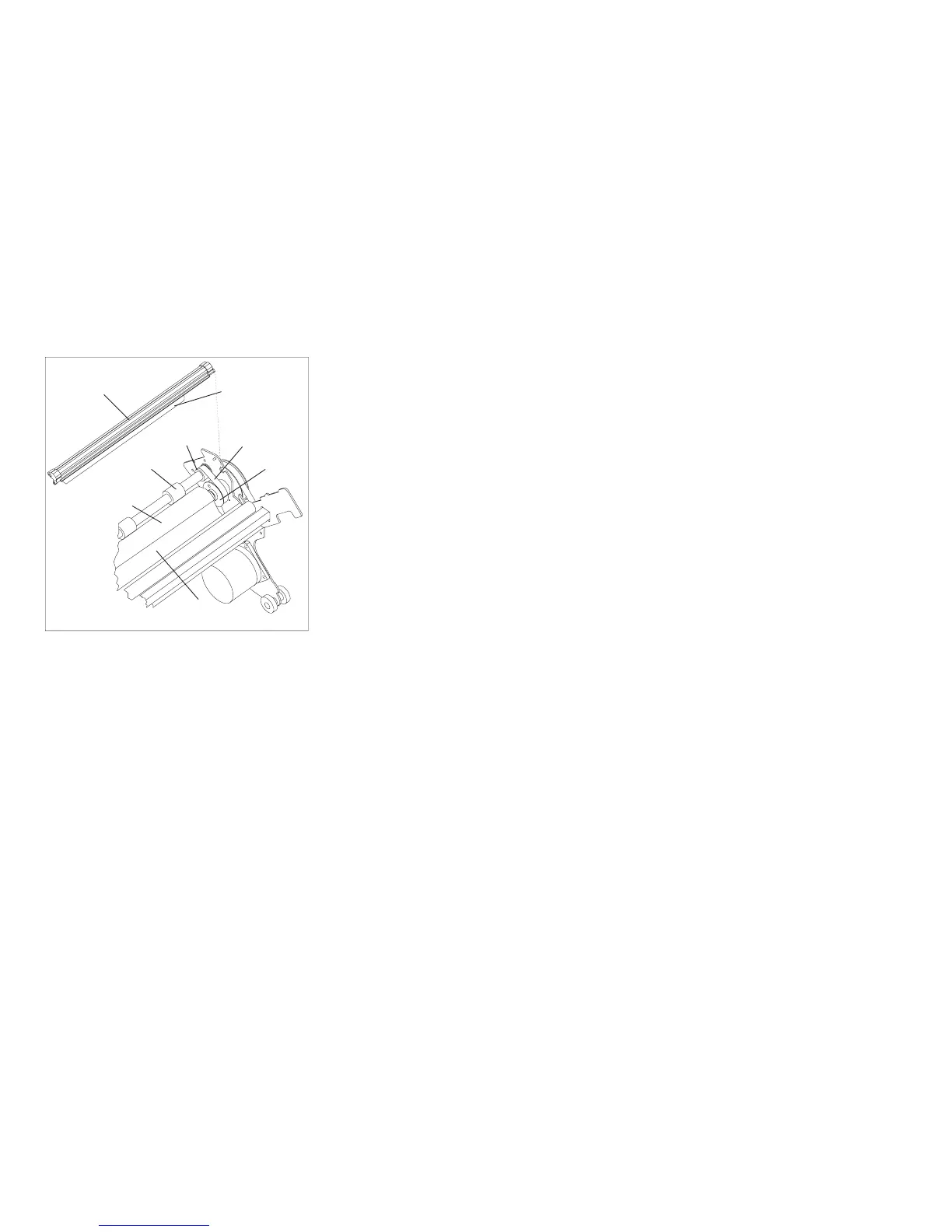

Figure 64. Paper Feed Main Drive.
(Viewed From Top)
Chapter 5. Removals and Adjustments 309
