9. Remove the right side mounting screw and loosen the bottom carriage shaft retainer screw far enough to
allow the plastic shield/support assembly to be removed.
10. Remove the left side mounting screw.
Paper Presence Sensor
e90am
s3

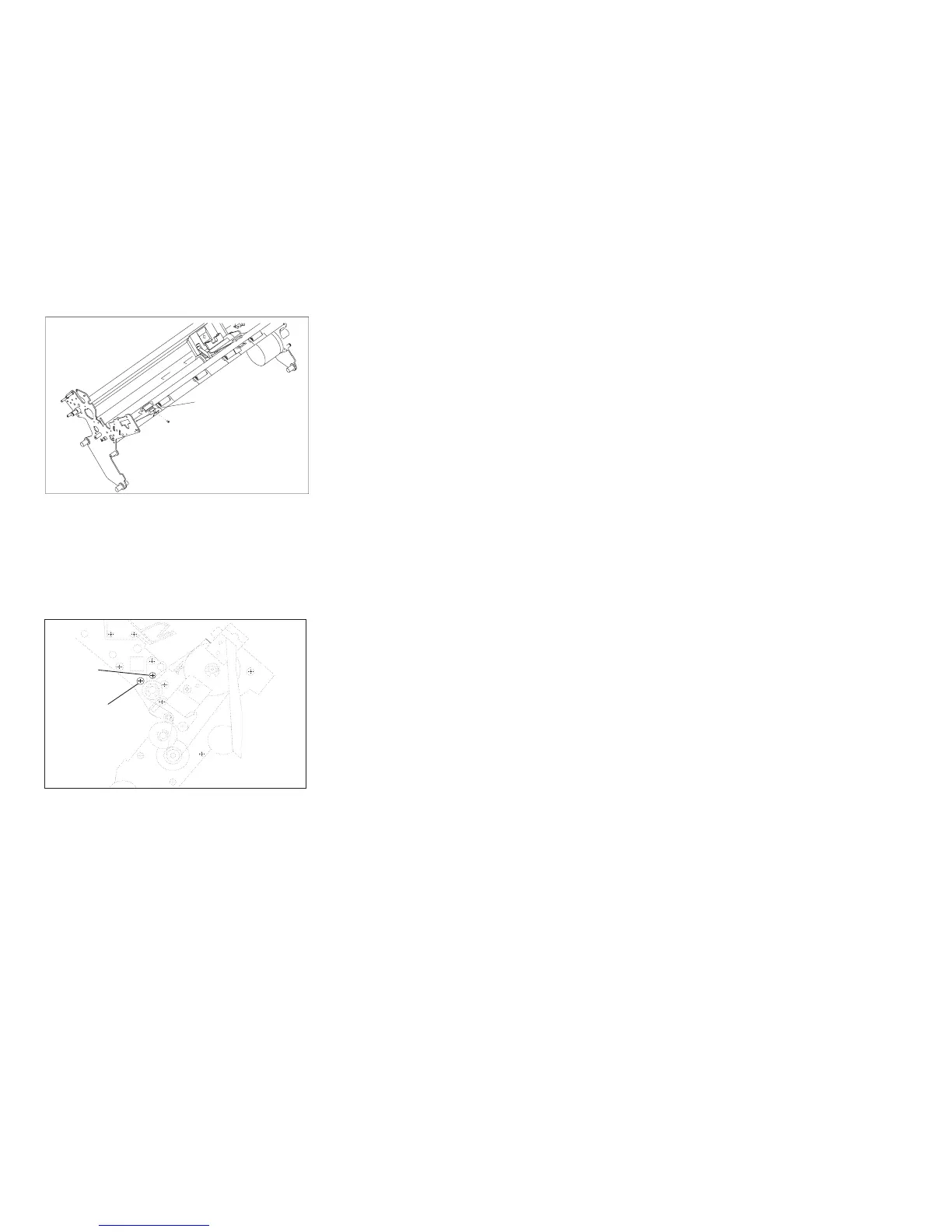

Figure 190. Manual Sheet Feed Paper Presence Sensor.
(Viewed From Left)
Right Side
Mounting
Screw
Bottom
Retainer
Screw
Figure 191. Plastic Shield/Support Assembly Screws.
(Viewed From Right Side)
