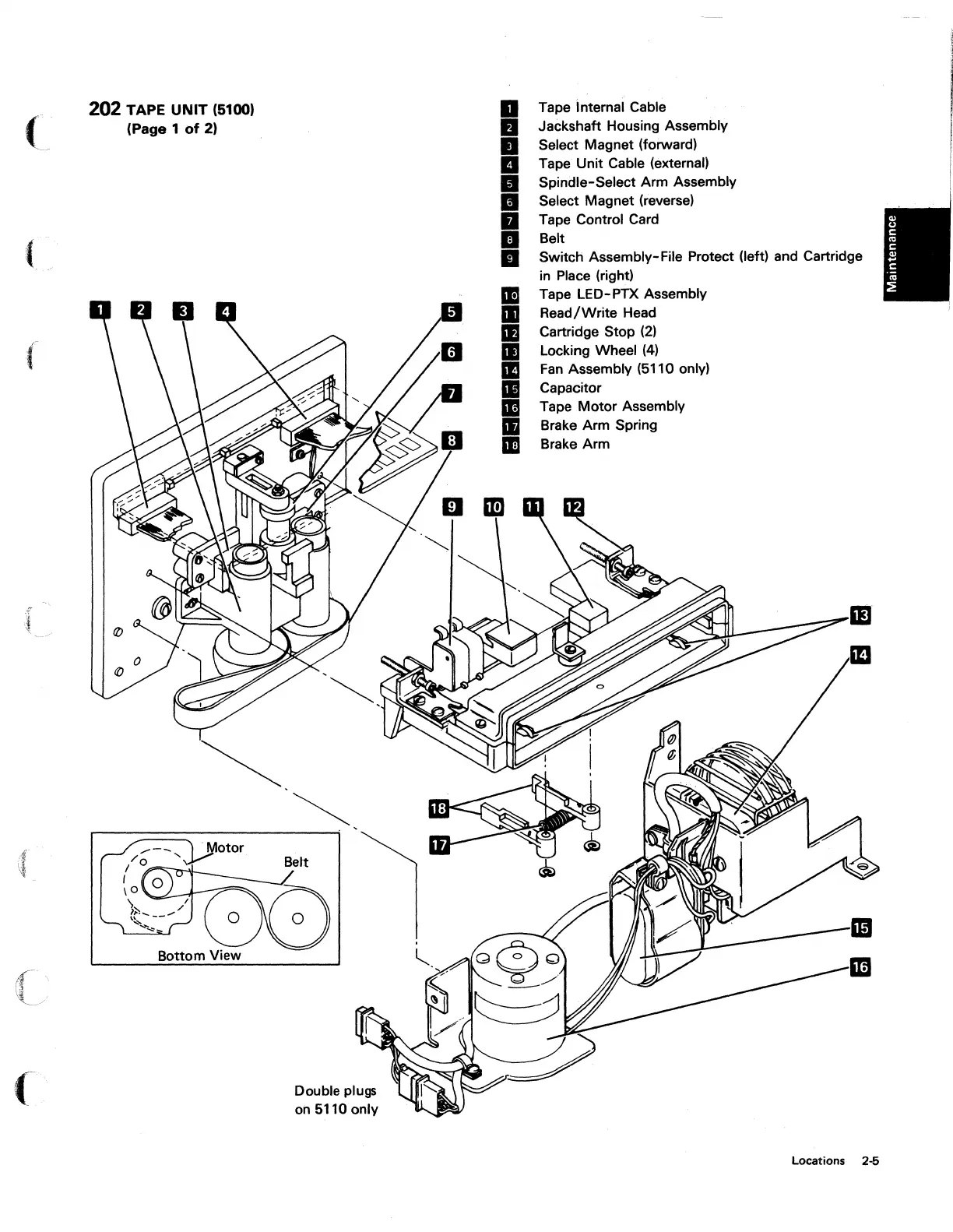

202 TAPE UNIT (5100)
(Page 1 of 2)
88
Bottom View
Double plugs
on 5110 only
• Tape internal Cable
• Jackshaft Housing Assembly
• Select Magnet (forward)
II Tape Unit Cable (external)
• Spindle-Select Arm Assembly
II Select Magnet (reverse)
• Tape Control Card
.. Belt
• Switch Assembly-File Protect (left) and Cartridge
in Place (right)
II Tape LED- PTX Assembly
III Read/Write Head
.. Cartridge Stop (2)
II Locking Wheel (4)
II Fan Assembly (5110 only)
II Capacitor
II Tape Motor Assembly
II Brake Arm Spring
II Brake Arm
Locations 2-6
