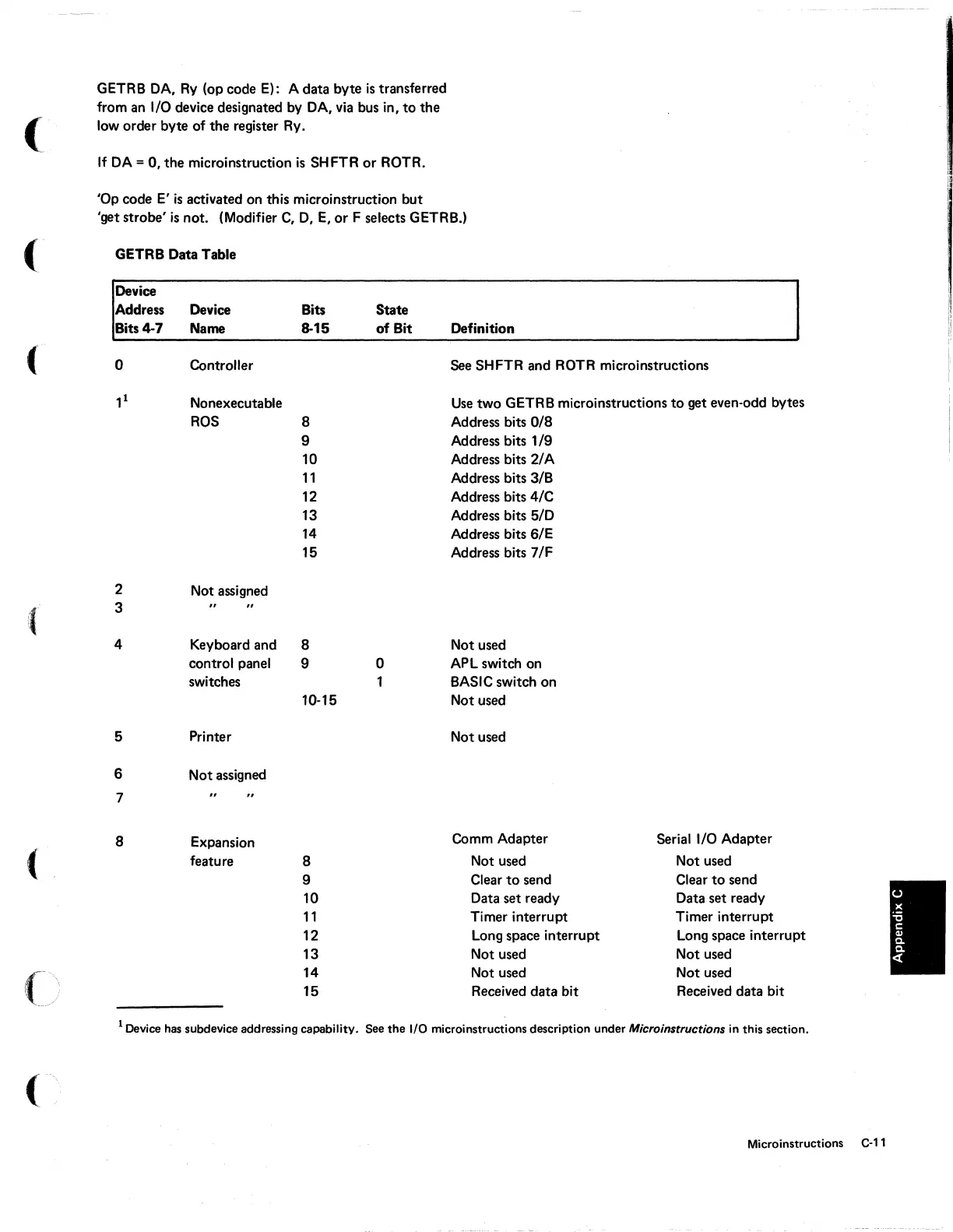

GETRB DA, Ry (opcode E): A data byte is transferred
from an I/O device designated by DA, via bus in, to the
(
low order byte of the register Ry.
If DA = 0, the microinstruction is SHFTR or ROTR.
'Op code E'
is activated on this microinstruction but
'get strobe' is not. (Modifier C, 0, E, or F selects GETRB.)
(
GETRB Data Table
Device
Address Device
Bits State
Bits 4-7
Name
8-15 of Bit Definition
(
0 Controller See SHFTR and ROTR microinstructions
11
Nonexecutable
Use two GETRB microinstructions to get even-odd bytes
ROS
8
Address bits
0/8
9 Address bits 1/9
10 Address bits 2/ A
11 Address bits 3/B
12 Address bits 4/C
13 Address bits 5/0
14
Address bits 6/E
15 Address bits 7/F
2
Not assigned
{
3
4 Keyboard and
8
Not used
control panel
9
0
APl switch on
switches
1
BASIC switch on
10-15 Not used
5
Printer
Not used
6
Not assigned
7
8
Expansion
Comm Adapter
Serial I/O Adapter
(
feature
8
Not used
Not used
9 Clear to send Clear to send
10
Data set ready Data set ready
11
Timer interrupt Timer interrupt
12
long space interrupt long space interrupt
13 Not used Not used
(~)
14 Not used Not used
15 Received data bit Received data bit
1 Device has subdevice addressing capability. See the I/O microinstructions description under Microinstructions in this section.
Microinstructions
C-"
