IBM 5100 User Manual

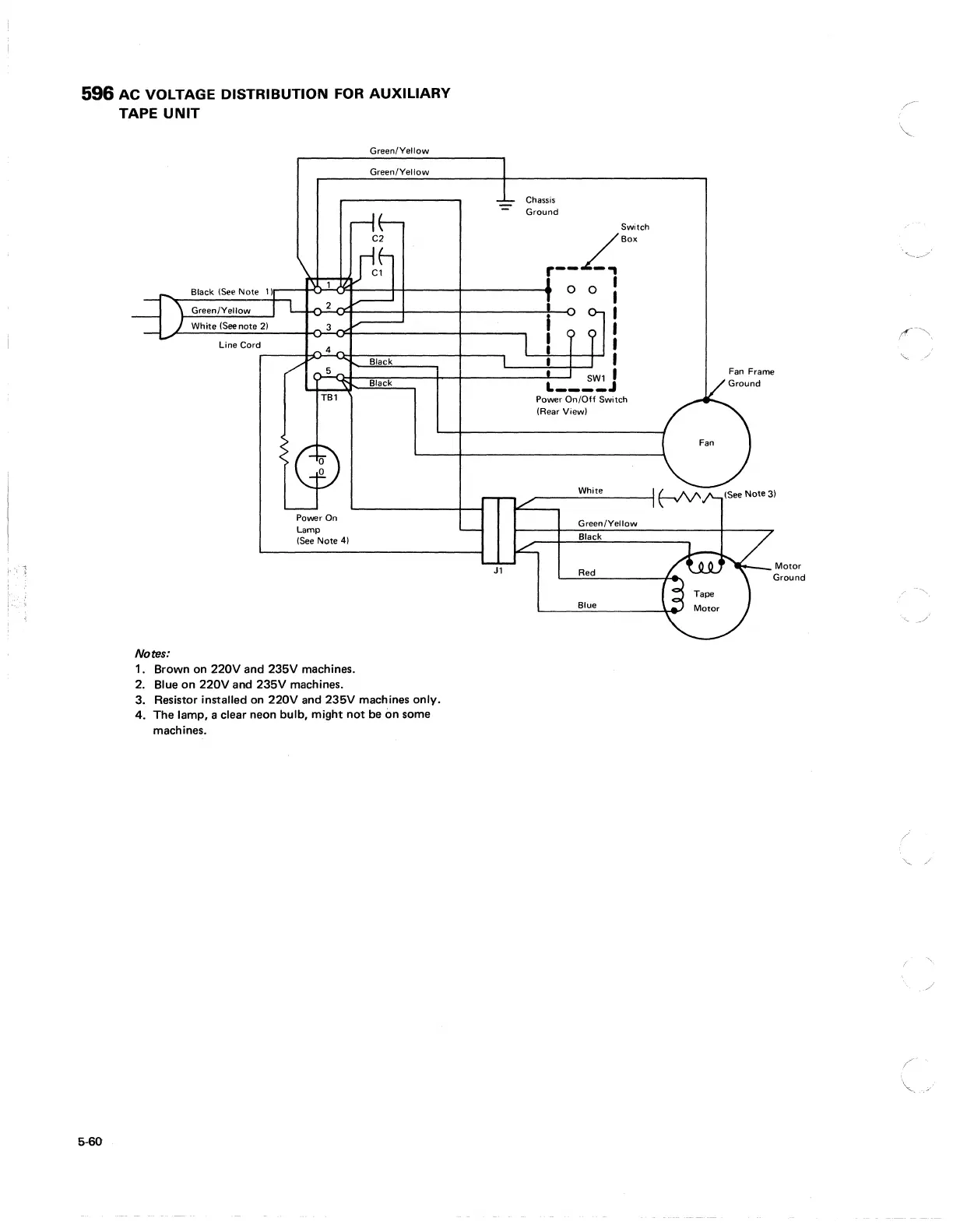

596 AC VOLTAGE DISTRIBUTION FOR AUXILIARY
TAPE
UNIT
Green/Yellow
Green/Yellow
C2
Chassis
Ground
Switch
/BOX
r--
L
.,
Black (See Note lr--+OO.l....(,q---II-+----If------ ...
00
1
I
5-60
GreenlYeliow
White
(See note 2)
Line Cord
Notes:
Power On
Lamp
(See Note 4)
1. Brown on 220V and 235V machines.
2. Blue on 220V and 235V machines.
3. Resistor installed on
220V and 235V machines only.
4. The lamp, a clear neon bulb, might not be on some
machines.
Jl
I
I
I
I
SWI I
L ____ J
Power On/Off Switch
(Rear View)
White
Green/Yellow
Black
Red
Blue
Fan Frame
Motor
Ground
'-...c .... /
/
/
