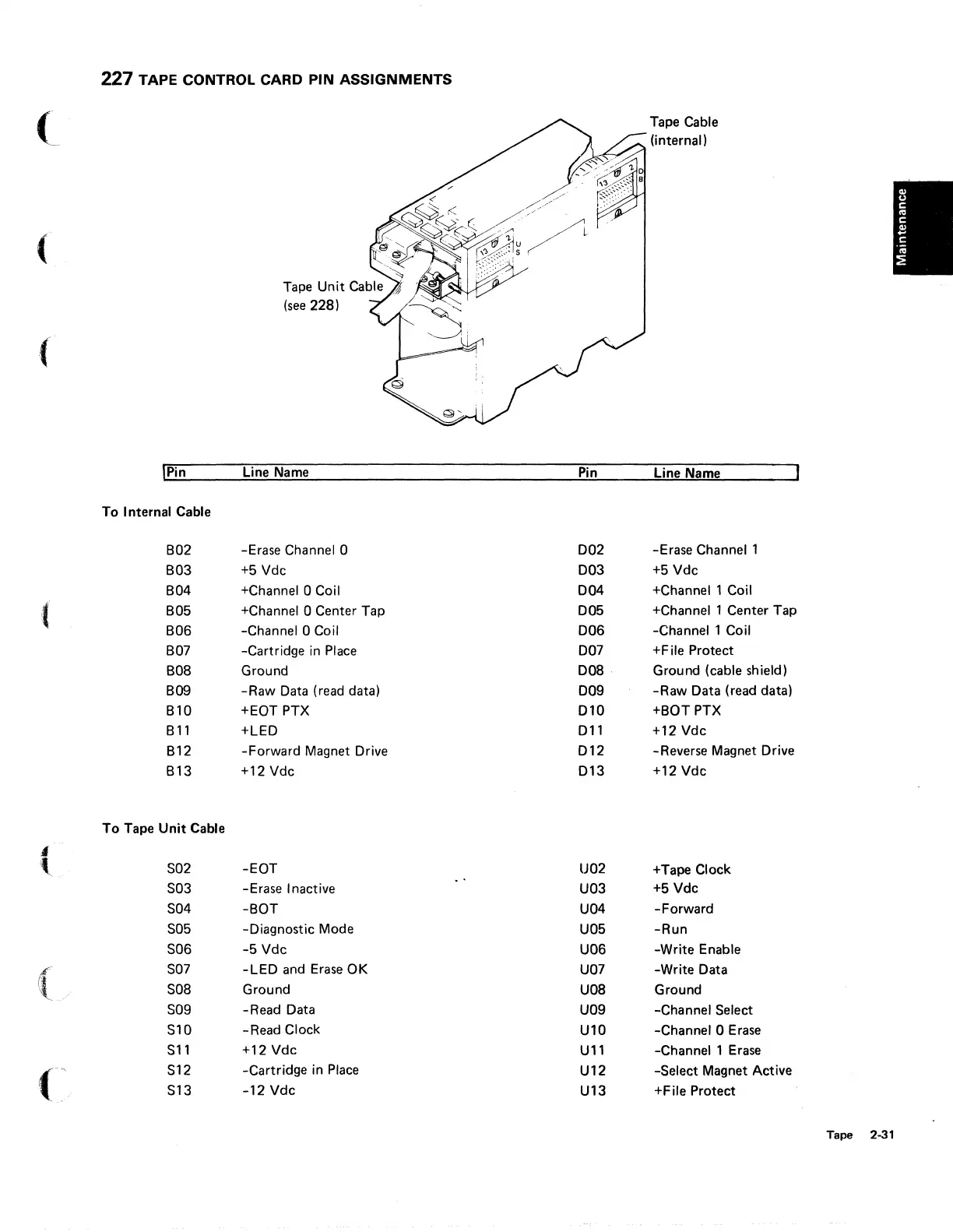

227 TAPE CONTROL CARD PIN ASSIGNMENTS
(
(
(
!pin
Line
Name
To Internal Cable
B02 -Erase Channel 0
B03
+5 Vdc
B04
+Channel 0 Coil
,(
B05
+Channel 0 Center Tap
B06 -Channel 0 Coil
B07 -Cartridge in
Place
B08
Ground
BOO -Raw Data (read data)
Bl0 +EOT PTX
B
11 +LED
B12 -Forward Magnet Drive
B13
+12Vdc
To Tape Unit Cable
.I
\
S02 -EaT
S03 -Erase Inactive
S04
-BOT
S05 -Diagnostic Mode
S06
-5 Vdc
(/
S07
-LED and Erase OK
S08 Ground
S09
-Read Data
S10
-Read Clock
S11
+12 Vdc
(-~/
S12 -Cartridge in Place
S13
-12 Vdc
Pin
D02
D03
D04
D05
D06
D07
D08
D09
Dl0
D11
D12
D13
U02
U03
U04
U05
U06
U07
U08
U09
U10
U11
U12
U13
Tape Cable
(internal)
Line Name
-Erase
Channell
+5 Vdc
+Channel 1 Coil
+Channel 1 Center Tap
-Channell Coil
+F ile Protect
Ground (cable shield)
-Raw Data (read data)
+BOT PTX
+12Vdc
-Reverse Magnet Drive
+12
Vdc
+Tape Clock
+5Vdc
-Forward
-Run
-Write Enable
-Write Data
Ground
-Channel Select
-Channel 0
Erase
-Channel 1 Erase
-Select Magnet Active
+File Protect
Tape
2-31
