IBM 5100 User Manual

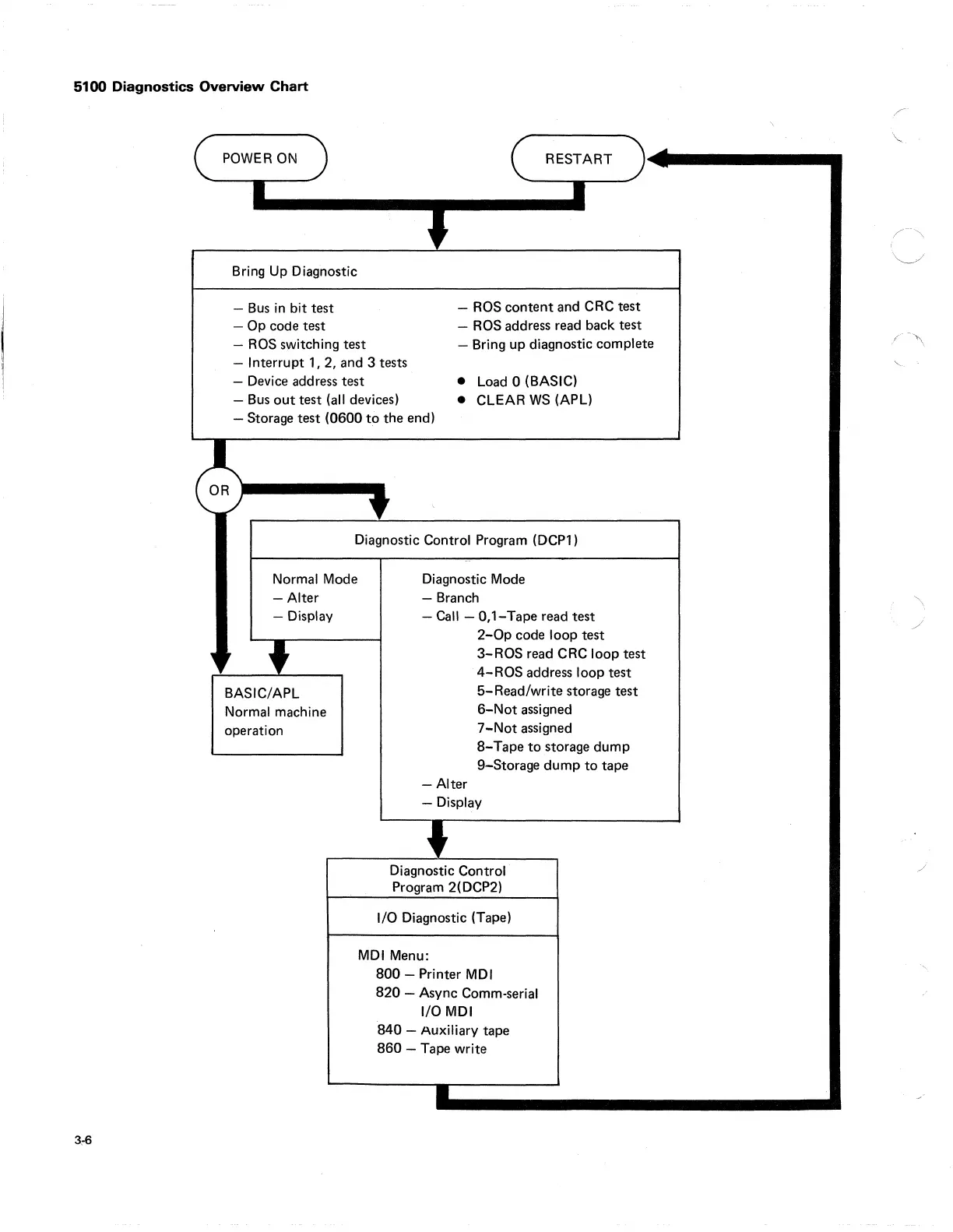

5100 Diagnostics Overview Chart
POWER ON
RESTART
•
•
Bring Up Diagnostic
-
Bus in bit test
- ROS
content and CRC test
- Op code test - ROS address read back test
- ROS switching test
- Bring
up diagnostic complete
- Interrupt 1, 2, and 3 tests
- Device address test • Load 0 (BASIC)
-
Bus out test (all devices)
• CLEAR
WS (APL)
- Storage
test (0600 to the end)
Diagnostic Control Program (DCP1)
Normal Mode
- Alter
- Display
, t
BASIC/APL
Normal machine
operation
Diagnostic Mode
- Branch
-
Call - 0,1- Tape read test
- Alter
2-0p code loop test
3-ROS read CRC loop test
4-ROS address loop test
5-Read/write storage test
6-Not assigned
7-Not aSSigned
8- Tape to storage dump
9-Storage dump to tape
- Display
Diagnostic Control
Program 2(DCP2)
I/O Diagnostic (Tape)
MDI Menu:
800 - Printer MDI
820 - Async Comm-serial
I/OMDI
840 - Auxiliary tape
860 - Tape write
•
\"
I
\~
/
'\
j
