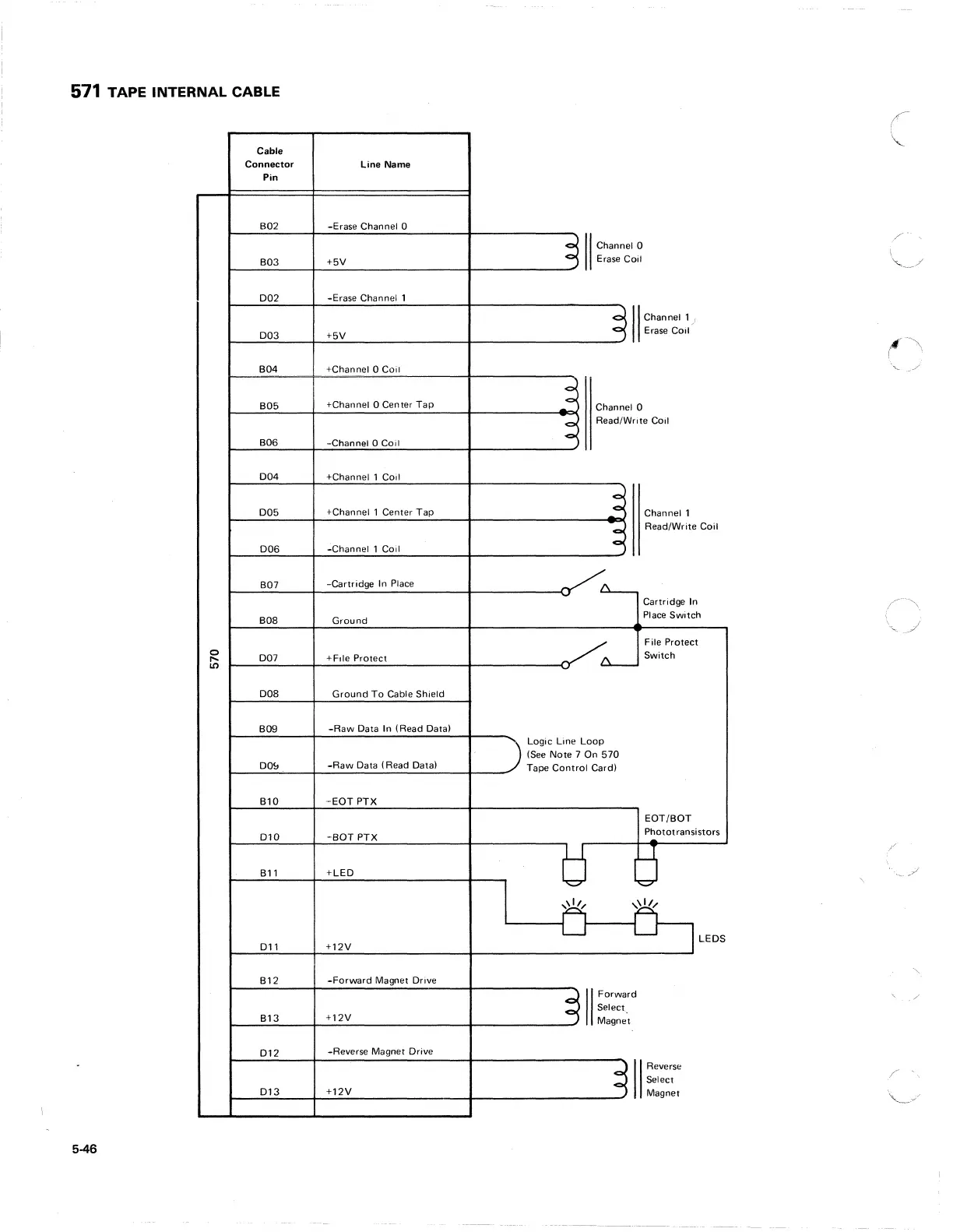

571 TAPE INTERNAL CABLE
Cable
Connector line Name
Pin
B02
-Erase Channel 0
B03
+5V
D02
-Erase Channell
D03
+5V
B04 +Channel 0 Coil
B05
+Channel 0 Center Tap
BOG
-Channel 0 Coil
D04
+Channel 1 Coil
D05
+Channel 1 Center Tap
DOG
-Channell Coil
B07
-Cartridge In Place
B08
Ground
0
D07 +Flle Protect
....
LtI
DOS Ground To Cable Shield
BOO
-Raw Data In (Read Data)
DO~
-Raw Data (Read Data)
Bl0
-EaT PTX
Dl0 -BOT PTX
Bll +LED
I
Dll +12V
B12
-Forward Magnet Drive
B13
+12V
D12
-Reverse Magnet Drive
D13 +12V
5-46
~ II Channel 0
Erase
Coil
~ II Channell)
Erase COIl
~
coo
Channel 0
::
Read/Wnte COil
::
Channell
-
....
Read/Write Coil
....
~
Cartridge In
Place Switch
File Protect
~
Switch
~
Logic Line Loop
(See Note 7 On 570
Tape Control Card)
EaT/BOT
Phototransistors
tj
,\1,,,
~
LEDS
~ II Forward
Select.
Magnet
~ II Reverse
Select
Magnet
./
I,
,._./
