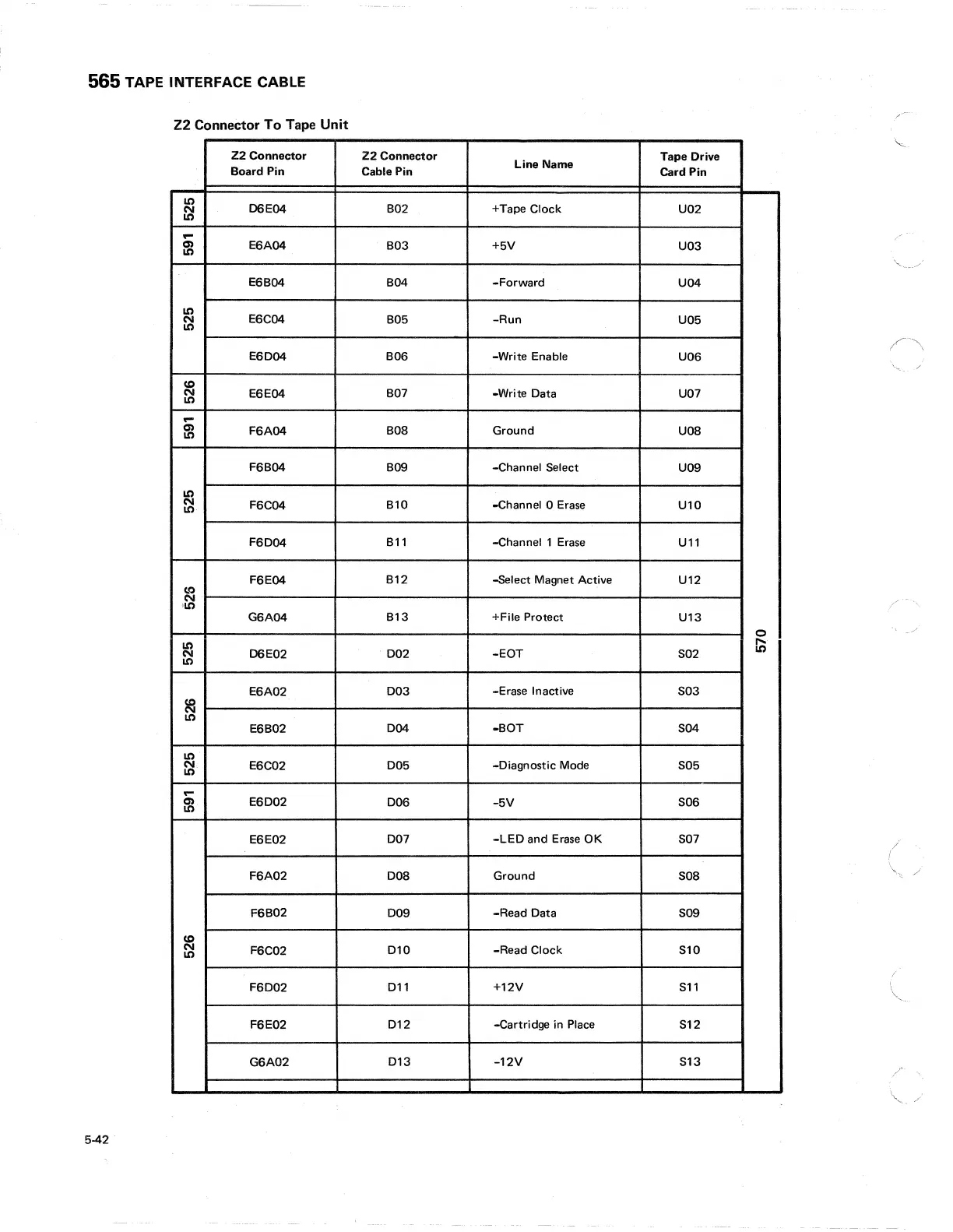

IBM 5100 User Manual

565 TAPE INTERFACE CABLE
Z2 Connector To Tape Unit
Z2 Connector Z2 Connector
Line Name
Tape Drive
Board Pin
Cable Pin
Card Pin
It)
D6E04 B02 +Tape Clock
U02
N
It)
...
~
E6A04
B03
+5V
U03
\...... ,/'
E6B04 B04 -Forward
U04
It)
E6C04
N
B05
-Run
U05
It)
E6004 B06 -Write Enable
U06
CD
N
E6E04
B07 -Write Data
U07
It)
...
en
F6A04
B08 Ground
U08
It)
F6B04
BOO
-Channel Select
U09
It)
~
F6C04
B10 -Channel 0
Erase
U10
F6004
B11 -Channel 1 Erase
U11
F6E04
B12 -Select Magnet Active
U12
CI)
N
lit)
/
G6A04
B13 +File Protect
U13
Q
It)
D6E02 002
-EOT
S02
G;
N
It)
E6A02
003
-Erase Inactive
S03
~
It)
E6B02
004 -BOT S04
It)
N.
E6C02
005
-Diagnostic Mode
S05
It)
...
~
E6002
006
-5V
S06
E6E02
007
-LED and Erase OK
S07
F6A02 008
Ground
S08
/
F6B02
009
-Read Data
S09
CD
N
F6C02
010 -Read Clock S10
It)
F6002
011 +12V S11
F6E02 012
-Cartridge in Place
S12
G6A02
013
-12V S13
5-42
