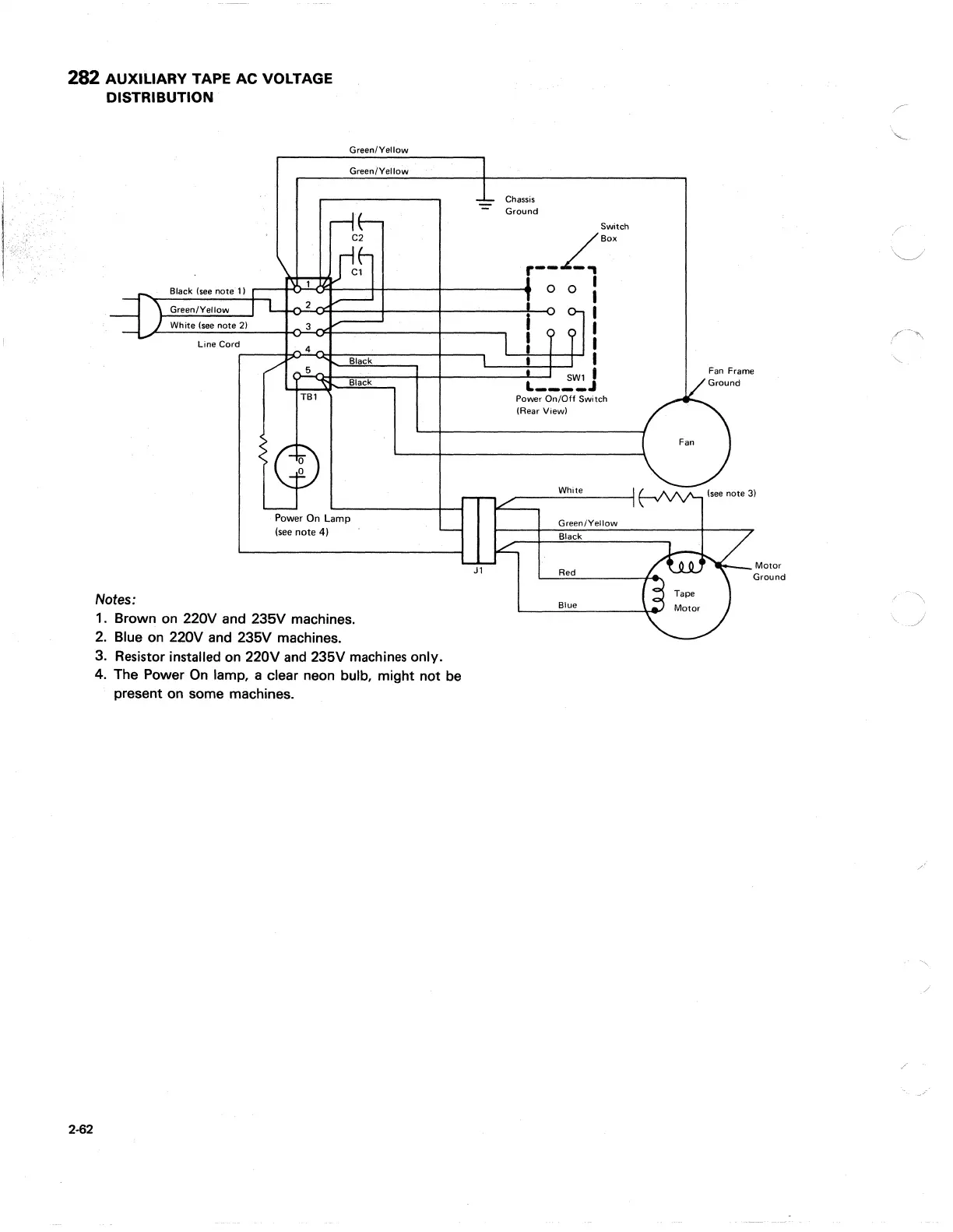

282 AUXILIARY TAPE AC VOLTAGE
DISTRIBUTION
GreenlYeliow
Green/Yellow
C2
Chassis
Ground
Switch
/BOX
r--
L
,
Black (see note
1)
r--~>-l...(j4---H----+-----""
o 0 I
I
2·62
Green/Yellow
White (see note
2)
Line Cord
r---4£~~~~-----+---,
Notes:
Power On Lamp
(see note
4)
1. Brown on 220V and 235V machines.
2.
Blue on 220V and 235V machines.
3. Resistor installed on 220V
and
235V machines only.
4. The Power
On
lamp, a clear neon bulb, might not be
present on some machines.
Jl
I
I
I
I
SWI
t
L
____
J
Power On/Off Switch
(Rear View)
White
Green/Yellow
Black
Red
Blue
Fan Frame
Ground
Motor
Ground
/
"'\
\
..
~
./
./
/
To Next Page
