IBM 5100 - Power; AC Power Box

Power
The 5100 operates with any of the following five
single-phase AC power sources:
• 60
Hz
- 100 Vac
- 115 Vac
• 50
Hz
I
a
II
- 100 Vac
- 220 Vac
- 235 Vac
Line Filter
(L 1 )
AC Capacitors
(C1, C2)
Fuse Holder (F1)
Line Cord
4-50

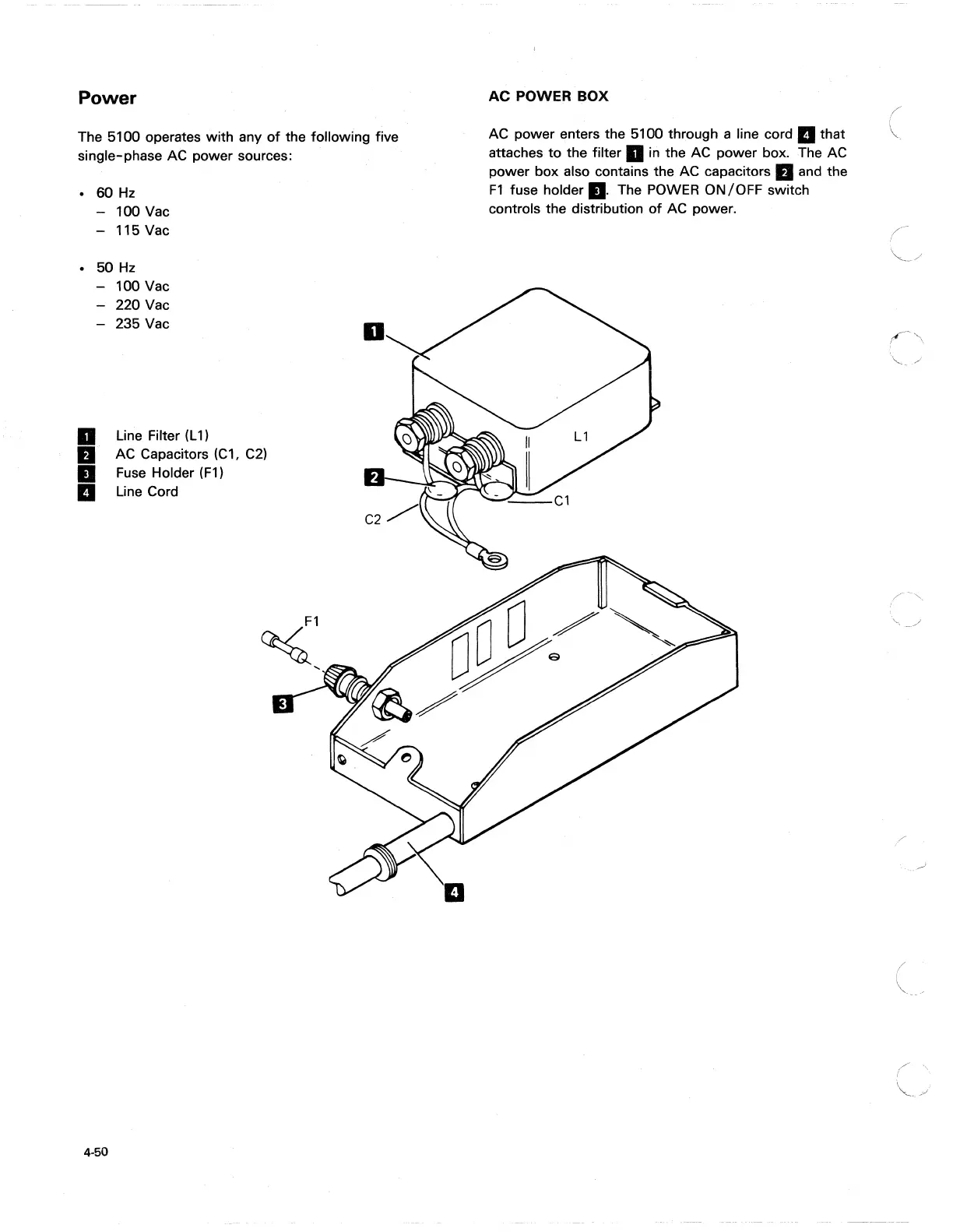

AC POWER BOX
AC power enters the 5100 through a line cord II that
attaches
to the filter. in the AC power box. The AC
power box also contains the AC capacitors
II and the
F1 fuse holder a. The POWER ON/OFF switch
controls the distribution
of AC power.
