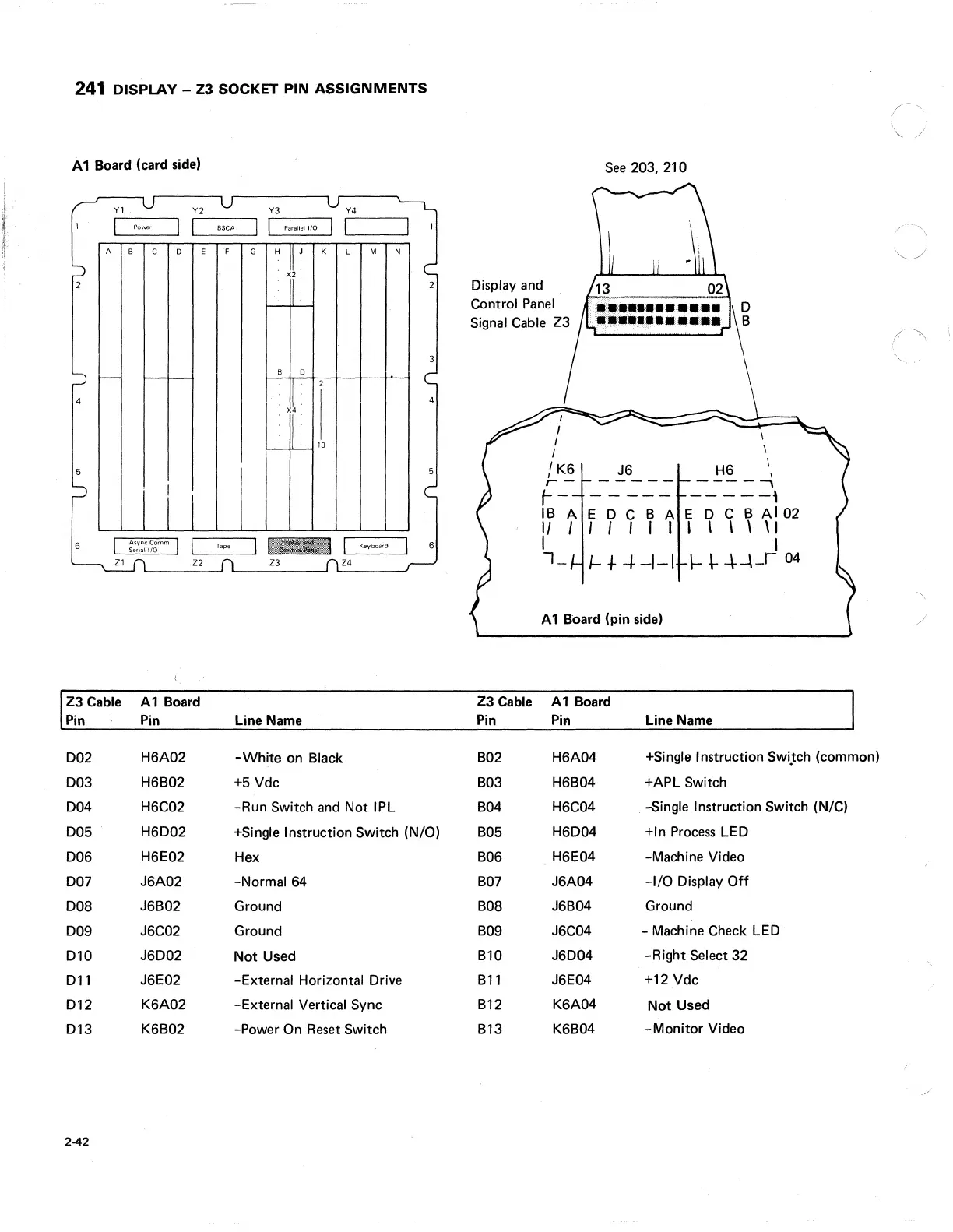

241 DISPLAY - Z3 SOCKET PIN ASSIGNMENTS
A1 Board (card side)
r-'
Yl
Y2 Y3 Y4
1
I
Power
I I
BSCA
I
I
Parallel 1/0
I
I
I
1
A
B C D
E F
G
Ht
K
L
M
N
X2
2 2
3
B
D
-
2
4
4
X4
13
5
5
I I
6
l
~:~~~ ,7~mm I
I
Tape
I
I
Kevboard
I
6
~
Z2
n
Z3 Z4
r--
Z3 Cable A1 Board
Pin Pin
Line Name
D02
H6A02
-White on Black
D03
H6B02
+5 Vdc
D04
H6C02 -Run Switch
and Not IPL
D05 H6D02
+Single Instruction Switch (N/O)
D06
H6E02
Hex
D07
J6A02
-Normal
64
D08
J6B02
Ground
D09
J6C02
Ground
D10
J6D02
Not Used
011
J6E02 -External Horizontal Drive
012
K6A02
-External Vertical Sync
013 K6B02 -Power On Reset Switch
2-42
See 203, 210
Display
and
Control Panel
Signal Cable Z3
Z3
Cable
Pin
B02
B03
B04
B05
B06
B07
B08
B09
B10
B11
B12
B13
I
I
I
/ K6 J6 H6 \
,- ----- ----,
r - - - -- - -- - - -i
I B A E D C B A E D C B A I 02
1/ I I I , I I I \ \ \ \ I
I I
-, - J- t -+ -1-1 ~ \- -\--\_r 04
A 1 Board (pin side)
A1 Board
Pin Line Name
H6A04
+Single Instruction Swi;ch (common)
H6B04 +APL Switch
H6C04
-Single Instruction Switch (N/C)
H6D04 +In
Process LED
H6E04 -Machine Video
J6A04
-I/O Display Off
J6B04 Ground
J6C04 - Machine Check LED
J6004 -Right Select 32
J6E04 +12 Vdc
K6A04
Not Used
K6B04
-Monitor Video
