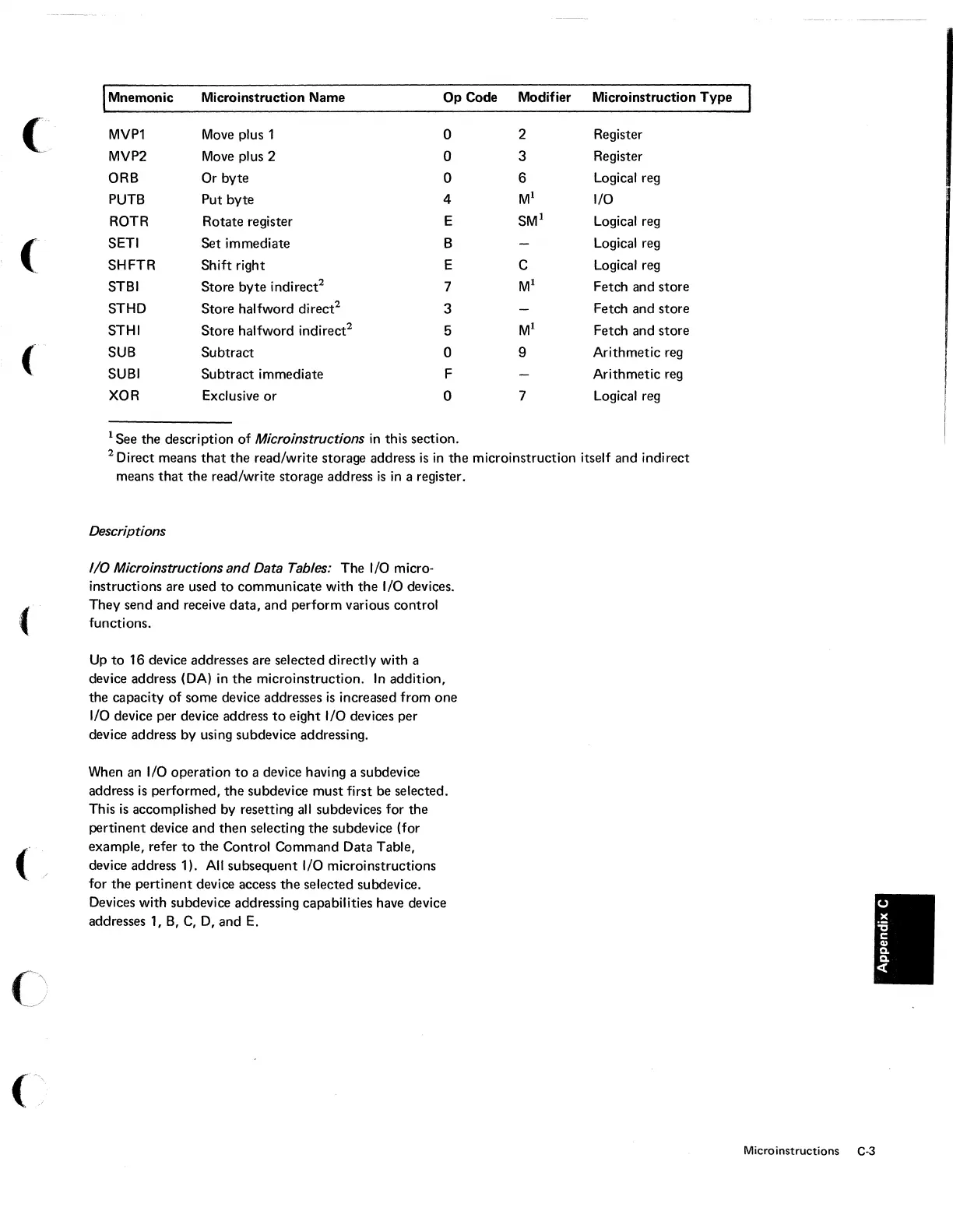

Mnemonic Microinstruction Name Op Code
Modifier Microinstruction
Type
MVP1
Move
plus 1
0
2 Register
MVP2
Move
plus 2
0
3 Register
ORB
Or byte
0 6
Logical reg
PUTB
Put byte
4
Ml
I/O
ROTR Rotate register
E
SM
l
Logical reg
SETI Set immediate
B
Logical reg
SHFTR Shift right E
C
Logical reg
STBI Store byte indirect
2
7
Ml
Fetch and store
STHD Store halfword direct
2
3
Fetch and store
STHI
Store halfword indirect
2
5
Ml
Fetch and store
SUB
Subtract
0
9
Arithmetic reg
SUBI
Subtract immediate
F Arithmetic reg
XOR
Exclusive
or
0
7 Logical reg
1 See the description of Microinstructions
in
this section.
2 Direct means
that
the
read/write storage address
is
in
the
microinstruction itself and indirect
means
that
the
read/write storage address
is
in
a register.
Descriptions
I/O
Microinstructions and
Data
Tables:
The I/O micro-
instructions are used
to
communicate with
the
I/O devices.
They send and receive data, and perform various control
functions.
Up
to
16 device addresses are selected directly with a
device address (DA)
in
the microinstruction.
In
addition,
the capacity of some device addresses
is
increased from one
I/O device per device address
to
eight I/O devices per
device address by using subdevice addressing.
When an I/O operation
to
a device having a subdevice
address
is
performed,
the
subdevice must first be selected.
This
is
accomplished by resetting
all
subdevices for the
pertinent device and then selecting the subdevice (for
example, refer
to
the Control Command Data Table,
device address 1).
All
subsequent I/O microinstructions
for the pertinent device access
the
selected subdevice.
Devices with subdevice addressing capabilities have device
addresses 1,
B, C,
D,
and
E.
Microinstructions
C-3
