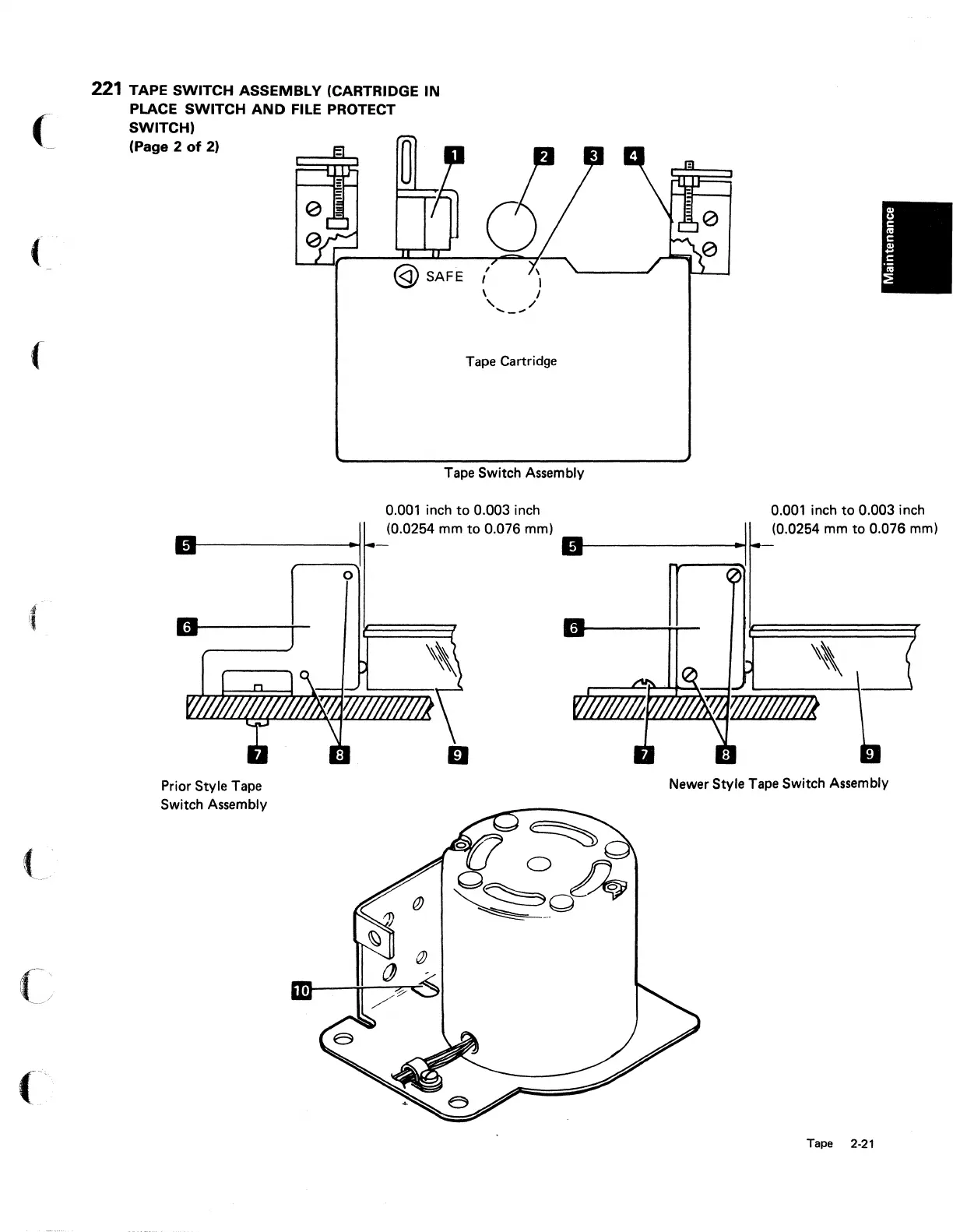

221 TAPE SWITCH ASSEMBLY (CARTRIDGE IN
PLACE SWITCH AND FILE PROTECT
SWITCH)
(Page 2 of 2)
11'----------+-1·1
Prior Style Tape
Switch Assembly
o
@SAFE
,
I I
\ I
, /
.... _ ....
Tape Cartridge
Tape Switch Assembly
0.001 inch
to 0.003 inch
(0.0254 mm
to 0.076 mm)
0.001 inch
to 0.003 inch
(0.0254 mm
to 0.076 mm)
Newer Style Tape Switch Assembly
Tape 2-21
