IBM 5100 User Manual

(
(
271

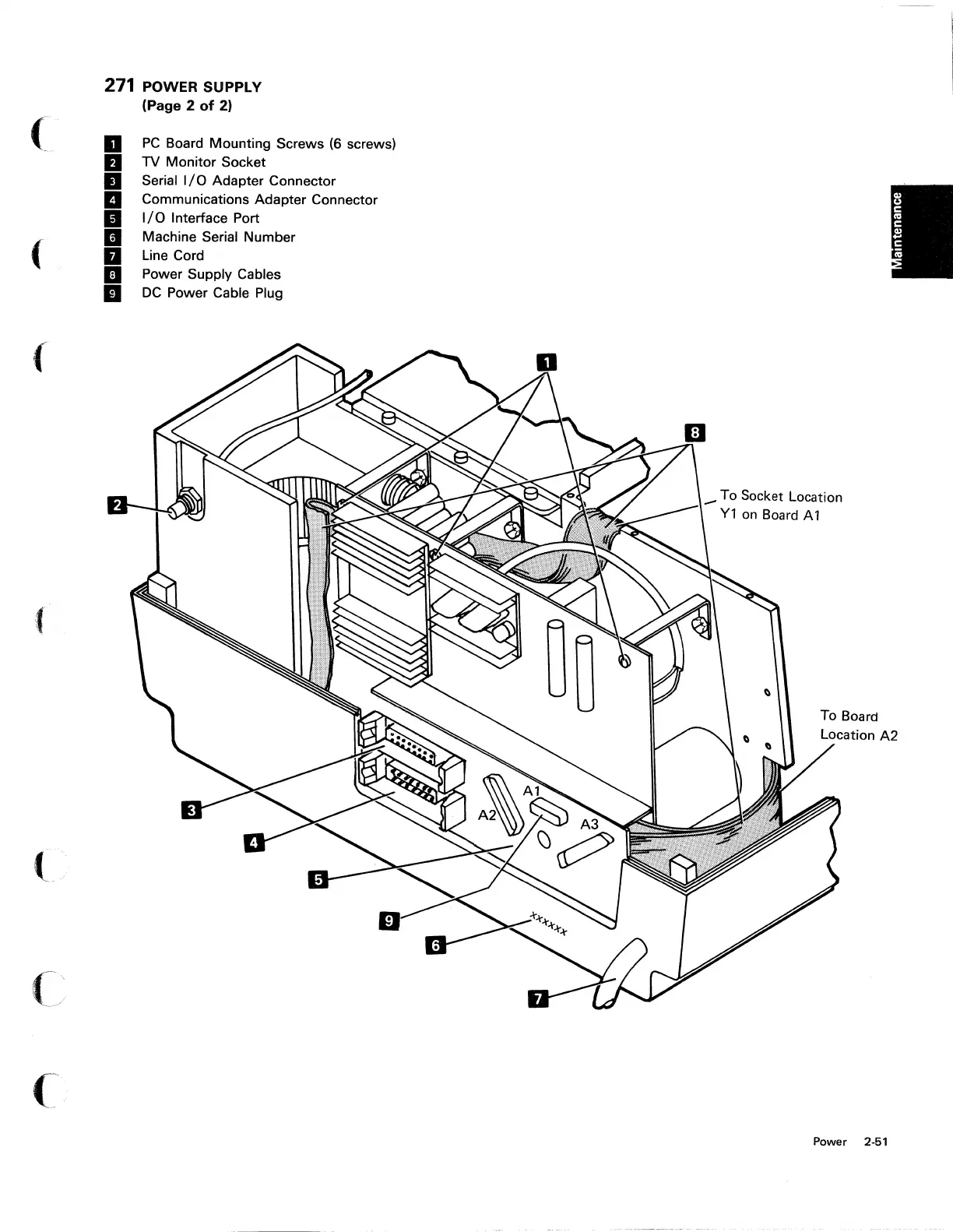

POWER SUPPLY
(Page 2
of
2)
..
PC
Board Mounting Screws
(6
screws)
II
TV Monitor Socket
• Serial
I/O
Adapter Connector
II
Communications Adapter Connector
II
I/O
Interface Port
II
Machine Serial Number
D
Line Cord
II
Power Supply Cables
II
DC
Power Cable Plug
_ To Socket Location
Yl
on
Board A 1
To
Board
Power 2-51
