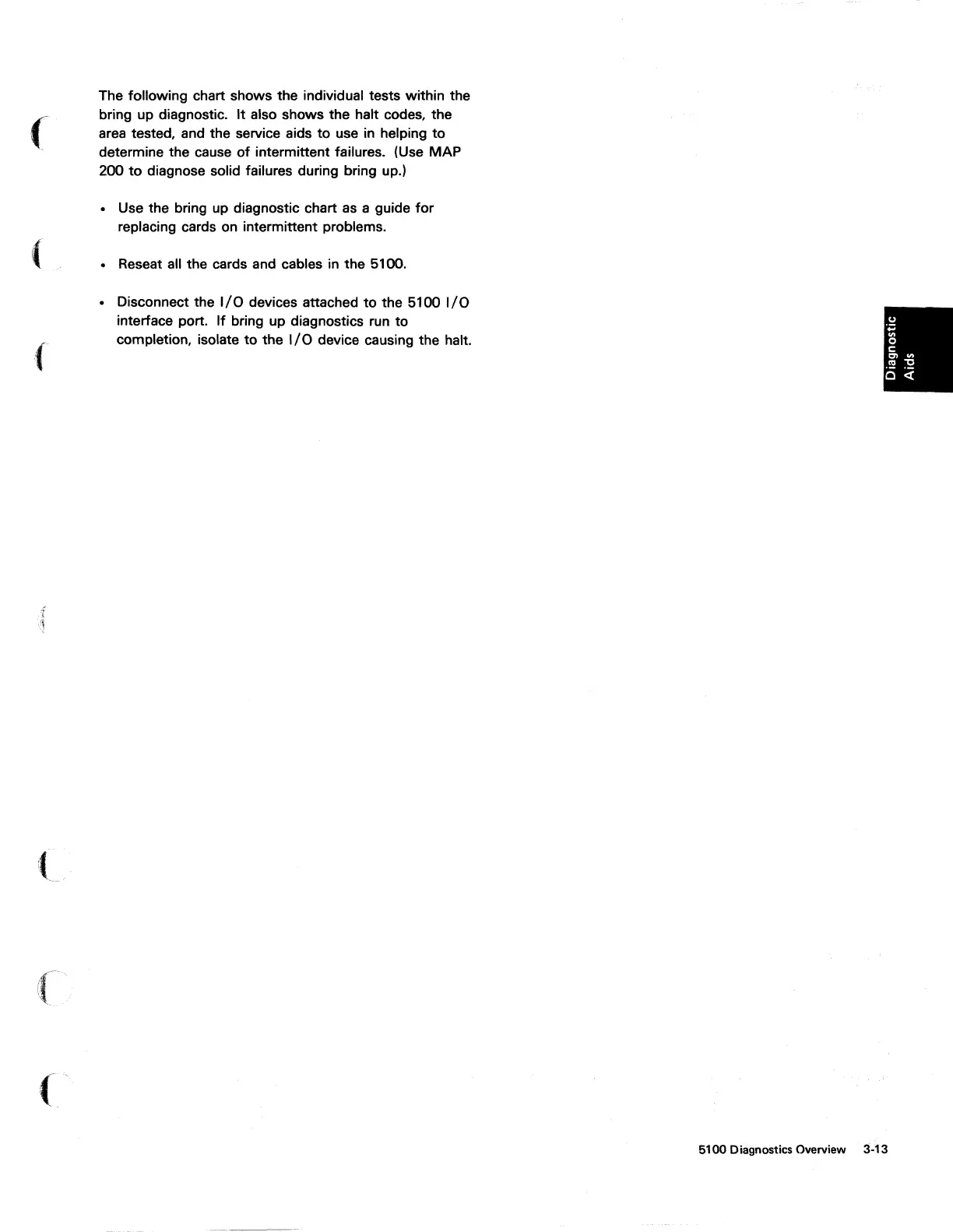

The following chart shows the individual tests within the
bring up diagnostic.
It
also shows the halt codes, the
area
tested, and the service aids
to
use in helping
to
determine the cause
of
intermittent failures. (Use MAP
200
to
diagnose solid failures during bring up.)
• Use the bring up diagnostic chart
as
a guide
for
replacing cards on intermittent problems.
• Reseat all the cards and cables in the 5100.
• Disconnect the
I/O
devices attached
to
the 5100
I/O
interface port.
If
bring up diagnostics run
to
completion, isolate
to
the
I/O
device causing the halt.
5100 Diagnostics Overview 3·13
