Chapter 11. Administration - Mappings Tab 293
Draft Document for Review March 28, 2011 12:24 pm 7914Admin_Mappings.fm
1. Right-click Default Group or any unmapped host or host group icon in Topology tree below
the Default Group (Figure 11-14). Then select Define ï‚®ï€ Storage Partitioning. The
Storage Partitioning wizard will lead you through the process. Note that an unmapped
logical drive must exist to start this wizard.

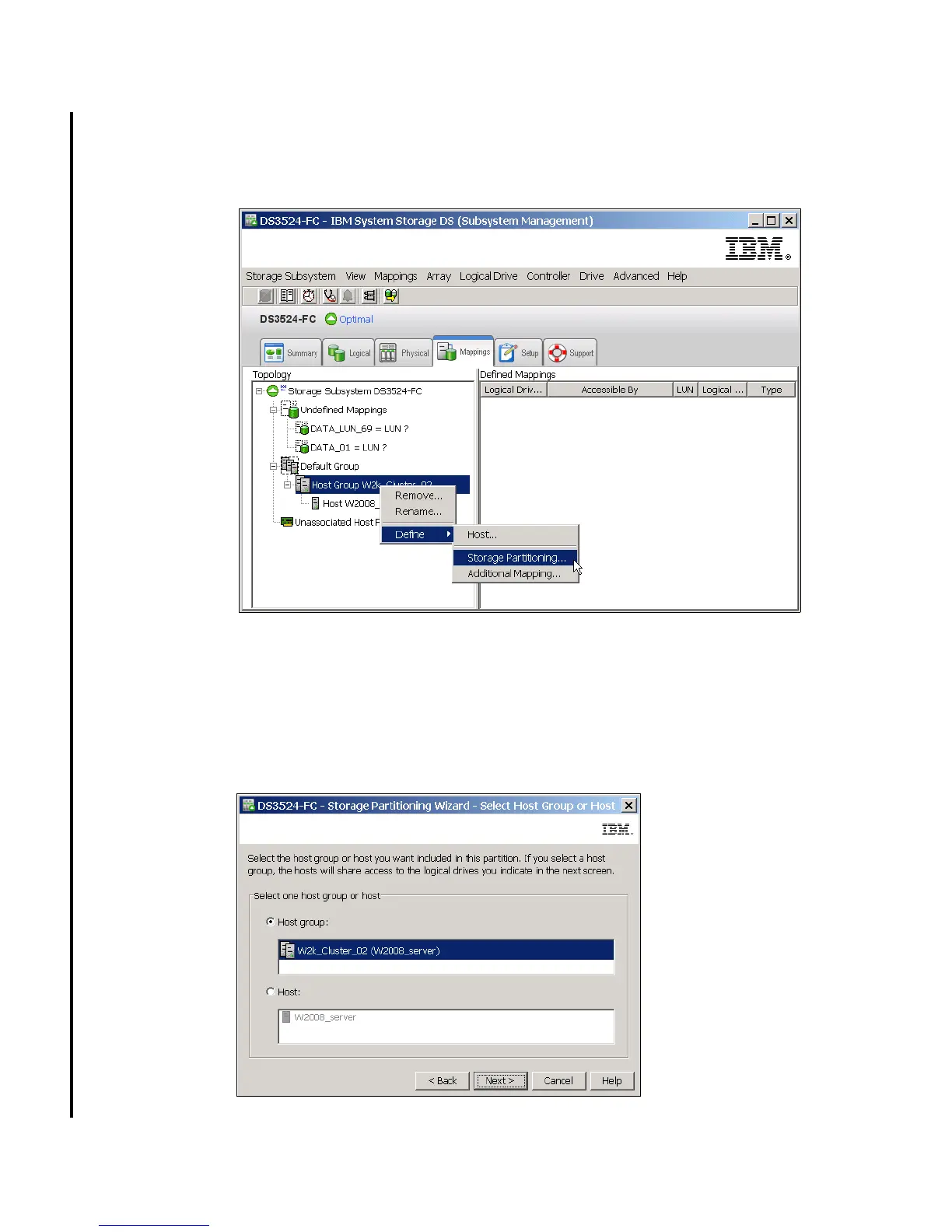

Figure 11-14 Storage Partitioning menu
2. After the introductory window, the wizard asks you to select either a host or a host group
(Figure 11-15). If you are creating a storage partition for clustered host servers, you need
to specify the appropriate host group; otherwise, you can select an individual host. In this
window, you can only see hosts and host groups with no logical drives mapped. If you
selected some host or host group before you started Storage Partitioning wizard, it is
already selected in this window.
Figure 11-15 Storage Partitioning - select Host or Host Group
