VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

672 IBM System Storage DS3500: Introduction and Implementation Guide

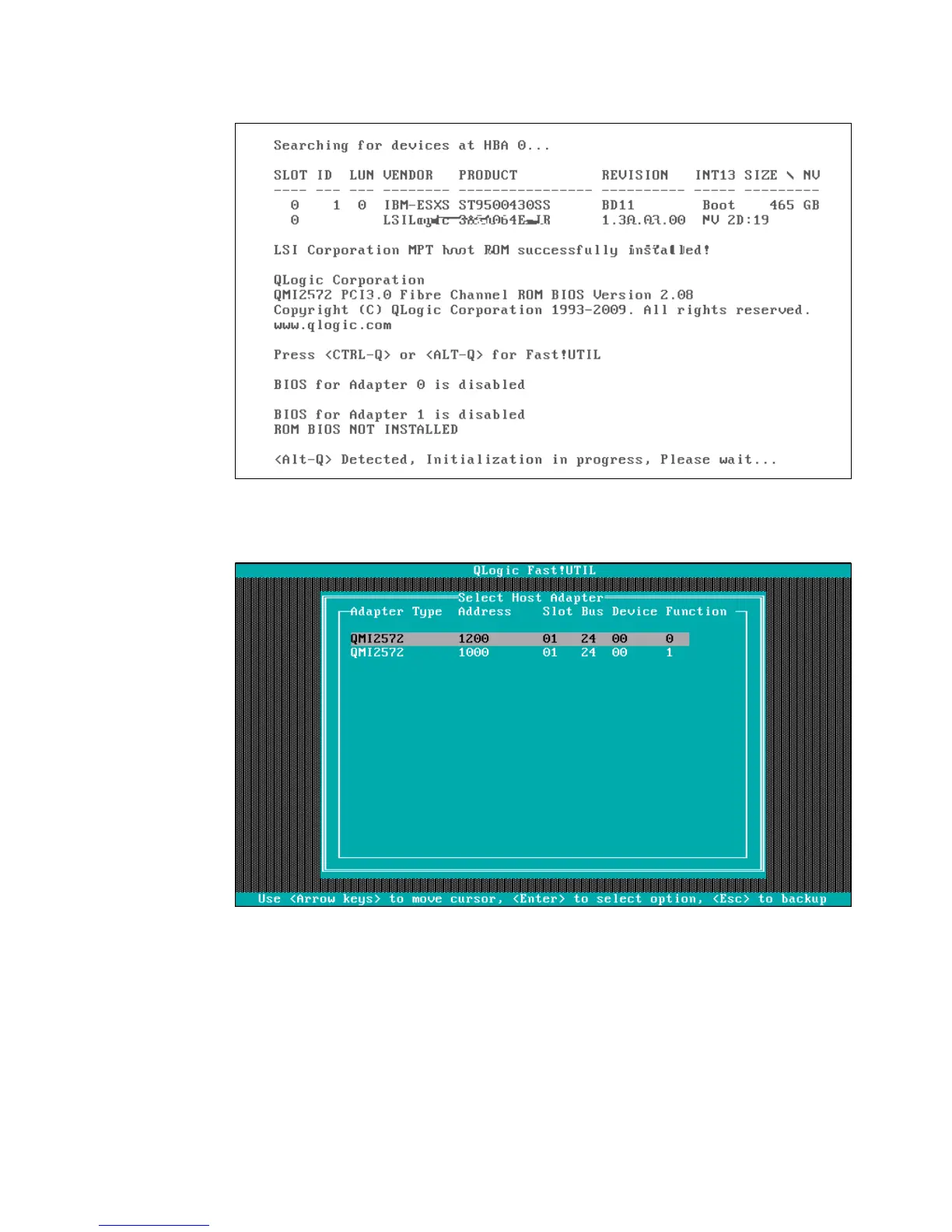

Figure 22-5 Press CTRL + Q or ALT + Q to get Qlogic Fast!UTIL Menu

2. Select the first QLogic card entry. Press Enter, as shown in Figure 22-6.

Figure 22-6 Selecting HBA adapter

3. In Figure 22-7 on page 673, select Configure Settings for the selected HBA card. Press

Enter.
