Chapter 22. VMware ESX Server and DS3500 Storage Configuration 727

Draft Document for Review March 28, 2011 12:24 pm VMware ESX Server Storage Configuration with

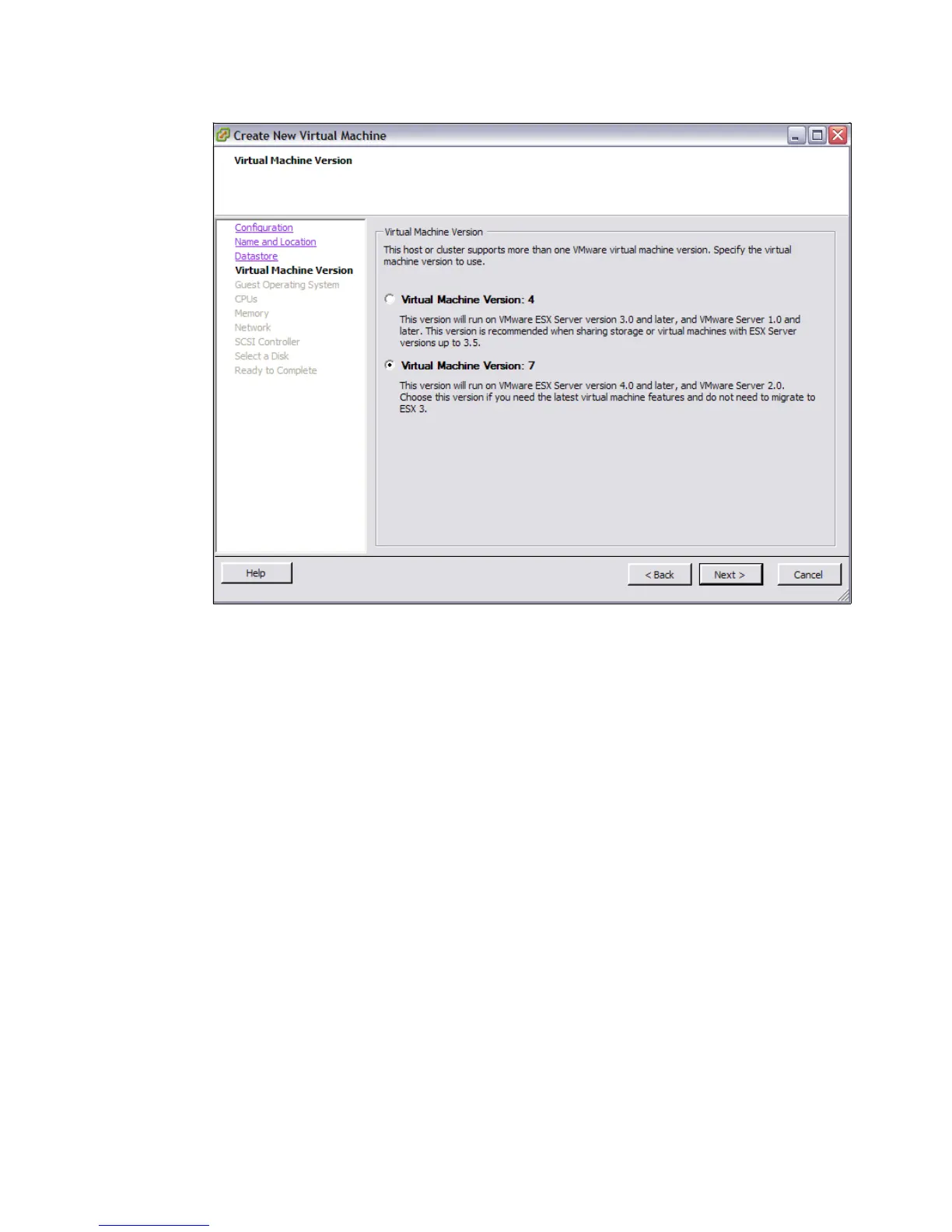

Figure 22-76 Virtual machine version

7. Select the Guest Operating System vendor and the corresponding Version. In our

example, we use Microsoft Windows 2008 R2 64-bit, as shown in Figure 22-77 on

page 728. Click Next.
