VMware ESX Server Storage Configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24

728 IBM System Storage DS3500: Introduction and Implementation Guide

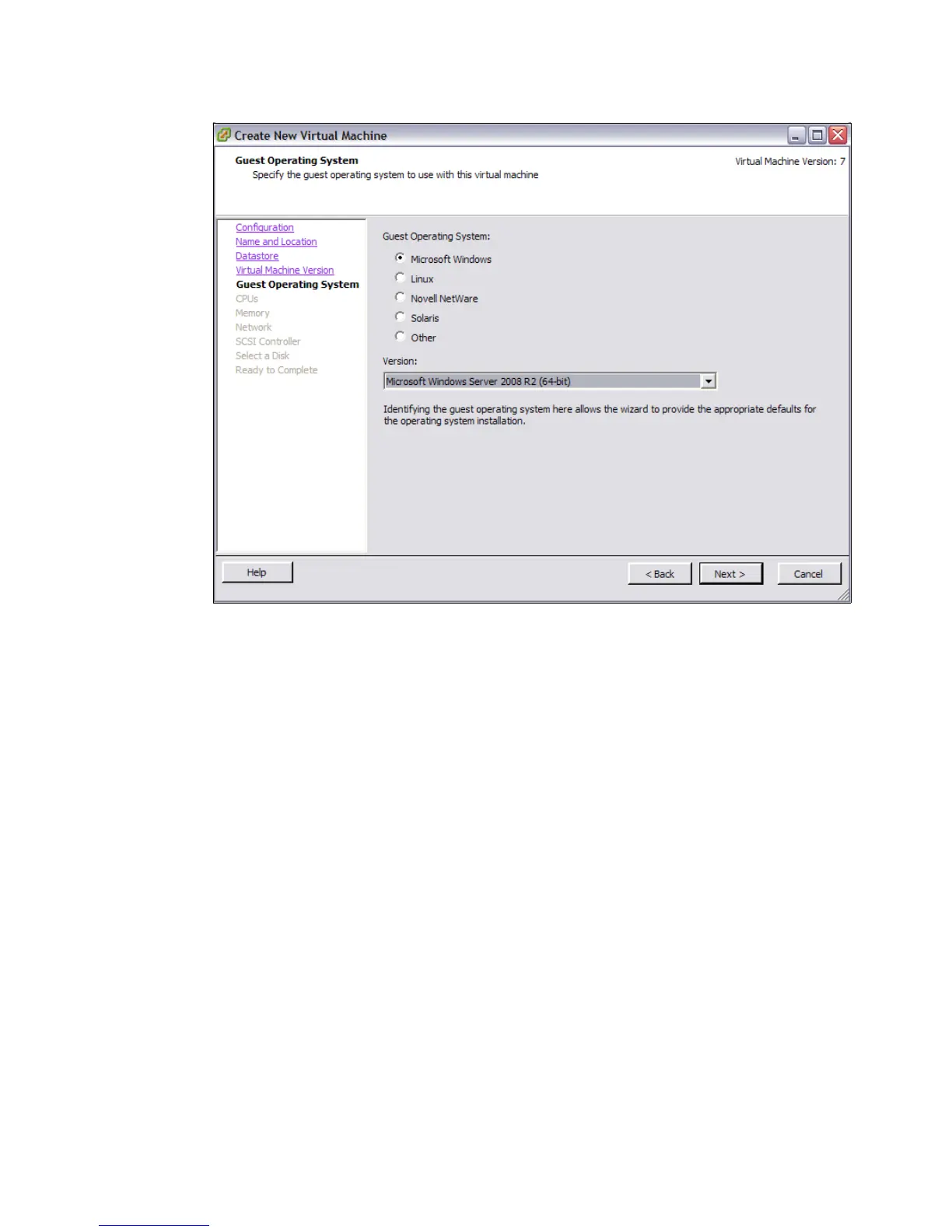

Figure 22-77 Guest Operating System selection

8. On the Number of vCPU, select 1 unless you are requiring Multi-CPU kernel (this has an

impact on the overall performance of the guest), as shown in Figure 22-78 on page 729.

Click Next.
