Chapter 22. VMware ESX Server and DS3500 Storage Configuration 729

Draft Document for Review March 28, 2011 12:24 pm VMware ESX Server Storage Configuration with

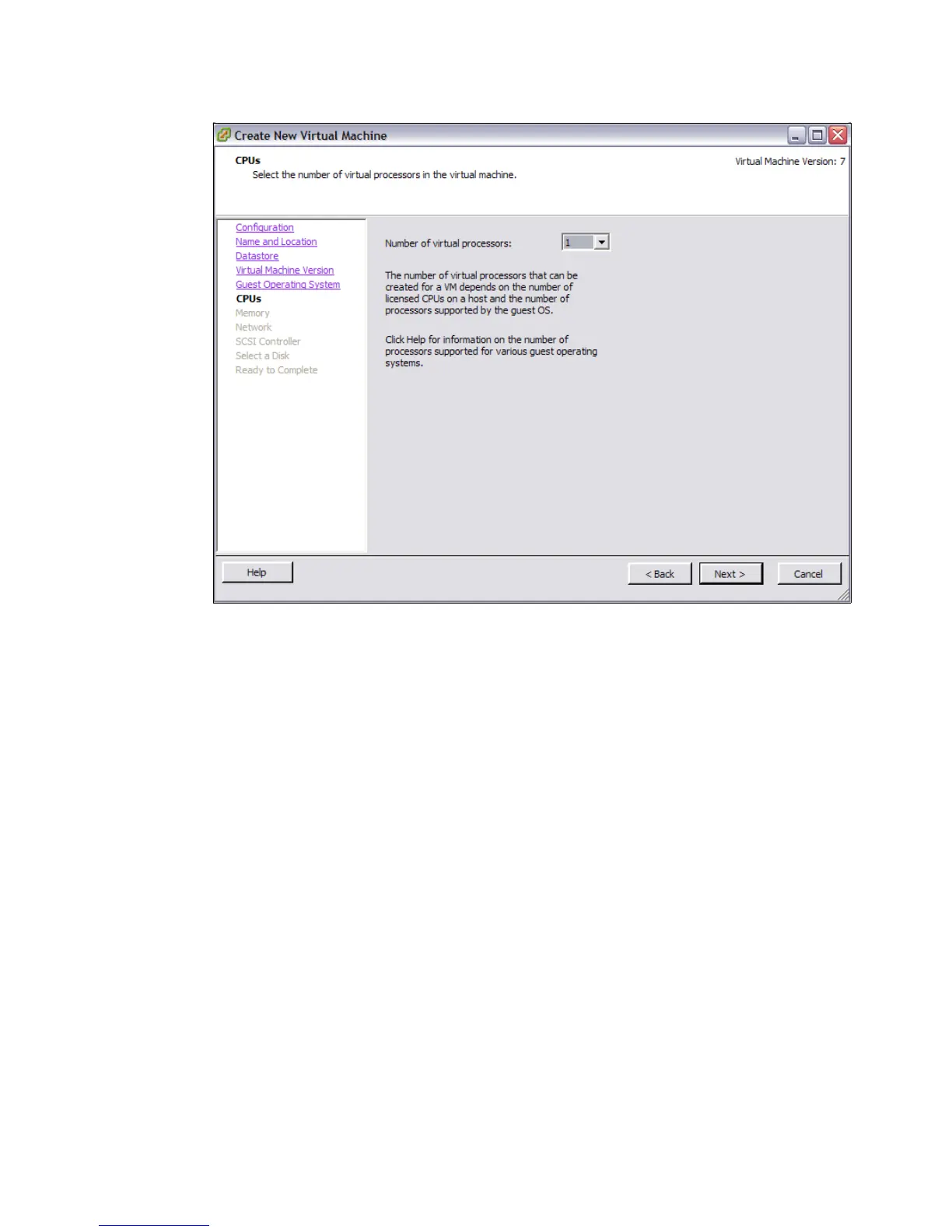

Figure 22-78 vCPU selection

9. On the Memory allocation panel, Figure 22-79 on page 730, provide the guest with the

necessary amount of memory as required. Click Next.
