High-speed link for Model 520
The Model 520 supports a single HSL-2/RIO-G loop. The maximum rated speed
of the HSL-2/RIO-G is 2 Gbps, which is double the speed of the previous
HSL/HSL-2 adapters. The following rules apply to towers that are supported at
these speeds:
򐂰 New #5094, #5294, #0595, and #5095s come with a #9517 HSL-2/RIO-G
adapter. The #5790 PCI Expansion Drawer comes with a #9531
HSL02/RIO-G adapter.
򐂰 HSL-2 adapters in existing #5094, #5294, #0595, and #5095 towers must be
replaced with a #6417 2 GBps HSL-2/RIO-G adapter.
RackInd
T9
Gb
Ethernet
T6
Gb
Ethernet
T5
* Power Supply
E1
* Power Supply
E2
1
T3 [HSL-2/RIO-G]
SPCN 0
C7-T3
SPCN 1
C7-T4
IP
HMC 2
C7 - T2
HMC 1
C7 - T1
0
T4 [HSL-2/RIO-G]
Serial
Port
Serial
Port
USB1
T8
= BASE
* = Hot Plug Capable

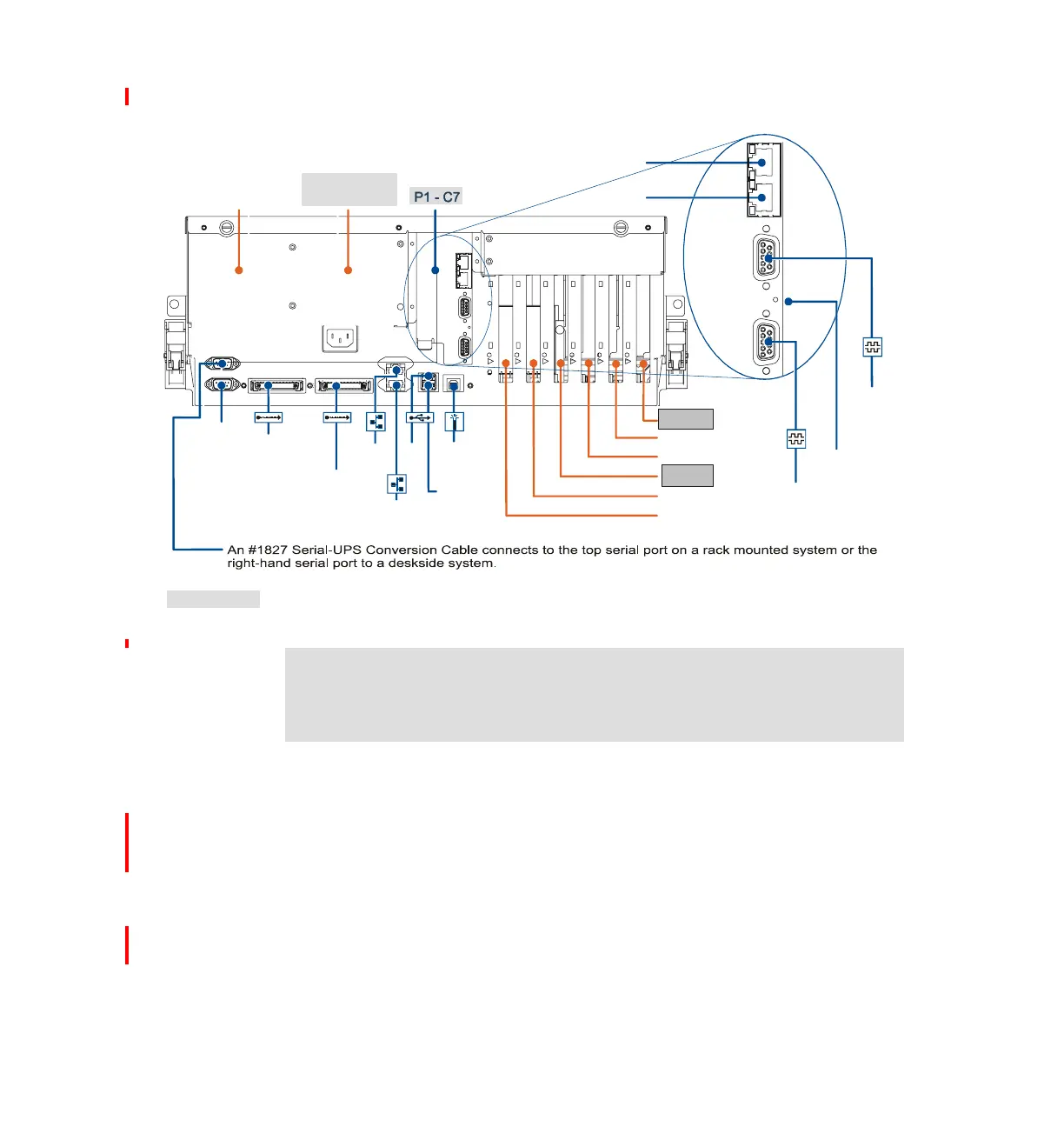

520 Rear Locations
USB0
T7
* P1 - C4
* P1 - C1
* P1 - C6
* P1 - C2
* P1 - C3
* P1 - C5
Note: You can find line cord and power receptacle specification information on
the Web at:
http://www.ibm.com/eserver/iseries/infocenter
