Towers, racks, and high-speed link 283
Draft Document for Review October 18, 2004 5486Towr.fm
#5790 PCI-X Expansion Unit
The #5790 is a rack
mounted, four EIA,
half-wide unit that has 6
full-length 64bit PCI-X
slots requiring four units
of vertical space in the
rack. The #5790 comes
standard with two
redundant power
supplies, dual power cords and hot-plug PCI adapter slots.Blind swap cassettes
are used to enclose and insert each PCI adapter.

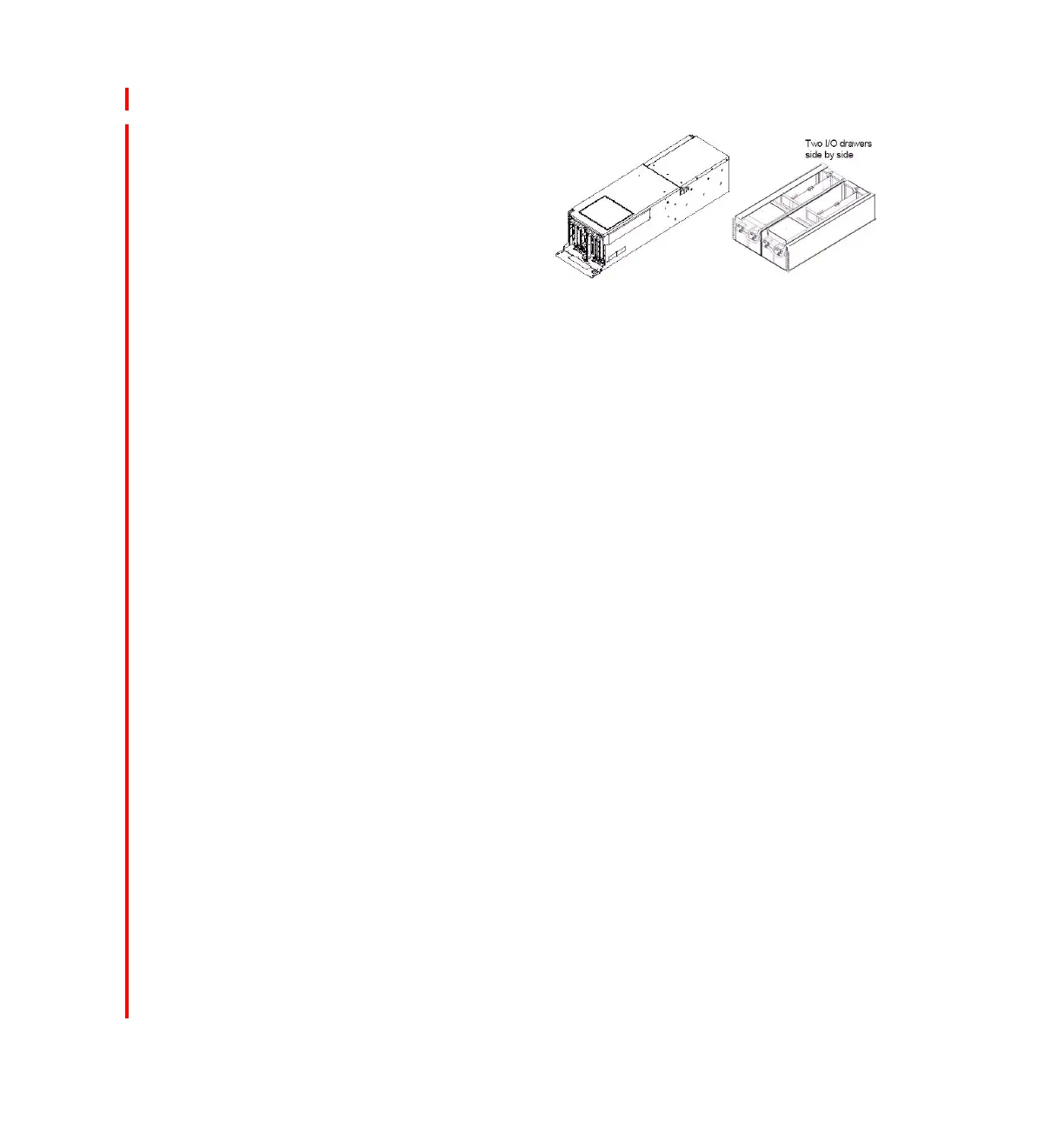

Two #5790 units can fit side by side within a #7311 Unit Enclosure providing a
total of 12 PCI-X slots in four units of rack space.
One #7311 Unit Enclosure supports two #5790 drawers, but may also be used
for one drawer. A PDU in the rack is optional
The #5790 includes a #9531 Base HSL-2 Bus Adapter which provides the HSL-2
interface to the system. The IBM marketing configurator automatically adds
#9531 to the order
One or two of the following cables must be ordered to attach to the HSL or HSL-2
ports.
#1474 - 6m HSL to HSL-2 Cable
#1475 - 10m HSL to HSL-2 Cable
#1307 - 1.75m HSL-2 Cable (Note this cable cannot be plugged into a racked
model 520 or 550 CEC)
#1308 - 2.5m HSL-2 Cable
#1481 - 1.2m HSL-2 Cable (Note this cable cannot be plugged into a racked
model 520 or 550 CEC.
#1481 - 1m HSL-2 Cable
#1482 - 4m HSL-2 Cable
#1483 - 10m HSL-2 Cable
Two of the following line cords must be ordered for use with each #5790:
#6459 - 12-Ft 250V/10A, Right Angle, Drawer to IBM PDU
#6470 - 6-Ft 125V/15A Line Cord United States/Canada
#6471 - 9-Ft 125V/15A Line Cord Brazil
#6472 - 9-Ft 250V/10A Line Cord EU/Asia
#6473 - 9-Ft 250V/10A Line Cord Denmark
#6474 - 9-Ft 250V/10A Line Cord UK
#6475 - 9-Ft 250V/10A Line Cord Israel
