High-speed link for Model 595
The following number of loops are supported:
򐂰 The Model 595 8/16-way supports six HSL-2/RIO-G loops on one processor
book with a maximum of 36 I/O towers across all loops.
򐂰 The Model 595 16/32-way supports twelve HSL-2/RIO-G loops across two
processor books with a maximum of 60 I/O towers across all loops.
Note: You can find line cord and power receptacle specification information on
the Web at:
http://www.ibm.com/eserver/iseries/infocenter

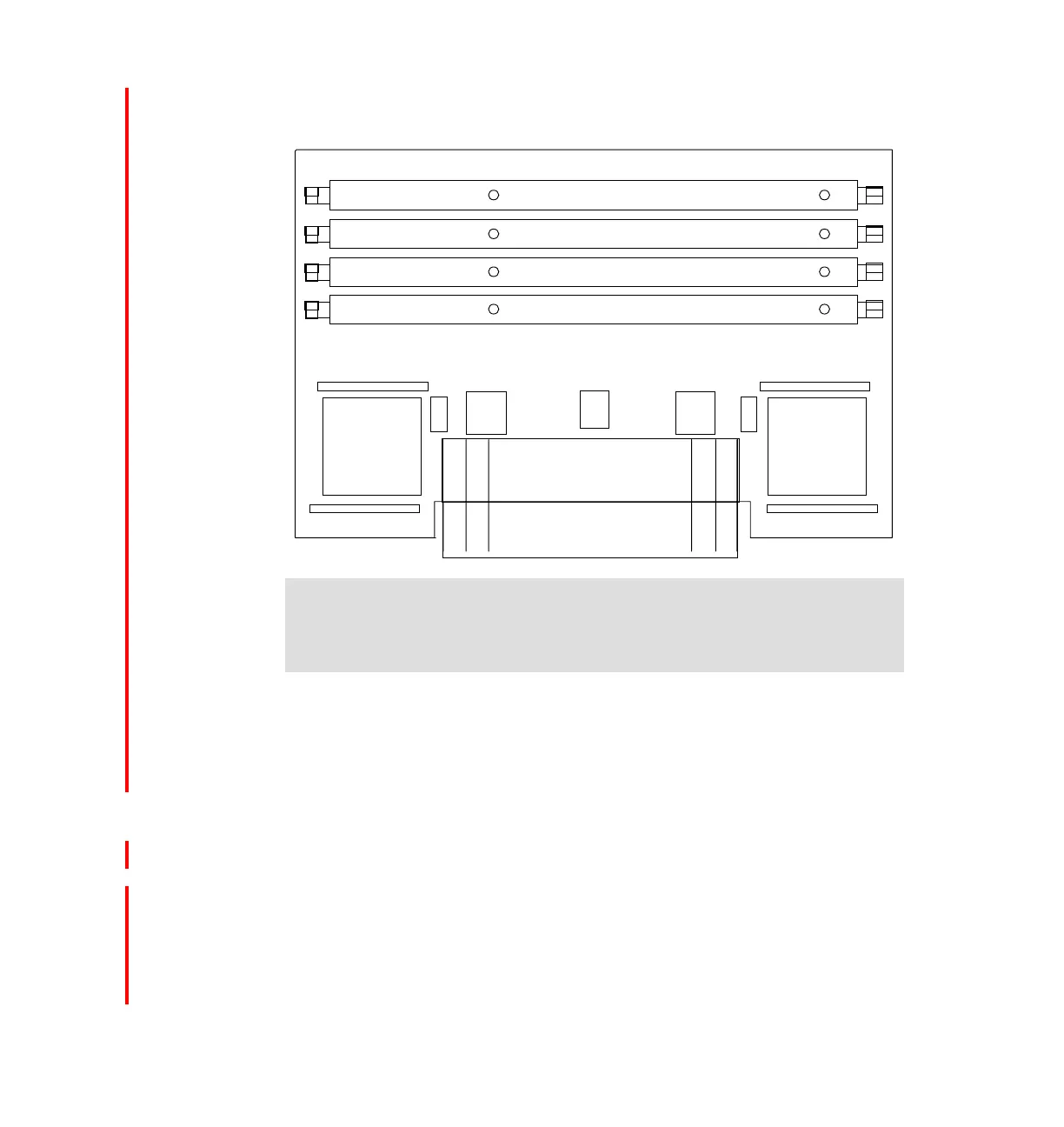

595 Memory Cards for Processor Book
SMI
SMI
(interface to
DRAMs)
(interface to
DRAMs)
J0D
J0C
J0B
J0A
DIMM Socket
DIMM Socket
DIMM Socket
DIMM Socket
