High-speed link for Model 570
򐂰 The Model 570 1/2-way system supports a single HSL-2/RIO-G loop wit a
maximum of 6 towers across the loop.
򐂰 The 2/4-way system supports two HSL-2/RIO-G loops with a maximum of 12
towers across both loops.
򐂰 The 5/8-way supports four HSL-2/RIO-G loops with a maximum of 18 towers
across all loops.
򐂰 The 9/12-way supports four six HSL-2/RIO-G loops with a maximum of 24
towers across all loops.
򐂰 The 13/16-way supports eight HSL-2/RIO-G loops with a maximum of 30
towers across all loops.
The speed of the HSL-2/RIO-G is doubled to 2 GBps. compared to the previous
HSL-2 adapters operating at 1 GBps. The following rules apply to towers that are
supported at these speeds:
򐂰 New #5094, #5294, #0595, and #5095 come with a #9517 HSL-2/RIO-G
adapter. The #5790 PCI-X Expansion Drawer includes a #9531 HSL-2/RIO-G
adapter
򐂰 HSL-2 adapters in existing #5094, #5294, #0595, and #5095 towers must be
replaced with a #6417 2 GBps HSL-2/RIO-G adapter.
򐂰 Mixing of HSL and HSL-2 towers is permitted with the correct combination of
cables.

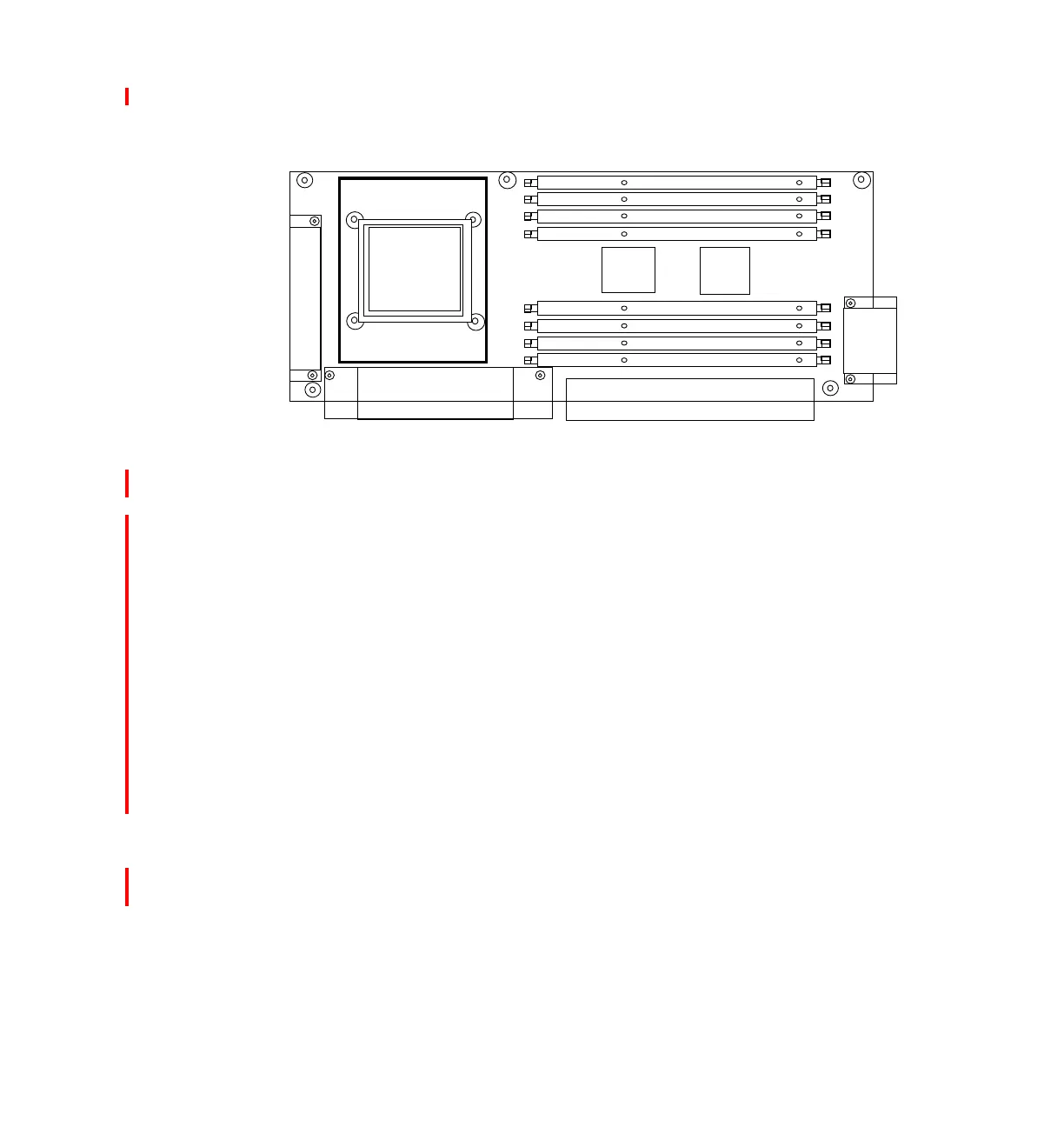

DCM
2- way
J1A
J1B
J1C
J1D
J0D
J0C
J0B
J0A
power connector
heat sink
360 pin VHDM
with power modules
360
pin
VHDM
160
pin
VHDM
DIMM Socket
DIMM Socket
DIMM Socket
DIMM Socket
DIMM Socket
DIMM Socket
DIMM Socket
DIMM Socket
SMI II SMI II
i550 and i570 Processor card
