IBM eserver i5 User Manual

iSeries Model 595 171
Draft Document for Review October 18, 2004 5486m595.fm
See the #9094 PCI Card Enclosure
for card placement details.
Base Feature
Required Feature
Unavailable if
Integrated Netfinity
Server is installed
Note 3:
Integrated xSeries
Server placement is not
supported from the plant.
Only a #2792 is allowed in this
position.
Note 1:
If C05 has an
Integrated xSeries Server,
slot C06 is unavailable, and
slot C07 is available only as a
short slot. A #2792 does not
reduce a third slot to a short
slot.
Note 2:
If C11 has an
Integrated xSeries Server,
slot C12 is unavailable, and
slot C13 is available only as a
short slot. A #2792 does not
reduce a third slot to a short
slot.

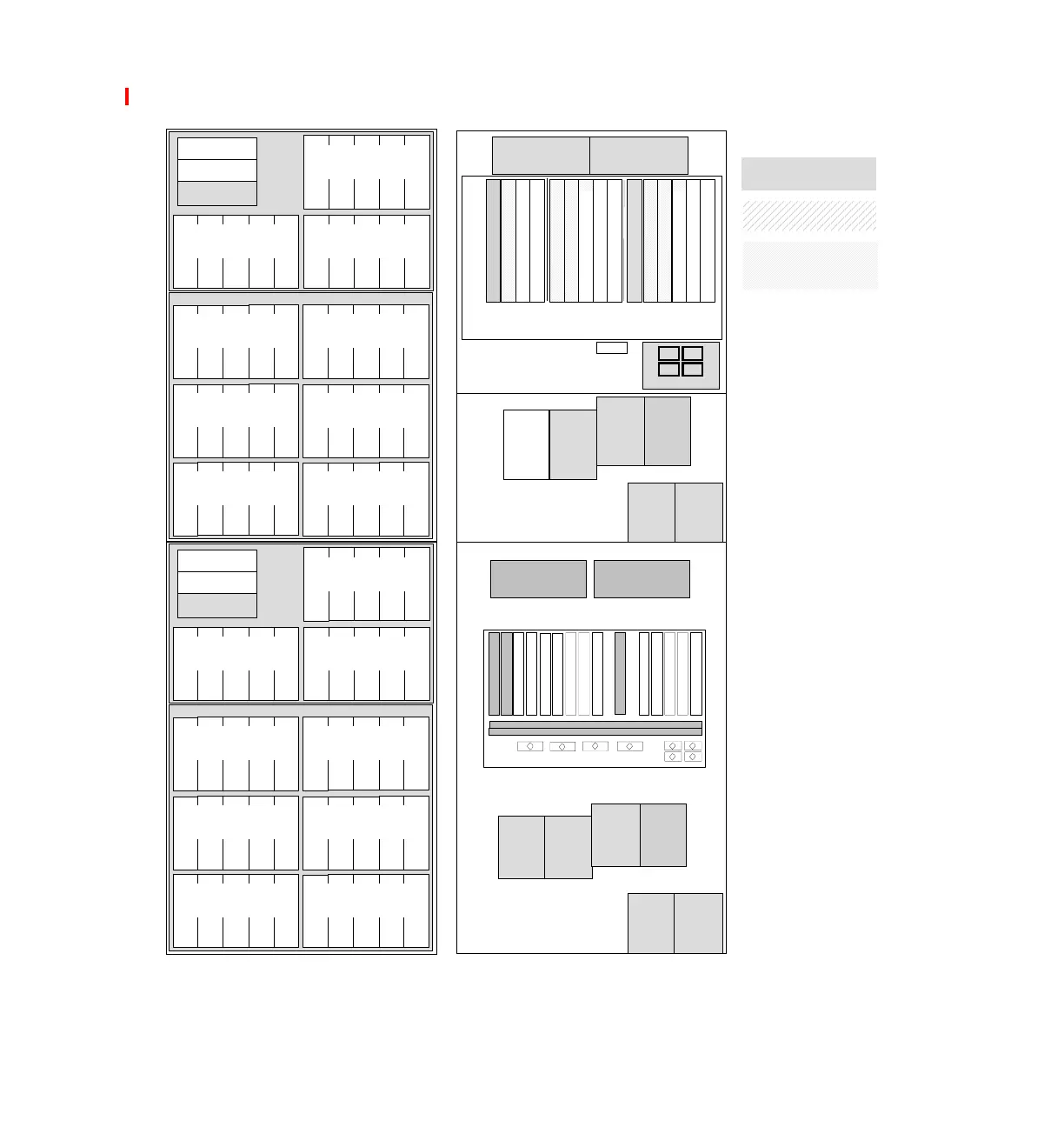

DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
D36 D37 D38 D39 D40
D31D32D33D34D35
OP Panel
D46 D47 D48 D49 D50
Rem Media
D41
DISK SLOTS
DISK SLOTS
Rem Media
D42
D21D22D23D24D25
D11 D12 D13 D14 D15
D01D02D03D04D05
D26 D27 D28 D29 D30
D16 D17 D18 D19 D20
D06 D07 D08 D09 D10
DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
DISK SLOTS
D36 D37 D38 D39 D40
D31D32D33D34D35
OP Panel
D46 D47 D48 D49 D50
Rem Media
D41
DISK SLOTS
DISK SLOTS
Rem Media
D42
D21D22D23D24D25
D11 D12 D13 D14 D15
D01D02D03D04D05
D26 D27 D28 D29 D30
D16 D17 D18 D19 D20
D06 D07 D08 D09 D10
Legend
Note
: The total number of disk bays is 2 x 45.
PCI Cards
FAN
B01
FAN
B02
#9844/#9943
#9793
HSL
V/S Comm
JTAG-A
SPCN
Mfg Int
Serial-1
FAN
B01
FAN
B02
Multi-Adapter Bridge Bus Number
Slots
1
2
C01 C02 C03 C04 C05 C06 C07
C09 C10
C11 C12 C13
C14
C15
C08
3
Note: All slots are 3.3V
VPD
SPCN
1,2 IOP//IOA/IXS
4 IOA 5,6 IOP/IOA 7,8 IOA 5,6 IOP/IOA 7,8 IOA 5,6 IOP/IOA
4 IOP/IOA
7,8 IOA 1,2 IOP(#9844)/IOA/IXS 3,4 IOA
1,2 IOP/IOA 3 IOP/IOA
3 IOA
HSL
840 W
Power
Supply
P01
840 W
Power
Supply
P02
P03
840 W
Power
Supply
840 W
Power
Supply
P00
AC Dist
Box
(A01)
AC Dist
Box
(A02)
AC Dist
Box
(A01)
AC Dist
Box
(A02)
Power supply slots are used as follows:
P01 - Base power
P02 - Base power
P03 - Dual line cord (standard)
P00 - Auxiliary DASD cage (standard)
Power supply slots are used as follows:
P01 - Base power
P02 - Base power
P03 - Auxiliary DASD cage (standard)
P00 - Dual line cord
840 W
Power
Supply
P01
840 W
Power
Supply
P02
P03
840 W
Power
Supply
840 W
Power
Supply
P00
