2 - TECHNICAL INFORMATION Master 80 UP HyperFlexible
EN
2 - Pag. 23 / 23

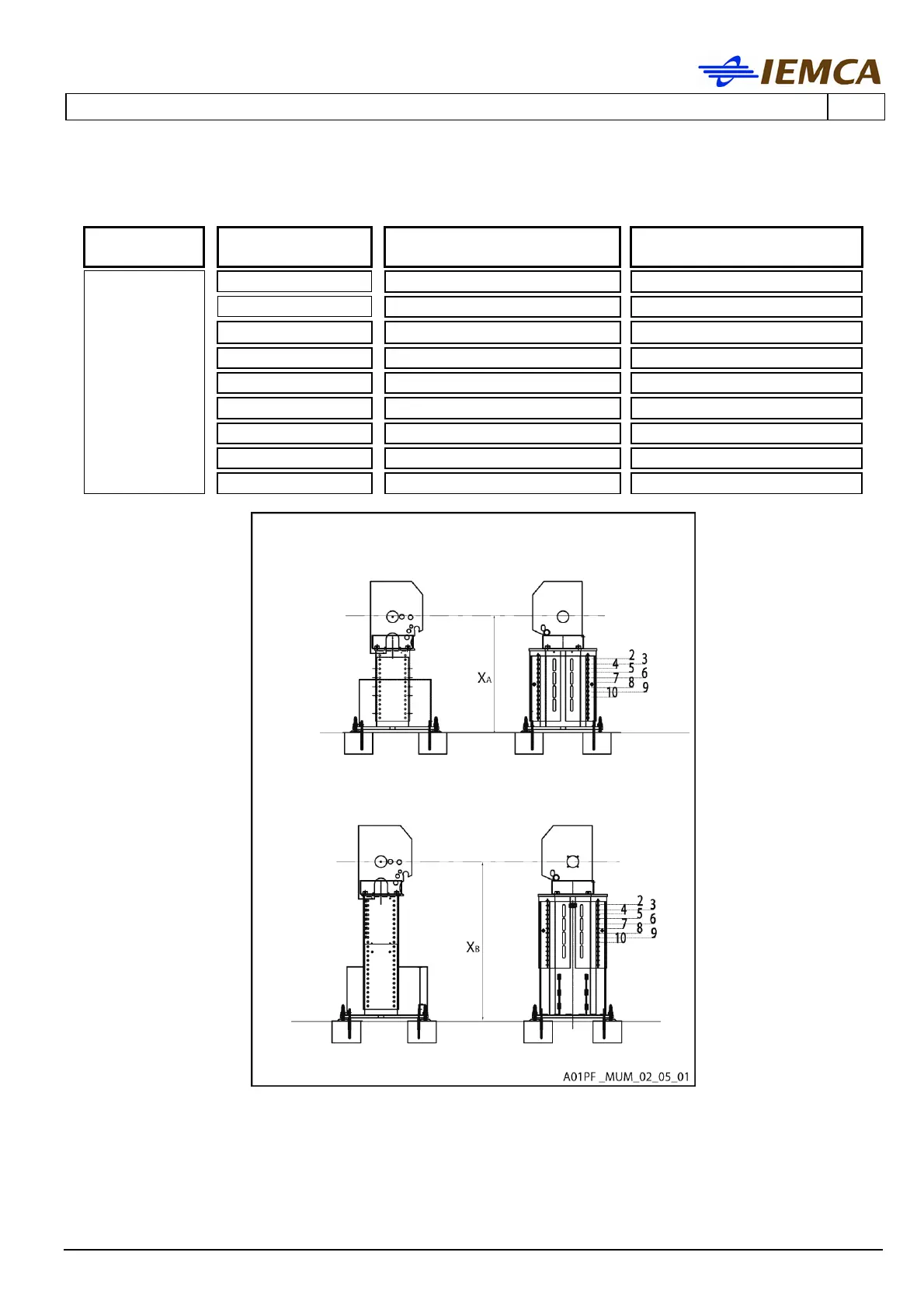

Working axis height
Model Screw position
X
B
(mm)
High base
X
A
(mm)
Low base
MASTER 80 UP
HyperFlex
2 1221÷1255 906÷940
3 1256÷1290 941÷975
4
1391÷1325 976÷1010
5 1326÷1360 1011÷1045
6 1361÷1395 1046÷1080
7 1396÷1430 1081÷1115
8 1431÷1465 1116÷1150
9 1466÷1500 1151÷1185
10 1501÷1535 1186÷1220
