5 - ADJUSTMENT AND SETUP Master 80 UP HyperFlexible
5 - Pag. 12 / 12

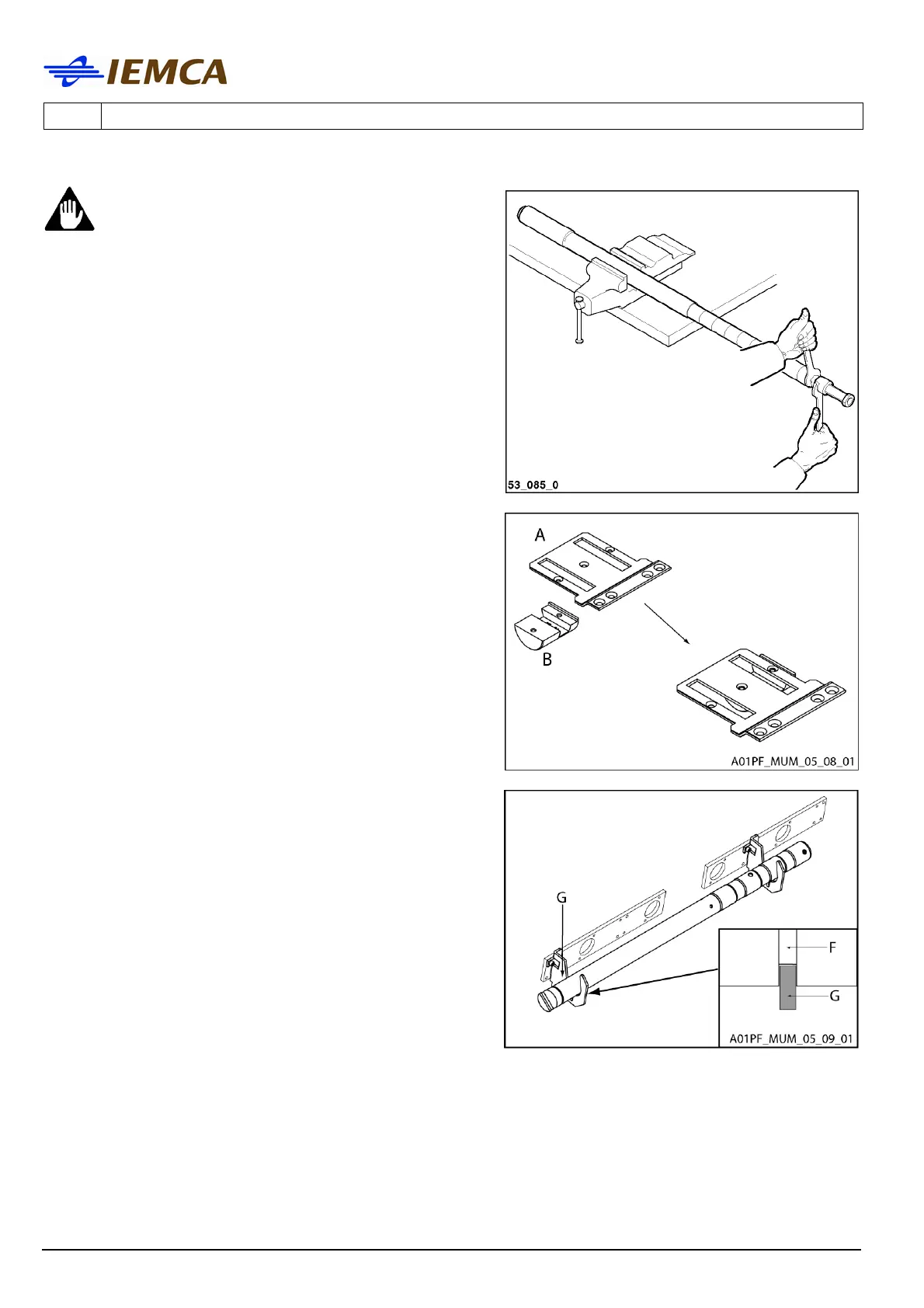

WARNING - CAUTION:
the collet external diameter should be at
least 0.5 mm smaller than the bar pusher
external diameter.
• Install the collet in the bar pusher and make sure
that the rings are riveted in their special recess to
prevent accidental loosening of the collet and/or
its connection.
• Assemble the first feeding pin (B) of the "new"
diameter on the flag (A).
• Insert the bar pusher into both supports.
Properly position the bar pusher in the axial
direction, so that (F) groove matches support
(G).
