IMV K2 - Page 20

1 - 10

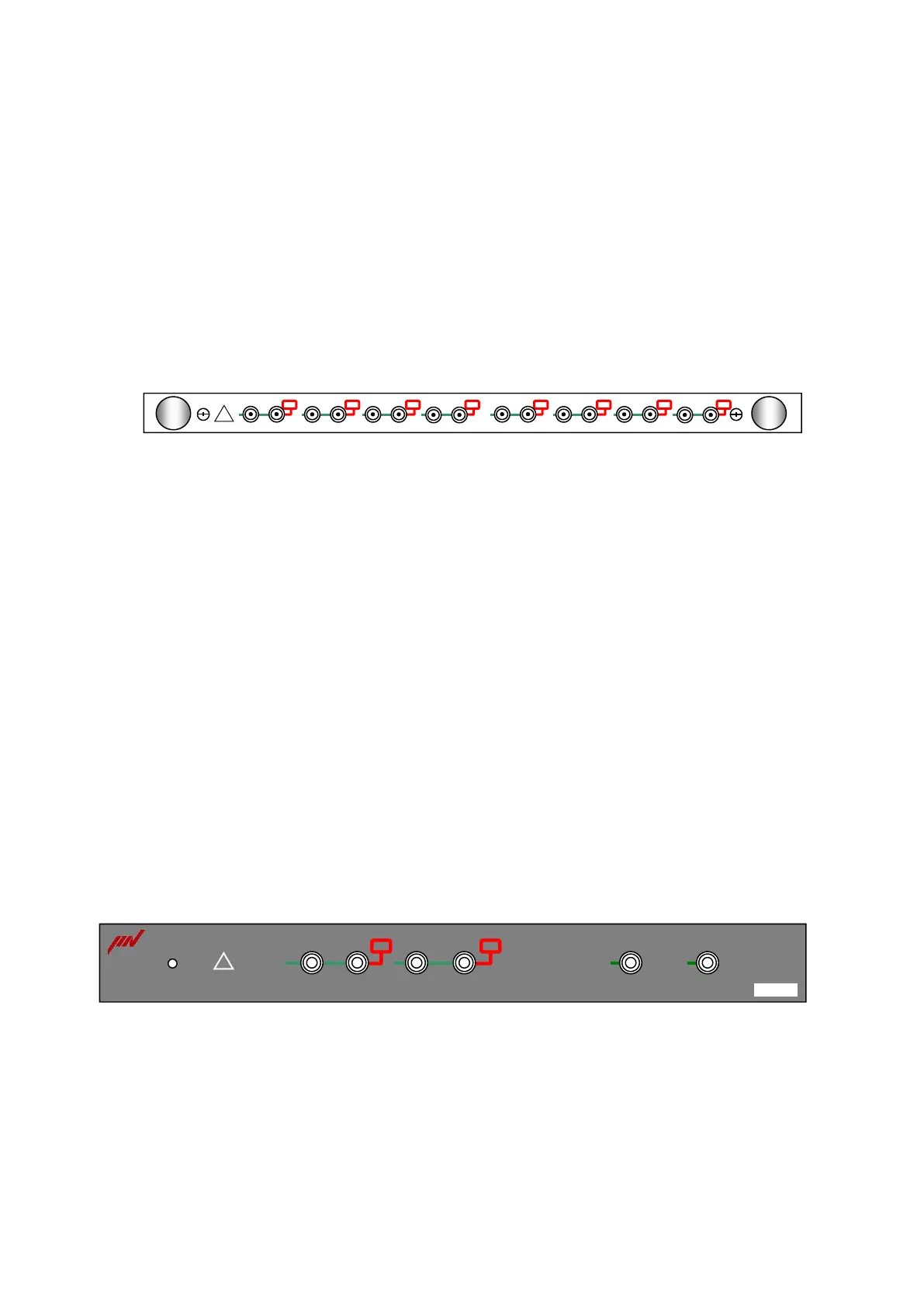

(2) Input Module (K2ST-23-012)
Analogue signal acquisition for 8 Simultaneous Sampling Input Channels is available.
24 bit D/A converter of ΔΣ method is used.
Maximum Sampling Frequency is 51.2 [kHz].
The input formats generally supported are Charge Input and IEPE Input besides Voltage
Input.
(Voltage Input, Charge Input and IEPE Input are changeable on the software.)
IEPE input supports the TEDS function.
Monitor Output Terminals are provided for every input channel.
Each input circuit is protected by relay device.
(3) K2Sprint Cabinet (K2SP-11-011)
<Input>
Analogue signal acquisition for 2 Simultaneous Sampling Input Channels is available.
24 bit D/A converter of ΔΣ method is used.
The input formats generally supported are Charge Input and IEPE Input besides Voltage
Input.
(Voltage Input, Charge Input and IEPE Input are changeable on the software.)
IEPE input supports the TEDS function.
Monitor Output Terminals are provided for every input channel.
<Output>
Analogue signal output including the excitation control drive signal for 2 Output Channels is
available.
24 bit D/A converter of ΔΣ method is used.
ch1
ch2
ch3
ch4
INPUT
ch5
ch6
ch7
ch8
K2ST-23-012
!
Ch2
OSC
OUTPUT
INPUT
Ch1
POWER
Sprint
!
