7.6 Changing Diaphragms in the Foreline Pump
7.6.1 Replacement Interval
The foreline pump diaphragm disks, valve seals, valve disks, and O-rings must be
replaced every 8000 hours of operation.
7.6.2 Diaphragm kit PN 923-418-G1

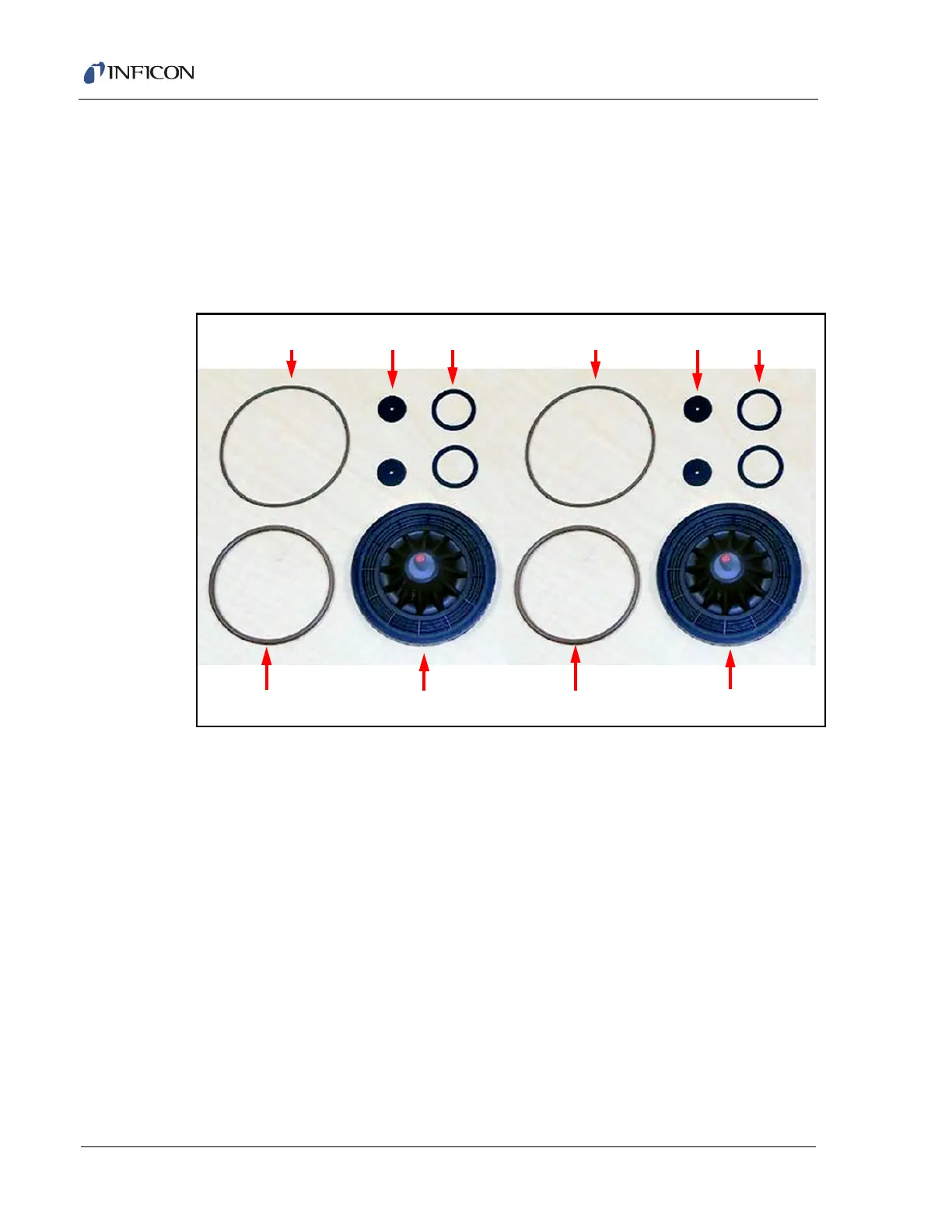

Figure 7-1 Diaphragm kit contents
Valve
Disk
Valve
Seal
Thick
Thin
Diaphragm Disk
O-ring
O-ring
Diaphragm Disk
Valve
Seal
Valve
Disk
Thin
O-ring
Thick
O-ring
