Transpector CPM Operating Manual
1.6 Physical Requirements
1.6.1 Physical Dimensions

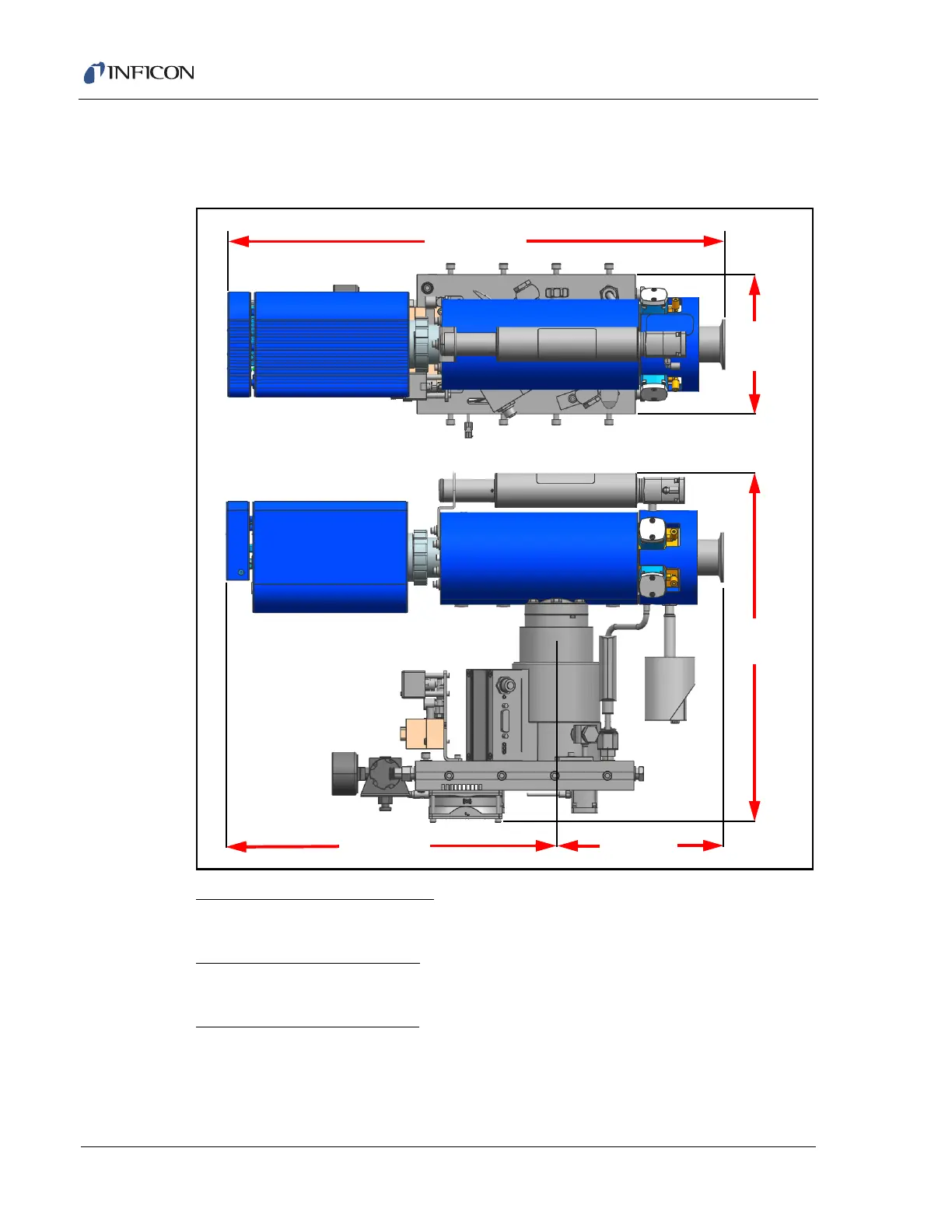

Figure 1-1 Pumping system dimensions
Pumping System dimensions
545 x 152 x 378 mm (21.5 x 6.0 x 14.9 in.)
CPM Controller dimensions
195 x 207 x 89 mm (7.7 x 8.1 x 3.5 in.)
Foreline Pump dimensions
218 x 150 x 147 mm (8.6 x 5.9 x 5.8 in.)
NOTE: See Figure 2-8 on page 2-10 for cable connections.
183 mm
362 mm
(7.2 in.)
(14.3 in.)
378 mm
(14.9 in.)
545 mm
(21.5 in.)
152 mm
(6.0 in.)
