10.6.2.2.2 Data Threshold
Defines the threshold that the Start Mode Type utilizes to determine when the run
will start. The Data Threshold is set in units corresponding to the Start Mode Type
selected. Maximum Signal is in units of current, Pressure Above/Below is in
units of pressure, and Analog 1 Above/Below is in units of volts. (See Figure
10-36.)

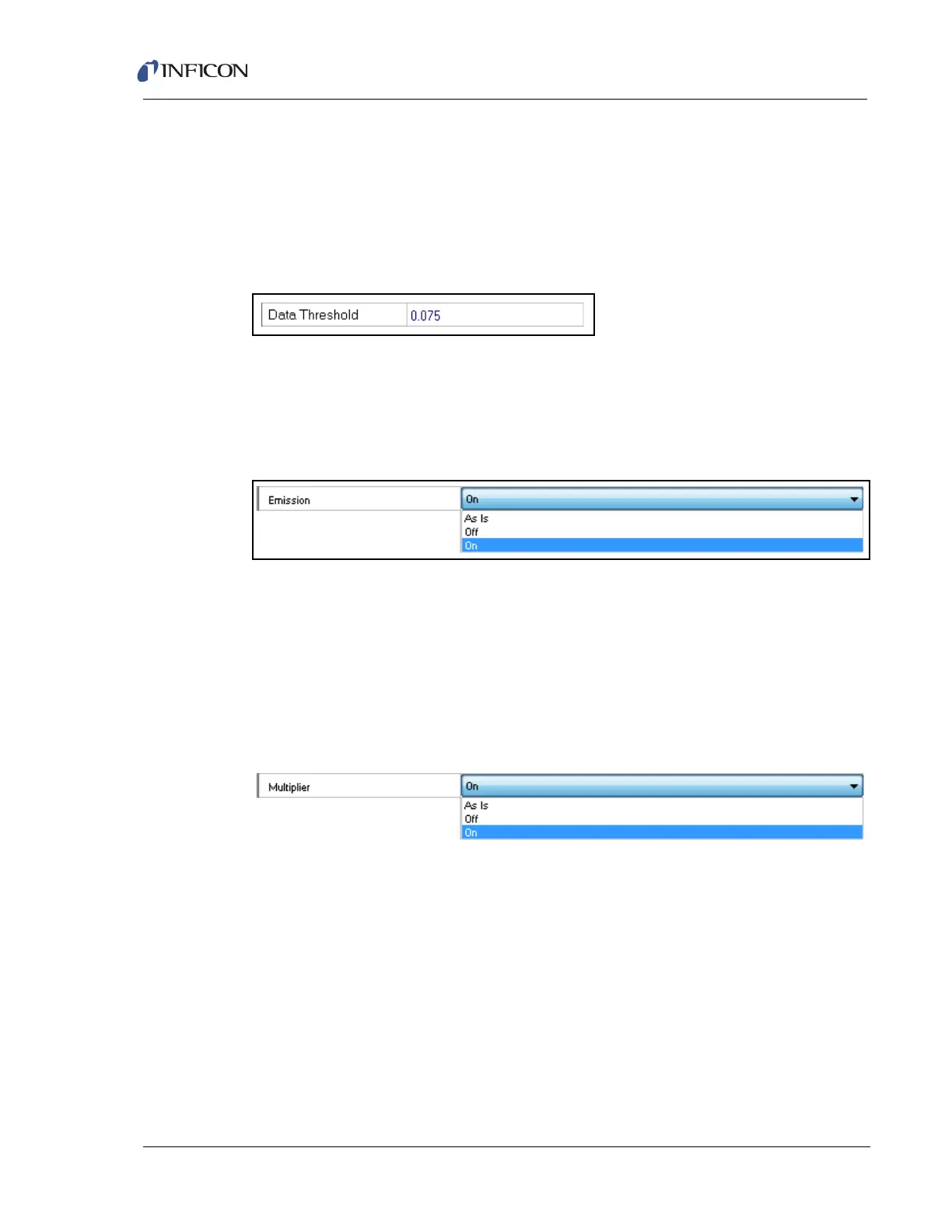

Figure 10-36 Data Threshold
10.6.2.2.3 Emission
Defines the mode of the filament when the run starts. (See Figure 10-37.)
If Emission is not turned on, data will not be collected.
Figure 10-37 Emission
As Is uses the current status of the filament.
Off starts the data acquisition with the filament off.
On starts the data acquisition with the filament on.
10.6.2.2.4 Multiplier
Defines the mode of the electron multiplier when the run starts. (See Figure 10-38.)
Figure 10-38 Multiplier
As Is uses the current status of the EM.
Off starts the data acquisition with the EM off.
On starts the data acquisition with the EM on.
10.6.2.2.5 Relay 1
Defines the state of Relay 1 when the run starts
As Is leaves the relay in its current state at the beginning of the run.
Open opens the relay at the beginning of the run.
Close closes the relay at the beginning of the run.
