Transpector CPM Operating Manual
10.4.3 Bypass Delay - Interlock between V2 and V4
Bypass Delay defines the interlock between V2 (HP) and V4 (Bypass) valves. The
time entered (in seconds) determines:
1 How long the V4 (Bypass) valve will be open before the V2 (HP) valve will be
opened
2 How long the V4 (Bypass) valve will remain open after the V2 (HP) valve has
been closed.
This interlock between V4 (Bypass) and V2 (HP) is only active when using V2 (HP)
in recipes. When opening V2 (HP) in Configuration monitor, this interlock is not
active.

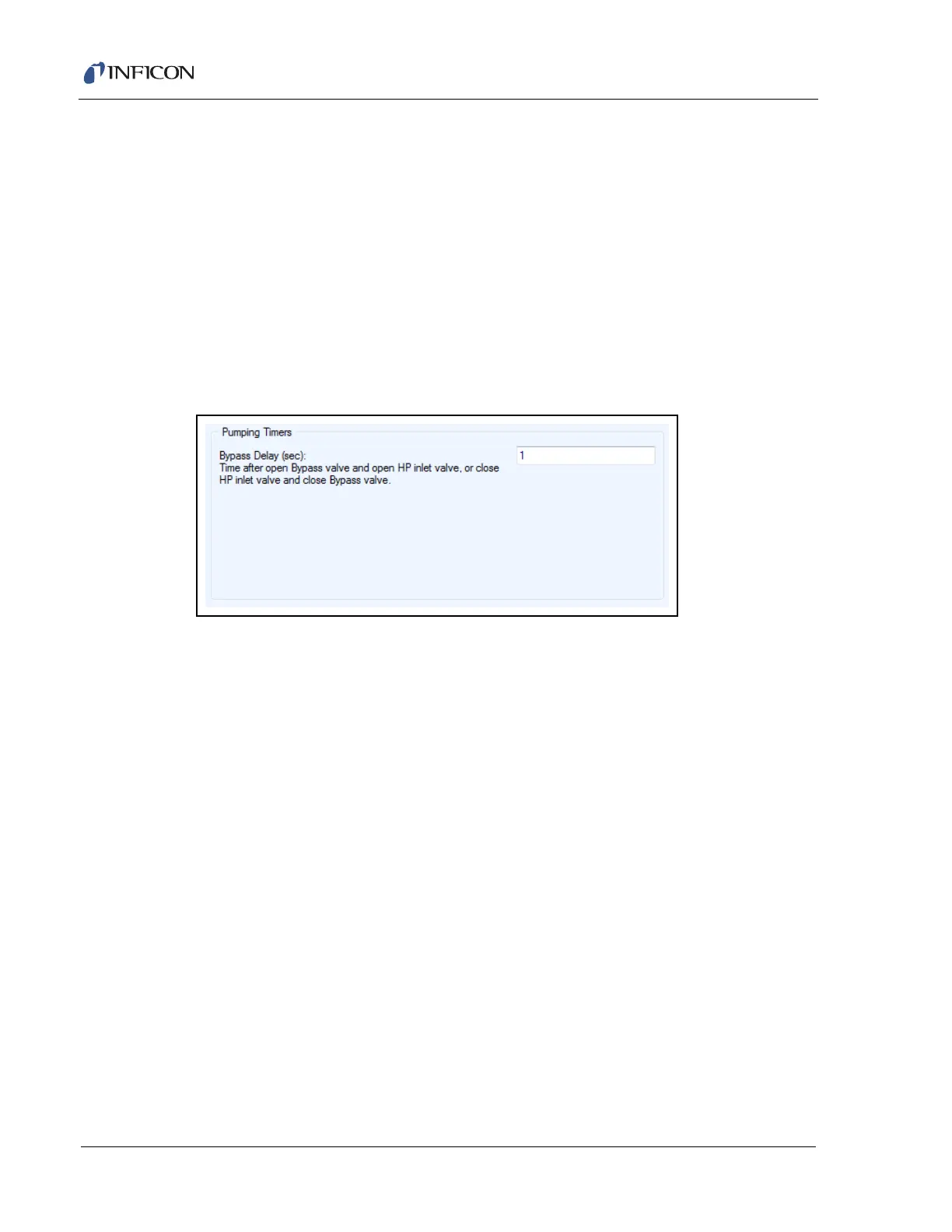

Figure 10-12 Pumping Timers pane
