6–11
Transpector CPM Operating Manual
6.6 Pneumatic Digital Pressure Switch and Pressure Gauge
The Pneumatic Digital Pressure Switch and Pressure Gauge:
provide a visual display of the air (or nitrogen) pressure provided to the
pneumatic block
ensure proper pressure for the CPM to function. If the pressure has decreased
below 58 psi (3.999 bar) [399.9 kPa] or exceeds 100 psi (6.895 bar)
[689.5 kPa], the CPM system will shut itself down

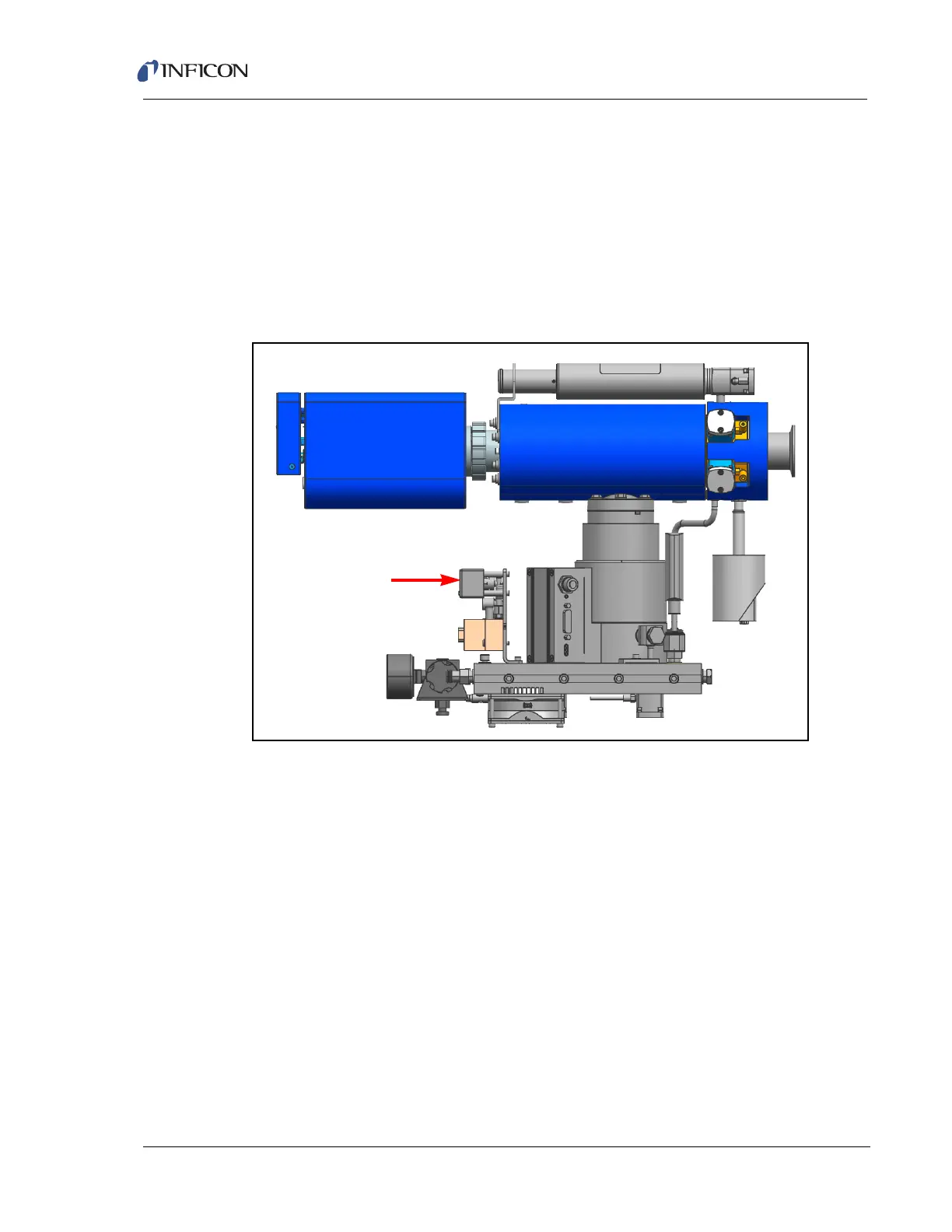

Figure 6-3 Location of pneumatic digital pressure switch and gauge
6.6.1 Setup Procedure
This setup procedure assumes:
no pressure is applied
psi is the pressure unit
Figure 6-4 depicts the location of the display and controls.
Pneumatic Digital
Pressure Switch
and Gauge
