Inficon Transpector CPM User Manual

2–7
Transpector CPM Operating Manual
2.4.2 Atmospheric Support Frame
Atmospheric Transpector CPMsystems do not need the standard support legs. An
atmospheric system is mounted to a support frame, which also houses the CPM
controller. (See Figure 2-5.)

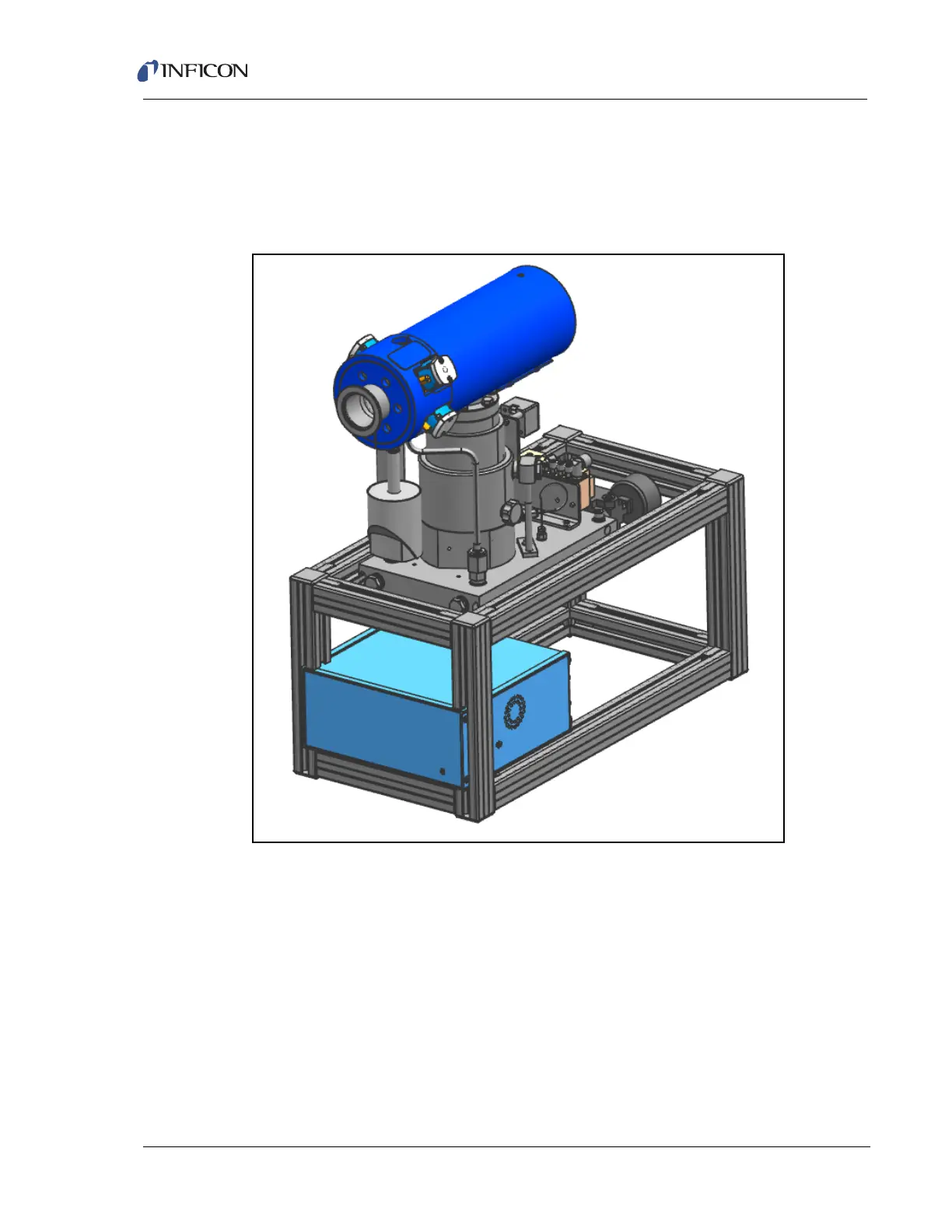

Figure 2-5 CPM configured with support frame for atmospheric sampling
2.5 CPM Controller Installation
The CPM controller is standard 1/2 rack, 2U height rack mountable. The CPM
controller is provided with feet and can sit on the floor or table.
Cable connections on the CPM controller are:
 Cable bundle that includes the CPM interface cable (connects to the cable box on
the back of the Transpector electronics module), heater cable, and ground strap
 Foreline pump power cable
 CPM Controller power cable
