10 – 24
Transpector CPM Operating Manual

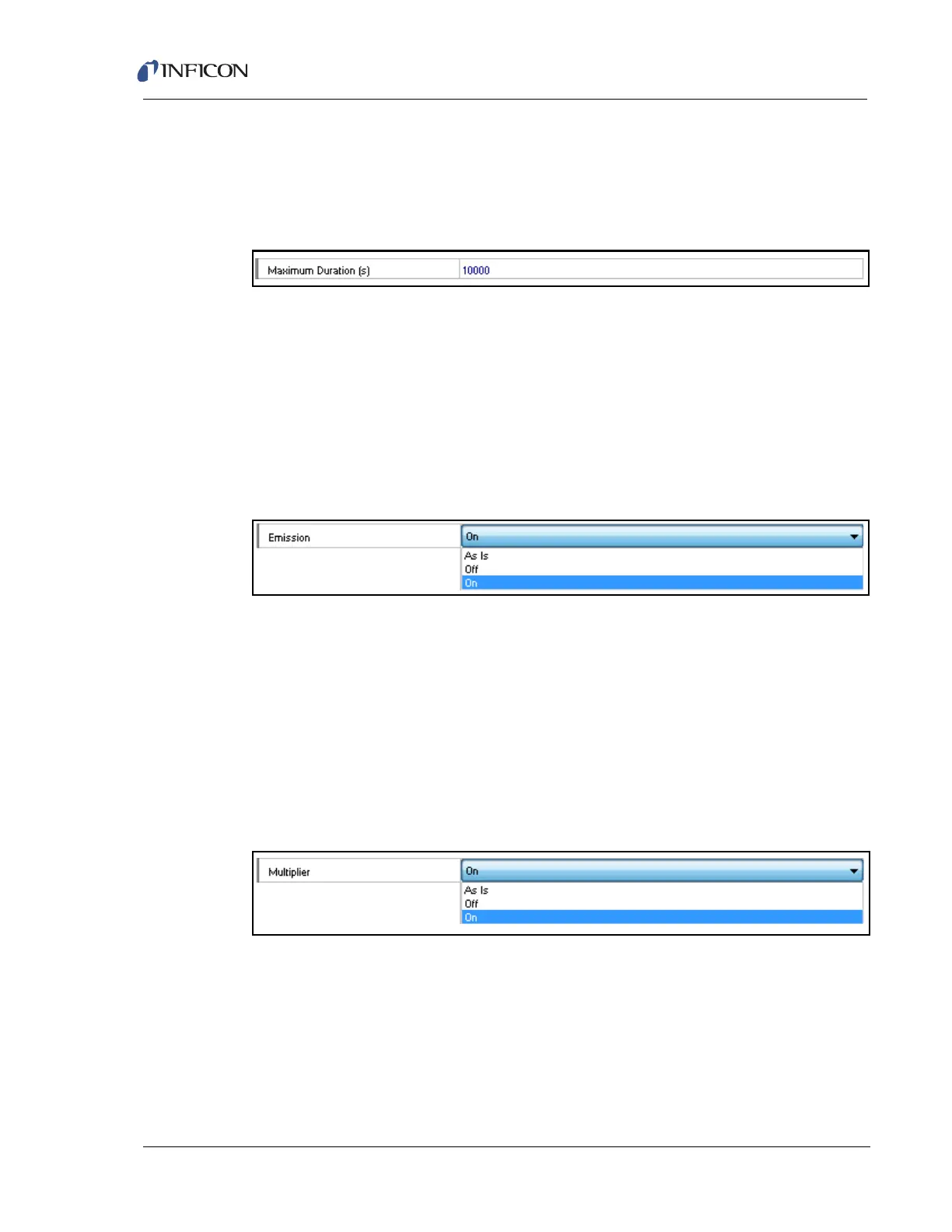

10.6.2.3.3 Maximum Duration
Defines the length of time in seconds that the RGA will collect data if using Time
as a stop mode. If using a different stop mode, Maximum Duration defines the
maximum amount of time that the RGA will collect data. (See Figure 10-41.)
Figure 10-41 Maximum duration
NOTE: If the data acquisition ends due to the Maximum Duration when its Stop
Mode Type is not set to Time, an alarm will occur. For more information
on alarms, refer to Chapter 8.
10.6.2.3.4 Emission
Defines the mode of the filament when the run stops. It is recommended to turn off
the filament if the sensor will be exposed to high pressures following a run. (See
Figure 10-42.)
Figure 10-42 Emission
As Is uses the current status of the filament.
Off stops the data acquisition with the filament off.
On stops the data acquisition with the filament on.
10.6.2.3.5 Multiplier
Defines the mode of the electron multiplier when the run stops. It is recommended
to turn off the EM if the sensor will be exposed to high pressures following a run.
(See Figure 10-43.)
Figure 10-43 Multiplier
As Is uses the current status of the EM.
Off starts the data acquisition with the EM off.
On starts the data acquisition with the EM on.
