TREATMENT STAGE
Manual Part Number

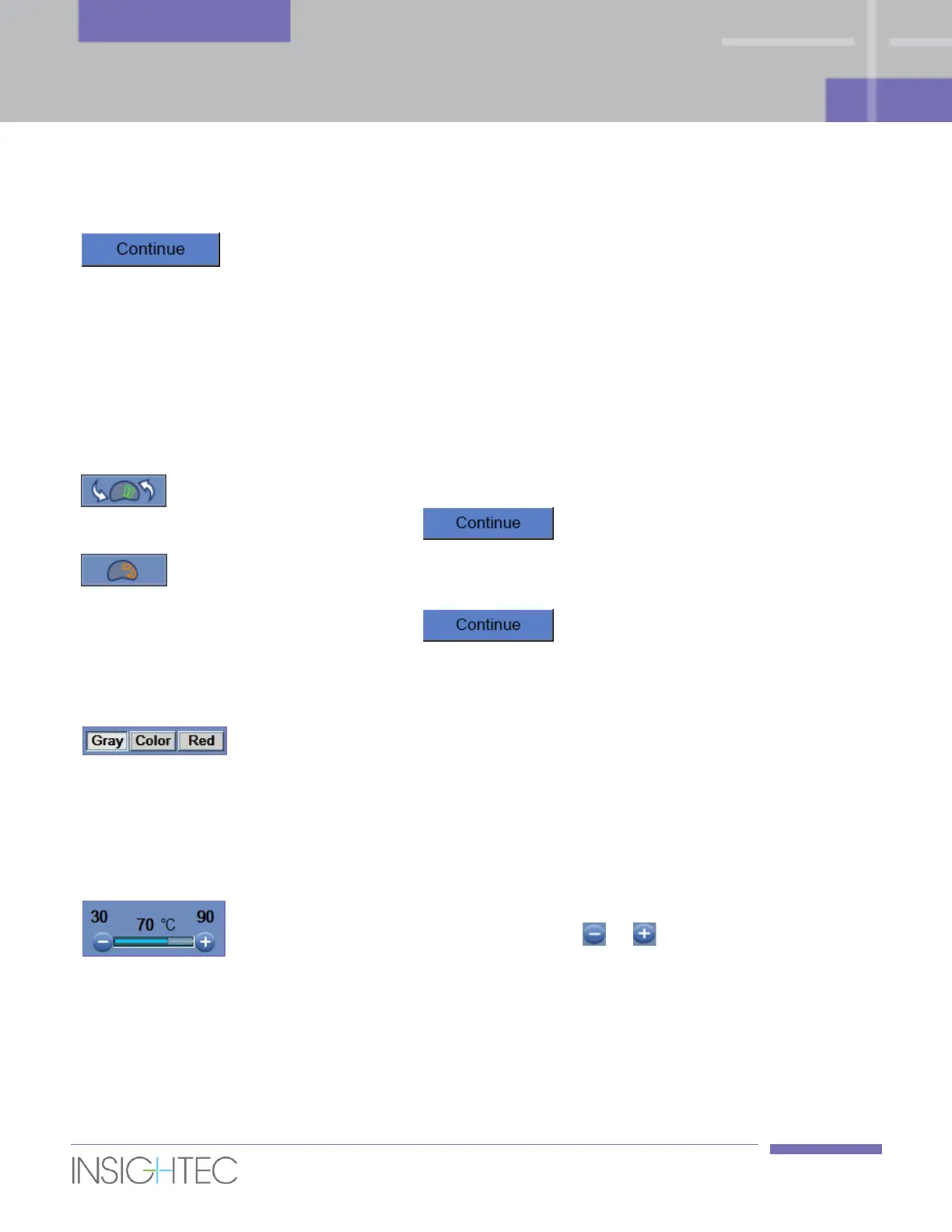

7.3.3. Continue Treatment Tools
Continue to
Main Treatment
Screen
Click this button to exit the Thermal Evaluation Screen and
continue to the Main Treatment Screen, to advance to the next
sonication.
Note
By clicking this button, you accept the Thermal Outcome
(Measured Thermal Dose accumulation) from this sonication.
This action will affect the Accumulated Measured Thermal Dose.
Carefully examine the sonication outcomes before clicking the
continue button.
Click this button to repeat the last performed sonication.
Click to proceed.
Repeat Under-
Heated Regions
Click this button to enter Repeat Under-Heated Regions mode.
See Section 7.4.6.
Click to proceed.
7.3.4. Temperature Scaling Tools
Temperature
Scale Viewing
Click on different tabs for different scaling:
Gray displays temperature maps in grayscale.
Color displays temperature maps in color.
Red displays a red overlay on the grayscale image. The red
overlay displays all the areas where the temperature is above a
pre-determined temperature threshold.
To view the desired temperature scale, set the temperature
threshold by clicking the or buttons. The selected value
appears on the scale.
