TREATMENT TOOLS
Manual Part Number
5.2.6. Selected Image Window
The Selected Image window is the "workspace" for planning and conducting treatments. When clicking on
an image in the image strips, this image is displayed in the selected image window.
All user editing and interaction with graphical objects is performed only on the selected
image window.
[N-13]

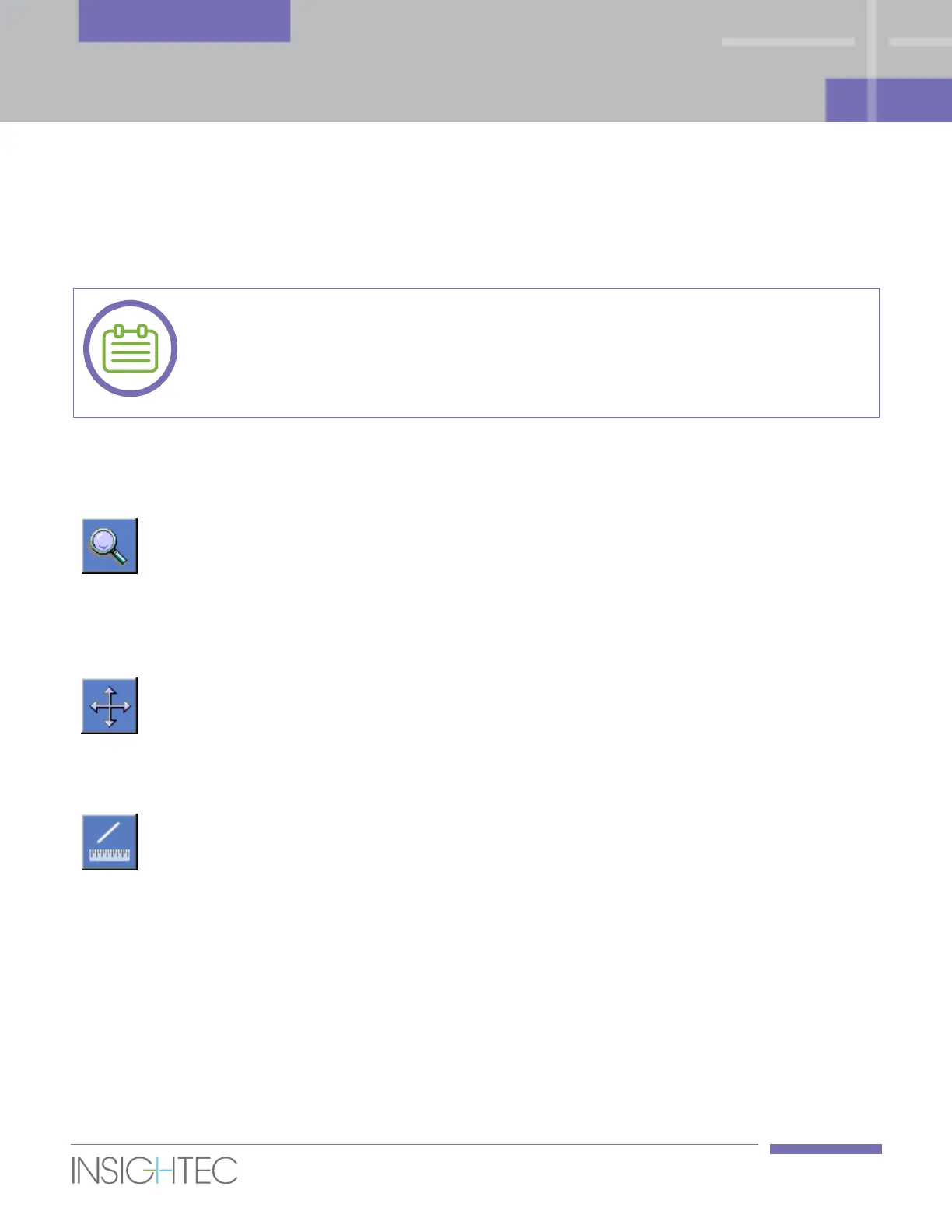

5.2.7. Imaging Tools
This section describes the button, name and function of each of the imaging tools.
To see a close-up of an image, click this button. To zoom in, drag the
mouse up. To zoom out, drag the mouse down. Any change in one
image is automatically reflected in all the other images on the same
type of strip.
Alternatively, click the left mouse button and drag the mouse as above
to change the zoom.
To navigate around a zoomed image, click this button and then move
the cursor to the image you wish to navigate to. Drag to pan the image.
Alternatively, right click and drag to pan the image. Any change is
automatically reflected in all the other images on the same type of
strip.
Click this button to measure the actual distance between two points.
This function is applicable only to the selected image window.
To measure distance:
1. Click an image from the image strips to view in the selected image
window.
2. Click on the first point to measure.
3. Move to the second point and click again.
4. Double click to complete the Measure command.
5. If needed, edit the measurement line by moving its tip
Exablate calculates and displays the distance between the two points.
Distance label can be moved if required.
