3─106
3
3.10 APPLIED OPERATIONS
y
y y

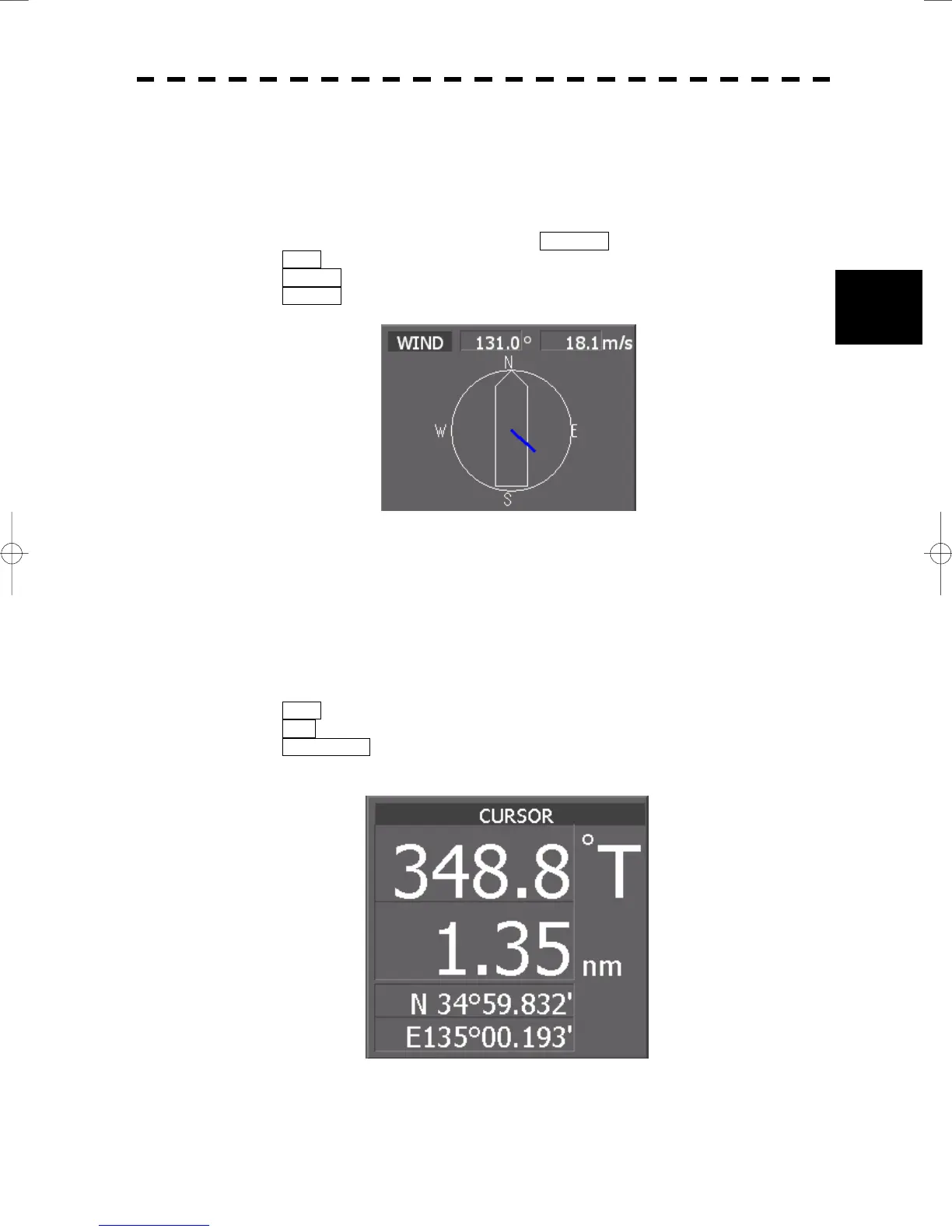

[5] Wind/Current Graph
• Determine whether to display received wind direction/velocity information with a graph.
• The graph is displayed in one of two ATA’s numeric data display areas.
• When the wind direction/velocity information is displayed, the sizes of the ATA’s numeric data display
areas are exclusively decreased.
• Wind/Current Graph is set to ON/OFF each time the OPTION button on the screen is pressed.
OFF : Does not display the wind direction/velocity graph.
AREA1 : Displays the wind direction/velocity graph in numeric data display area 1.
AREA2 : Displays the wind direction/velocity graph in numeric data display area 2.
[6] DIR/DIST EXP Display
• Determine whether to expand the value display of cursor, EBL, and VRM.
• The value display is expanded in ATA’s numeric data display area 2.
• When the cursor mark moves on the PPI, the display of cursor information is expanded.
• When an EBL or VRM is operated, the value display of each marker is expanded.
• The expanded display remains for 5 seconds after the operation of each marker, and then it will
disappear.
• While the menu is open, any display is not expanded.
OFF : Does not expand any display.
ON : Expands the display in numeric data display area 2.
ALWAYS ON : The data are always expanded.
