2─14
2
2.2 FUNCTIONS OF SOFTWARE BUTTONS
yy
: TEST menu
Press this button to open the “TEST MENU” screen.
Use this menu screen to operate the self-diagnostic function in the radar.
: DISPLAY screen
Press this button to display optional information such as navigation information.
For the setting of information to be displayed, see section 3.10.4 on page 3-105.

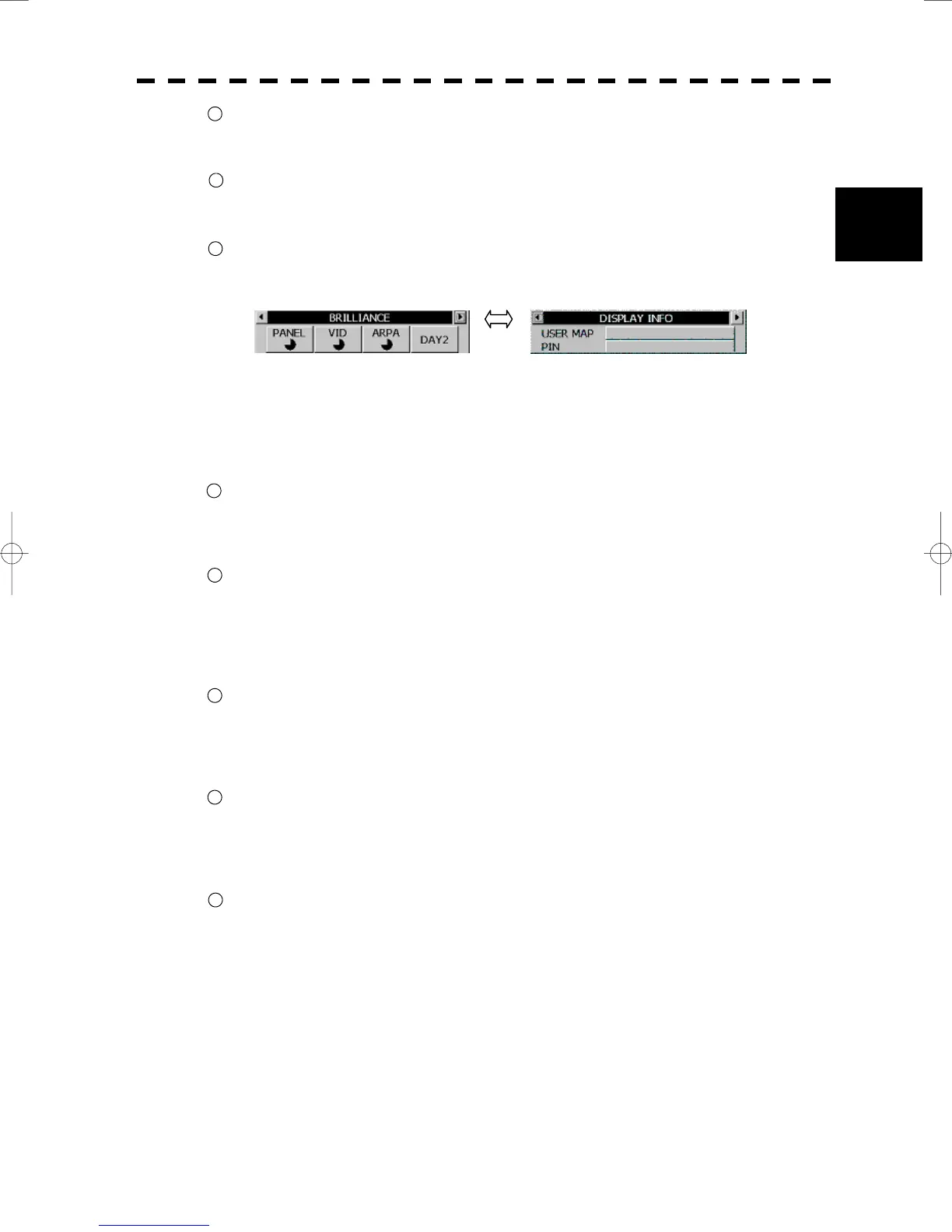

: Selection of display item
The display switches back and forth between the brilliance control screen and the display
information setting screen each time this button is pressed.
DISPLAY INFO
USER MAP: Navigation information readout function
The menu for calling a user-created map opens.
PIN (Personal Information):
Personal code call function
The PIN menu opens. Use this menu to load, save, and delete data.
: PANEL brilliance
Sets the brilliance of operation panel illumination. Five brilliance levels are set each time this
button is pressed.
→See section 3.3.3 on page 3-9.
: VID brilliance
Controls the video level of echoes.
Brilliance changes each time this button is pressed. Four brilliance levels are switched in the
following sequence:
1 → 2 → 3 → 4
→See section 3.3.2 on page 3-8.
: ATA brilliance
Controls the brilliance of ATA symbols.
Brilliance changes each time this button is pressed. Five brilliance levels are switched in the
following sequence:
OFF → 1 → 2 → 3 → 4
: DAY/NIGHT mode
Selects a DAY/NIGHT mode. Brilliance changes according to the selected mode each time this
button is pressed. Four brilliance levels are set in the following sequence:
DAY1 → DAY2 → NIGHT1 → NIGHT2
→See section 3.3.4 on page 3-9.
: ALM ACK (Alarm acknowledgment function)
Press this button to stop the alarm buzzing and the alarm lamp flashing. If more than one alarm
has occurred, the next alarm to be acknowledged is indicated.
The uppercase displays an alarm that can be acknowledged by pressing the key.
The lowercase displays current alarms one by one.
→See section 3.3.7 on page 3-11.
57
58
59
61
60
62
63
64
