JMA-9100 Instruction Manual > 2.CONTROL PANEL KEYS and SOFTWARE BUTTONS > 2.3 FUNCTIONS OF SOFTWARE
BUTTONS
Upper Right of the display
Cursor mode switching
The mode of the function that uses the cursor is switched whenever this button is
pressed.
⇒ ⇒ ⇒ ⇒ ⇒
⇒ ⇒ ⇒ ⇒ ⇒
Mark font / line pattern switching
This function switches a mark font / line pattern. If this button is clicked while the cursor
mode is (mark) or (line), the mark font / line pattern is
changed.
Mark color / line color switching
This function switches a mark color / line color. If this button is clicked while the cursor
mode is (mark) or (line), the mark color / line color is
changed.
Cursor bearing numeric value display true / relative switching
The bearing numeric value display (true bearing) / (relative bearing) of the
cursor is switched whenever this button is clicked.

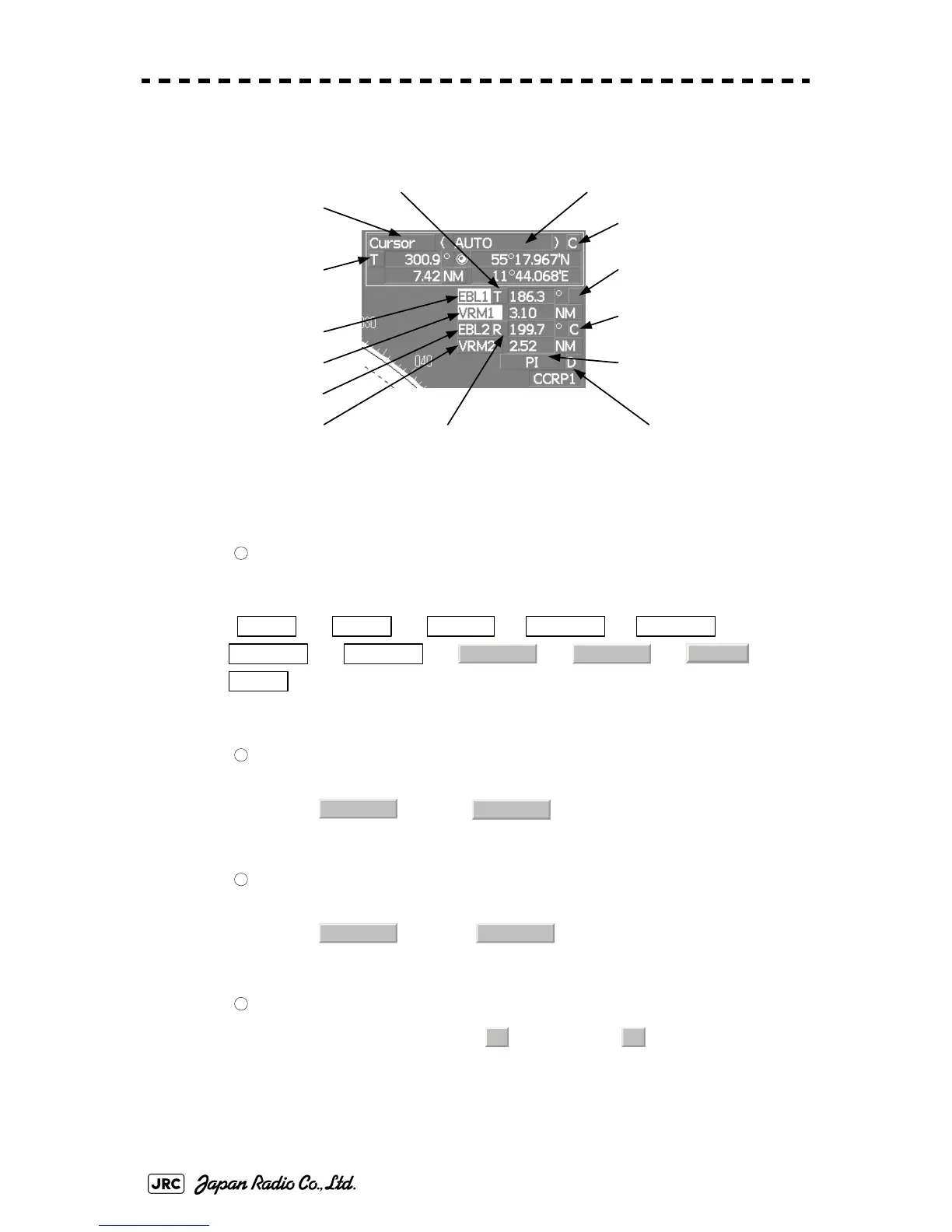

④ Cursor bearing
numeric value display
true / relative switching
⑤ EBL1 adjustment
⑥ VRM1 adjustment
⑪ EBL1 starting point
mode switching
① Cursor mode switching
⑫ EBL2 starting point
mode switching
⑬ Parallel index line
setting
⑭ Parallel index line
starting point mode
switching
⑩ EBL2 numeric value indication
true / relative switching
③ Mark color / line color
switching
⑧ VRM2 adjustment
⑦ EBL2 adjustment
⑨ EBL1 numeric value indication
true / relative switching
② Mark font / line pattern
switching
1
AUTO ACQ TT ACT AIS TGT Data CNCL TT
DEACT AIS CNCL Data
□
-------
Property
AUTO
2
□
-------
3
□
-------
4
T
R
