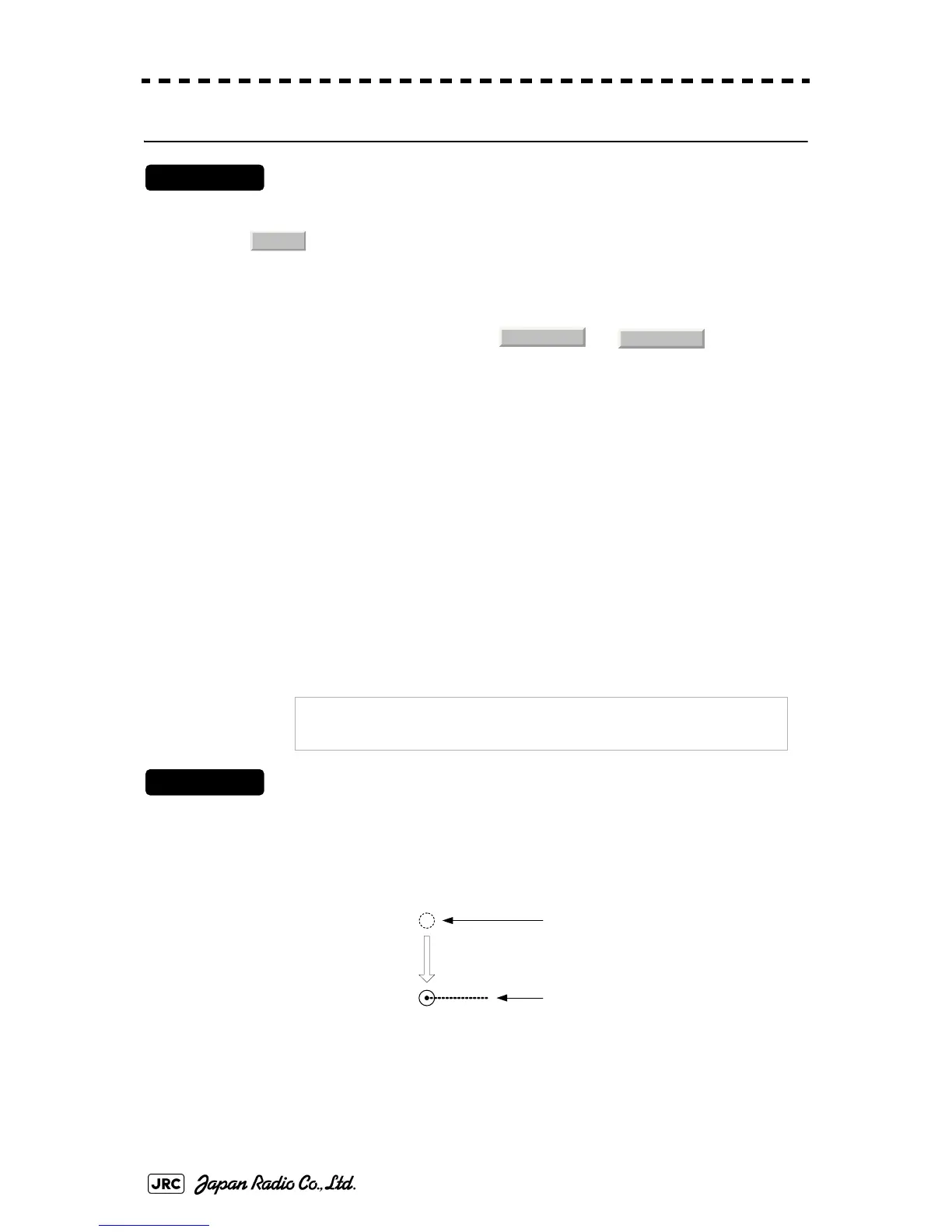

JMA-9100 Instruction Manual > 5.OPERATION OF TARGET TRACKING AND AIS > 5.2 TARGET TRACKING OPERATION
[2] Creating the automatic acquisition and AIS activation Zone (Make AZ)
Procedures
1) Open the AZ menu by following menu operations.
The AZ Menu will appear.
2) Left-click the item button of or .
The range setting of the acquisition / activation zone 1 (AZ1) or acquisition / activation zone
2 (AZ2) will be started.
3) Set the starting azimuth and range by turning the [EBL] dial and
[VRM] dial, and left-click.
4) Set the ending azimuth and range by turning the [EBL] dial and
[VRM] dial, and left-click.
The acquisition / activation zone will be determined.
5.2.1.2 Manual Acquisition [ACQ MANUAL]
Procedures
1) Move the cursor onto the target to be acquired, and press the
[ACQ MANUAL] key.
The target will be acquired and the initial acquisition symbol will be displayed.
The vector will be displayed within one minute.
To perform operation only in the manual acquisition mode without automatic acquisition/
activation, turn off the automatic acquisition/activation function.
NOTE:
If more targets are acquired manually in the condition that the
maximum number of targets are under tracking, the targets
cannot acquired.
AZ
3. Make AZ1
4. Make AZ2
Target manually acquired .
The initial acquisition symbol is displayed .
Target that has passed for 1 min.
The acquisition symbol and vector are displayed .
