b. Radiator
Check up and clean the radiator.
• If the radiator front face (radiation plane) is soiled with smoke,
salt, dust, paint or birds’ droppings, wipe it with a piece of soft
cloth wetted with alcohol or water and try to keep it clean at all
times. Otherwise, radar beam radiation may attenuate or reflect
on it, resulting in deterioration of radar performance.
• Never use solvents of gasoline, benzine, trichloroethylene and
ketone for cleaning. Otherwise, the radiation plane may
deteriorate.
②
①
③
④
⑤
⑥
⑦
⑧
Tightening torque : 120 to 150 kgf/cm
4-M8 (stainless steel) bolt
Tightening torque : 120 to 150 kgf/cm
8-M8 (stainless steel) bolt
②
①③
④
②①
③④

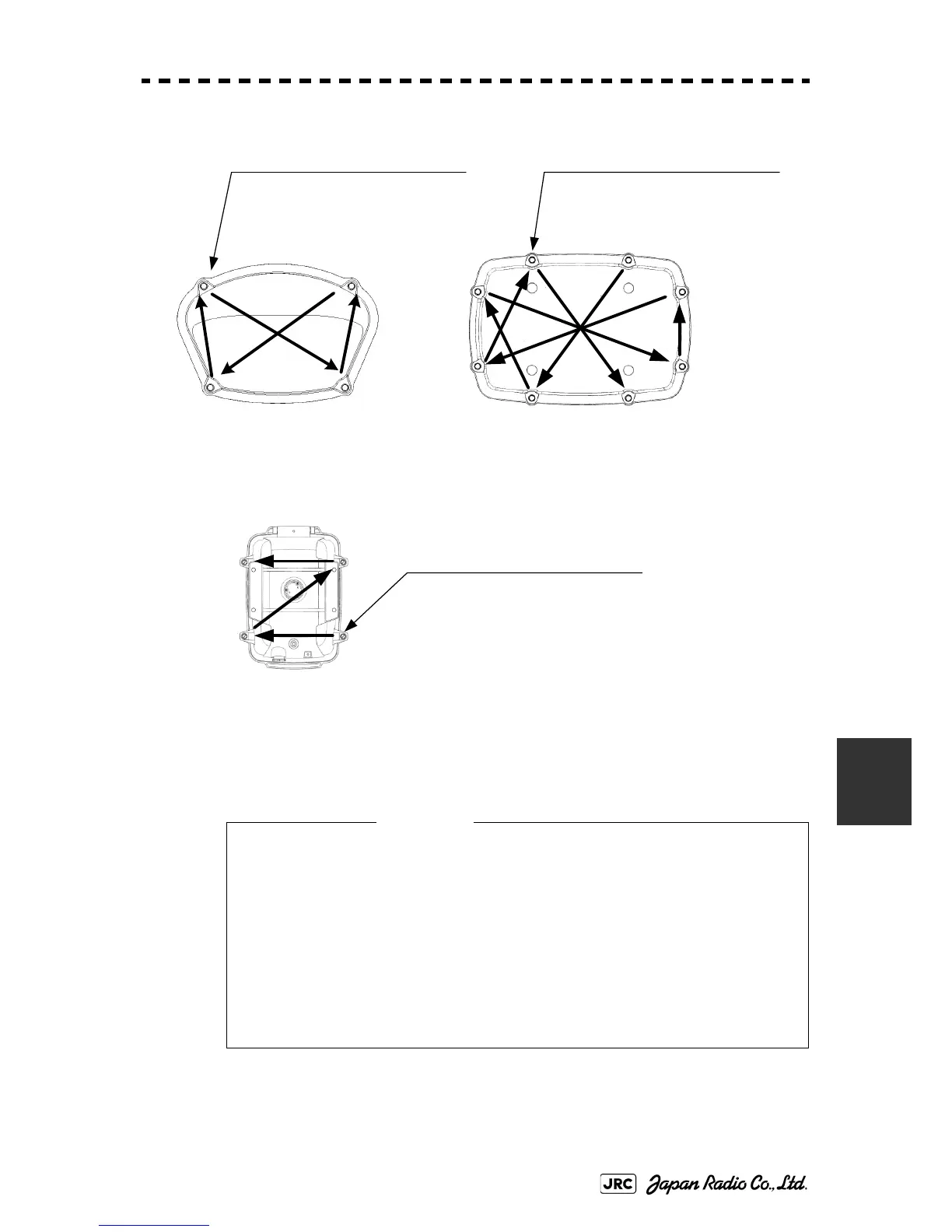

Bolt Tightening Procedure of
NKE-1125/1129/2254 Cover
Bolt Tightening Procedure of
NKE-1130 /1139 Cover
Bolt Tightening Procedure of
NKE-2103 Cover
Tightening torque : 120 to 150 kgf/cm
4-M8 (stainless steel) bolt
