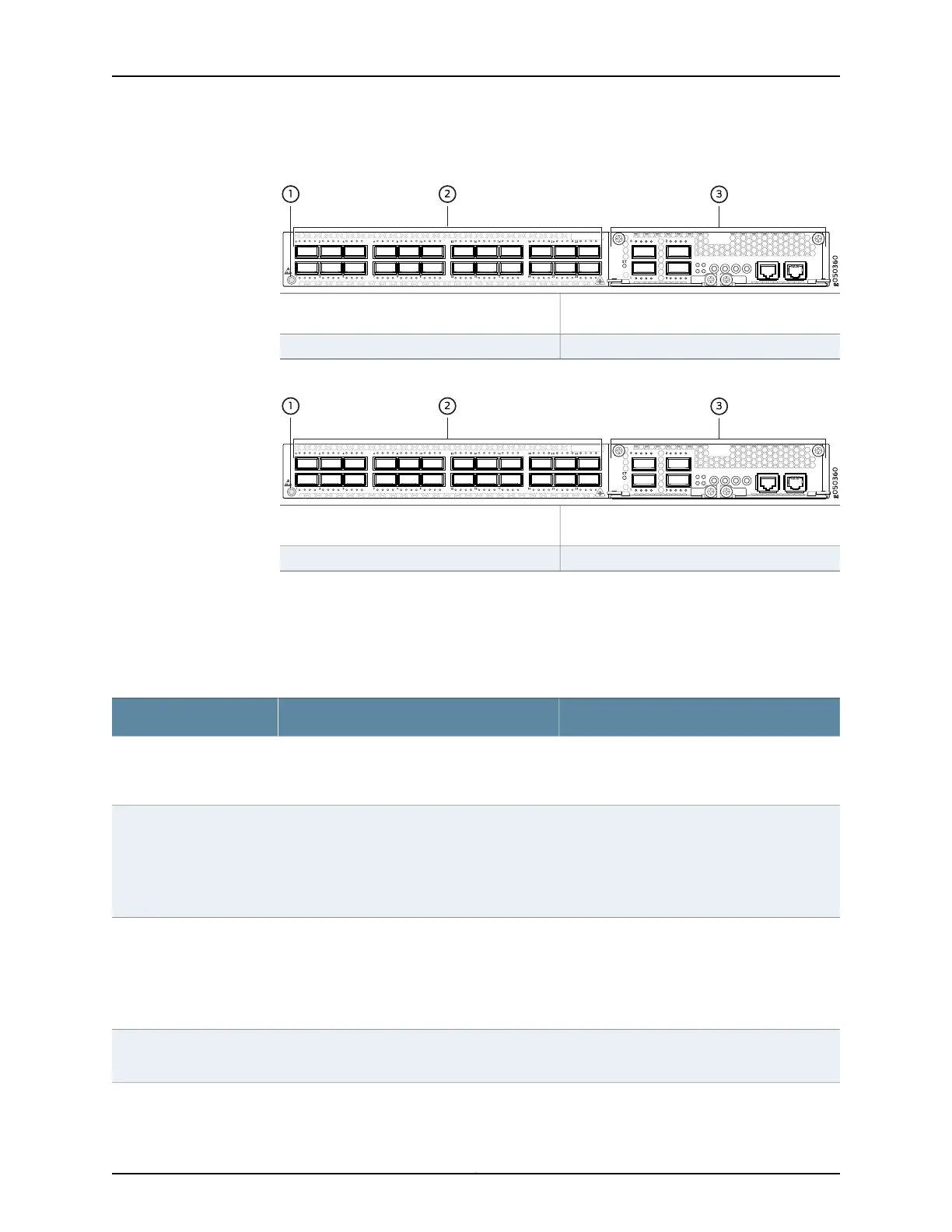

Figure 44: Port Panel QFX5100-24Q-AA Device
3—1— Expansion module bay (shows a
QFX-PFA-4Q installed)
Electrostatic discharge (ESD) terminal
2—QSFP+ access or uplink ports (24)
Figure 45: Port Panel QFX5100-24Q-AA Device
3—1— Expansion module bay (shows a
QFX-PFA-4Q installed)
Electrostatic discharge (ESD) terminal
2—QSFP+ access or uplink ports (24)
Table 33 on page 88 lists the optical transceivers supported on QFX5100 devices. For
the full specification for each these optical transceivers, see the Hardware Compatibility
Tool or “Interface Specifications for SFP, SFP+, and QSFP+ Transceivers for the QFX
Series” on page 94.
Table 33: Supported Optical Transceivers for the QFX5100 Switch
Maximum Distance SupportedDescriptionPart Number
100 m transmission on Category 5 cableSFP module 1000BASE-T Gigabit Ethernet .
Also available in packs of eight transceivers,
(JNP-1G-T–8PACK)
QFX-SFP-1GE-T
220 m transmission on FDDI, multimode fiber
(MMF) cable
275 m transmission on OM1, MMF cable
550 m transmission on OM2, MMF cable
SFP module 1000BASE-SX Gigabit Ethernet
Also available in packs of eight transceivers,
(JNP-1G-SX-8PACK)
QFX-SFP-1GE-SX
10 km transmissiononsingle-mode fiber (SMF)
cable
550 m transmission on OM1, MMF cable
550 m transmission on OM2, MMF cable
SFP module 1000BASE-LX Gigabit EthernetQFX-SFP-1GE-LX
10 km transmission on single strand fiber cableSFP module 10-Gigabit Ethernet bi-directional;
works in conjunction with JNP-SFP-10G-BX10U
JNP-SFP-10G-BX10D
Copyright © 2016, Juniper Networks, Inc.88
QFX5100 Switch Hardware Guide
