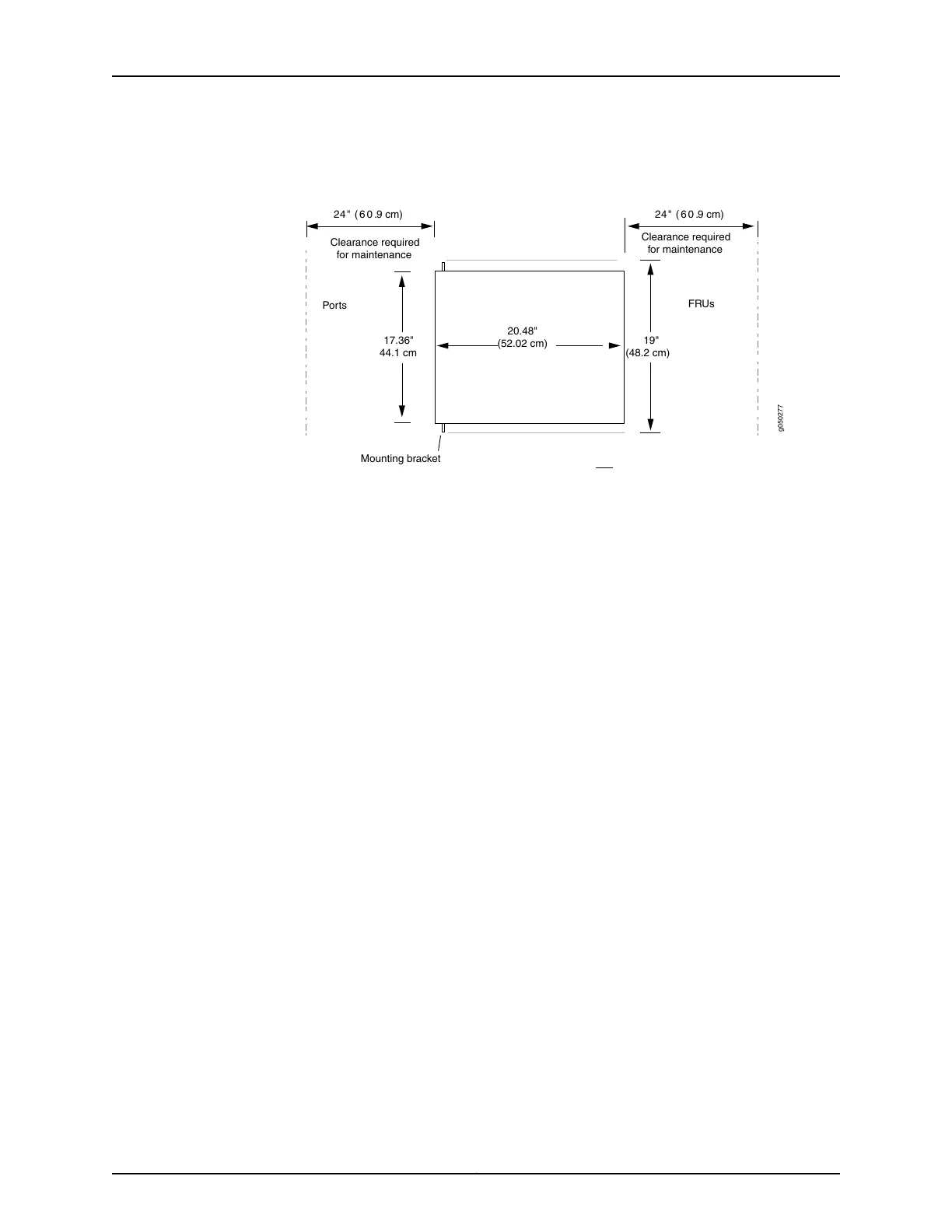

Figure 39: Clearance Requirements for Airflow and Hardware Maintenance
for a QFX5100 Device
FRUs
Ports
Mounting bracket
17.36"
44.1 cm
20.48"
(52.02 cm)
Clearance required
for maintenance
Clearance required
for maintenance
g050277
19"
(48.2 cm)
24 " ( 60 .9 cm) 24 " ( 60 .9 cm)
•
For the cooling system to function properly, the airflow around the chassis must be
unrestricted. See “Cooling System and Airflow in a QFX5100 Device” on page 39 for
more information about the airflow through the chassis.
•
If you are mounting a QFX5100 device in a rack or cabinet with other equipment, ensure
that the exhaust from other equipment does not blow into the intake vents of the
chassis.
•
Leave atleast 24 in. (61 cm) both in front of and behind the QFX5100 device. For service
personnel to remove and install hardware components, you must leave adequate
space at the front and back of the switch. NEBS GR-63 recommends that you allow
at least 30 in. (76.2 cm) in front of the rack or cabinet and 24 in. (61 cm) behind the
rack or cabinet.
Related
Documentation
• Rack Requirements for a QFX5100 Device on page 74
• Cabinet Requirements for a QFX5100 Device on page 75
• General Site Guidelines on page 69
• Rack-Mounting and Cabinet-Mounting Warnings on page 251
77Copyright © 2016, Juniper Networks, Inc.
Chapter 6: Preparation Overview

Juniper QFX5100 Specifications

General

Model	QFX5100
Category	Switch
Power Supply	Dual, hot-swappable
Rack Units	1U
Junos OS	Junos OS
Form Factor	Fixed
Management Ports	1x RJ-45
Other Ports	1 x USB port
Operating Temperature	0°C to 40°C
Storage Temperature	-40° to 158° F (-40° to 70° C)
Humidity	5% to 90% non-condensing
Power Consumption	Varies by model
AC Input Voltage	100-240 VAC
AC Input Frequency	50 to 60 Hz
Maximum Power Consumption	400W
Mean Time Between Failures (MTBF)	200, 000 hours
Ports	48x 10GbE SFP+ and 6x 40GbE QSFP+
