CHAPTER 13
Connecting the Switch to the Network
•
Connecting a QFX Series Device to a Management Console on page 179
•
Connecting a QFX5100 Device to a Network for Out-of-Band Management on page 180
•
Connecting QFX Series and EX Series Switches in a QFX Virtual Chassis on page 181
•
Connecting a QFX5100 Device in a Virtual Chassis Fabric on page 187
Connecting a QFX Series Device to a Management Console
The QFX Series has a console port with an RJ-45 connector. Use the console port to
connect the device to a management console or to a console server.
Ensure that you have an RJ-45 to DB-9 rollover cable available. An RJ-45 cable with an
RJ-45 to DB-9 adapter is provided with the device.
NOTE: If your laptop or PC does not have a DB-9 male connector pin and you
want to connect your laptop or PC directly to the QFX Series, use a
combination of the RJ-45 cable and RJ-45 to DB-9 adapter supplied with the
device and a USB to DB-9 male adapter. You must provide the USB to DB-9
male adapter.
To connect the QFX Series to a management console (see Figure 60 on page 179 and
Figure 61 on page 180):
1. Connect one end of the Ethernet cable to the console port (labeled CON).
2. Connect the other end of the Ethernet cable into the console server (see
Figure 60 on page 179) or management console (see Figure 61 on page 180).

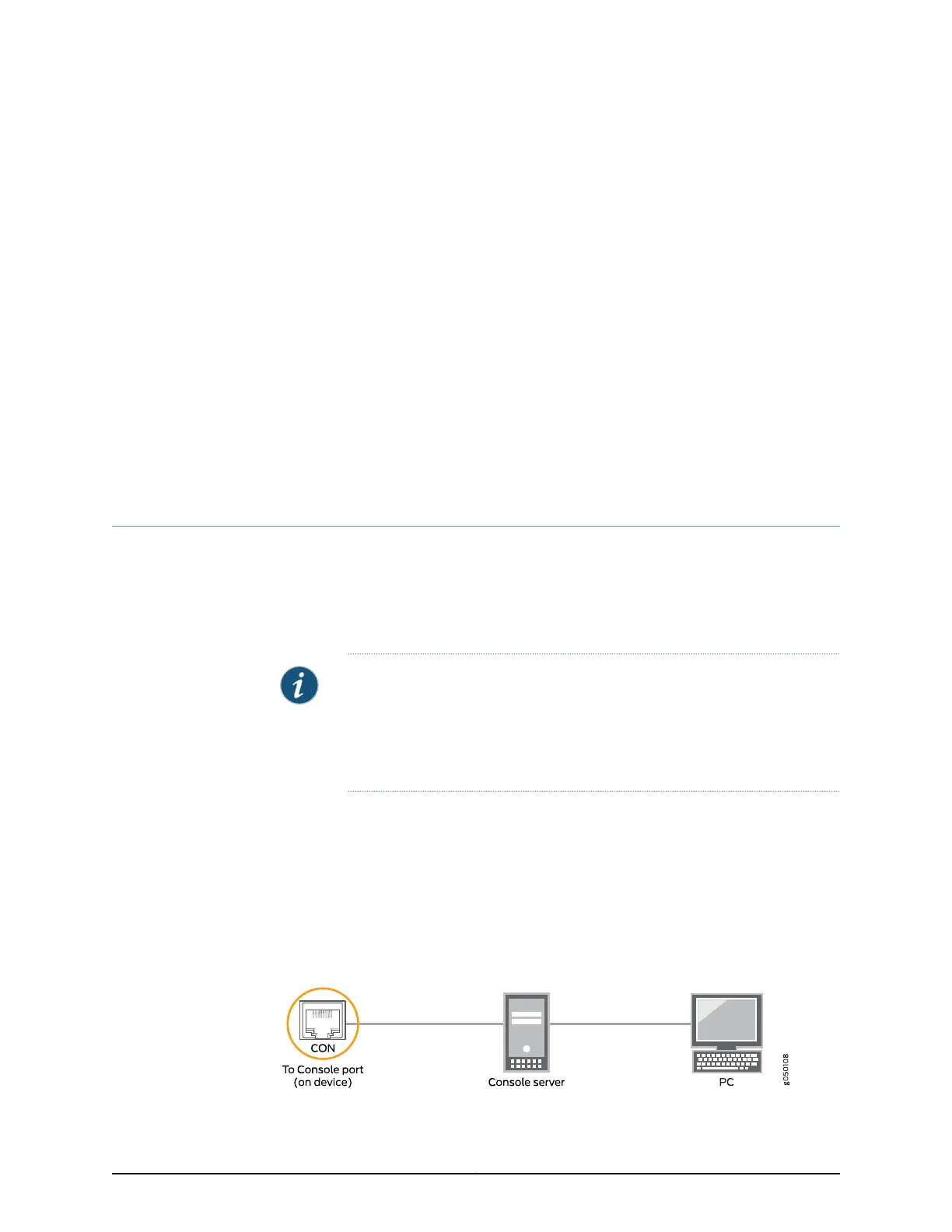

Figure 60: Connecting the QFX Series to a Management Console Through
a Console Server
179Copyright © 2016, Juniper Networks, Inc.
