Keithley 2110 User Manual

Model 2110
5½ Digit Multimeter Reference Manual Section 2:
General overview
2110-901-01 Rev. C/August 2013 2-5
Power-up sequence
Self-test procedures are built into the Model 2110 for checking that the logic and measurement
hardware are functioning properly. Every time the instrument power is turned on, a set of test
procedures is performed to make sure the basic functions of the instrument work properly. If any error
occurs during self-test procedures, it indicates that parts of the instrument are not operating properly
and need to be serviced.
Refer to Error codes (on page 6-3
) for information about self-test error codes.
Erroneous self-test failures may occur if the power line voltage is set incorrectly. Errors may also
occur because of signals present on the input terminal during self-test procedures. Long test leads
can act as an antenna, causing pick-up of AC signals.
Front panel overview
This topic describes the keys, connections, and fuse device on the front panel. The following figure
shows the front panel. A brief description of the front-panel features follows the figure.

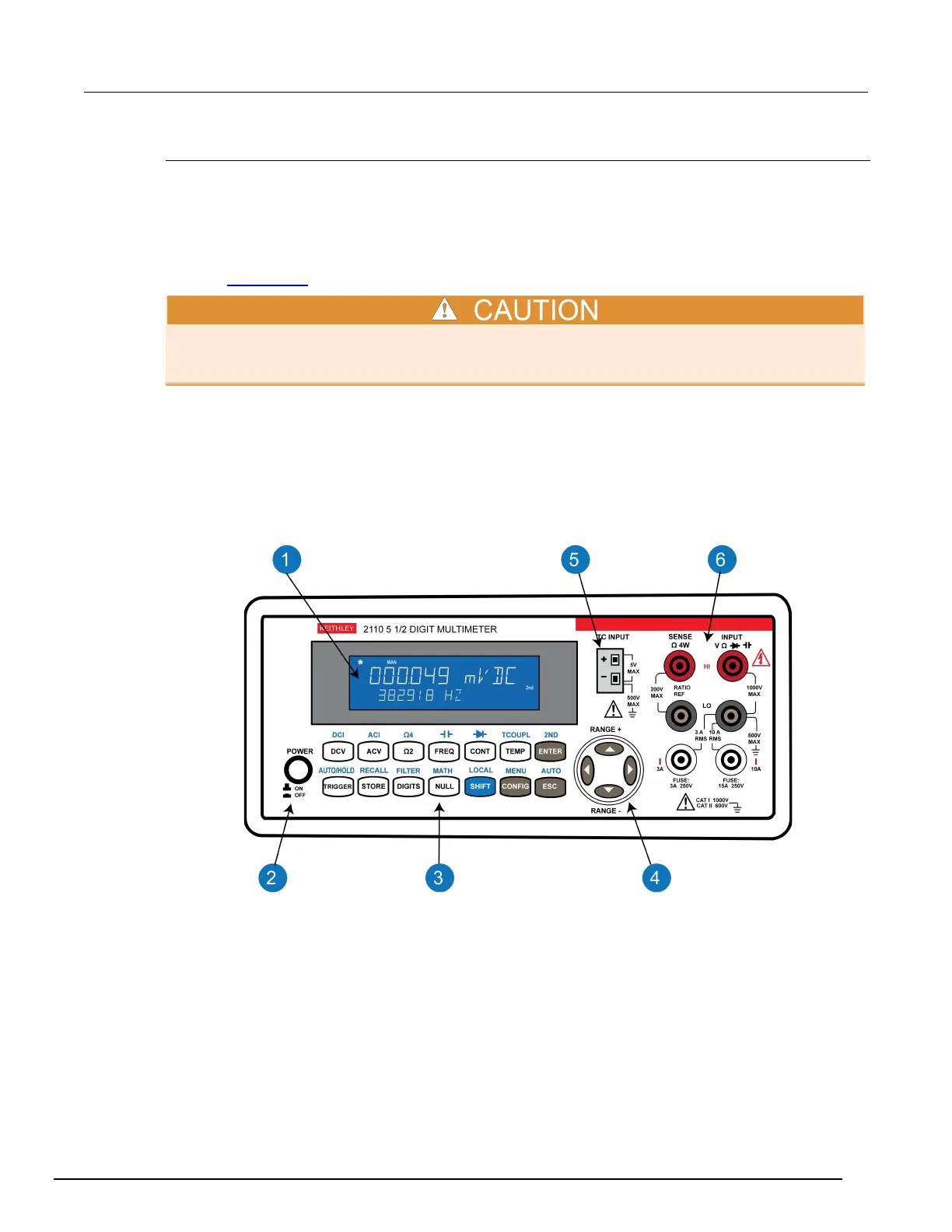

Figure 8: Front panel

Keithley 2110 Specifications

General

Model	2110
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Continuity	Yes
Diode Test	Yes
Category	Digital Multimeter
Display	5.5 digit
DC Current Range	100 µA to 3 A
AC Current Range	100 µA to 3 A
Resistance Range	100 MΩ
Frequency Range	3 Hz to 300 kHz
Frequency Accuracy	0.01% + 1 count
Capacitance Range	1 nF to 100 µF
Capacitance Accuracy	1% + 5 counts
Connectivity	USB, GPIB (optional)
Dimensions	88 mm
Power Supply	100 V to 240 V AC, 50/60 Hz
DC Voltage Accuracy	±0.012% + 2 counts
