3: Basic DMM operation Model 2110 5½ Digit Multimeter
3-18 2110-901-01 Rev. C/August 2013
Connections to measure temperature using an RTD
The following figure shows how to connect RTD probes to the instrument. For the 3-wire probe, make
sure to connect the SENSE LO terminal to the INPUT LO terminal. Source current flows from INPUT
HI to INPUT LO as shown in the following figure.

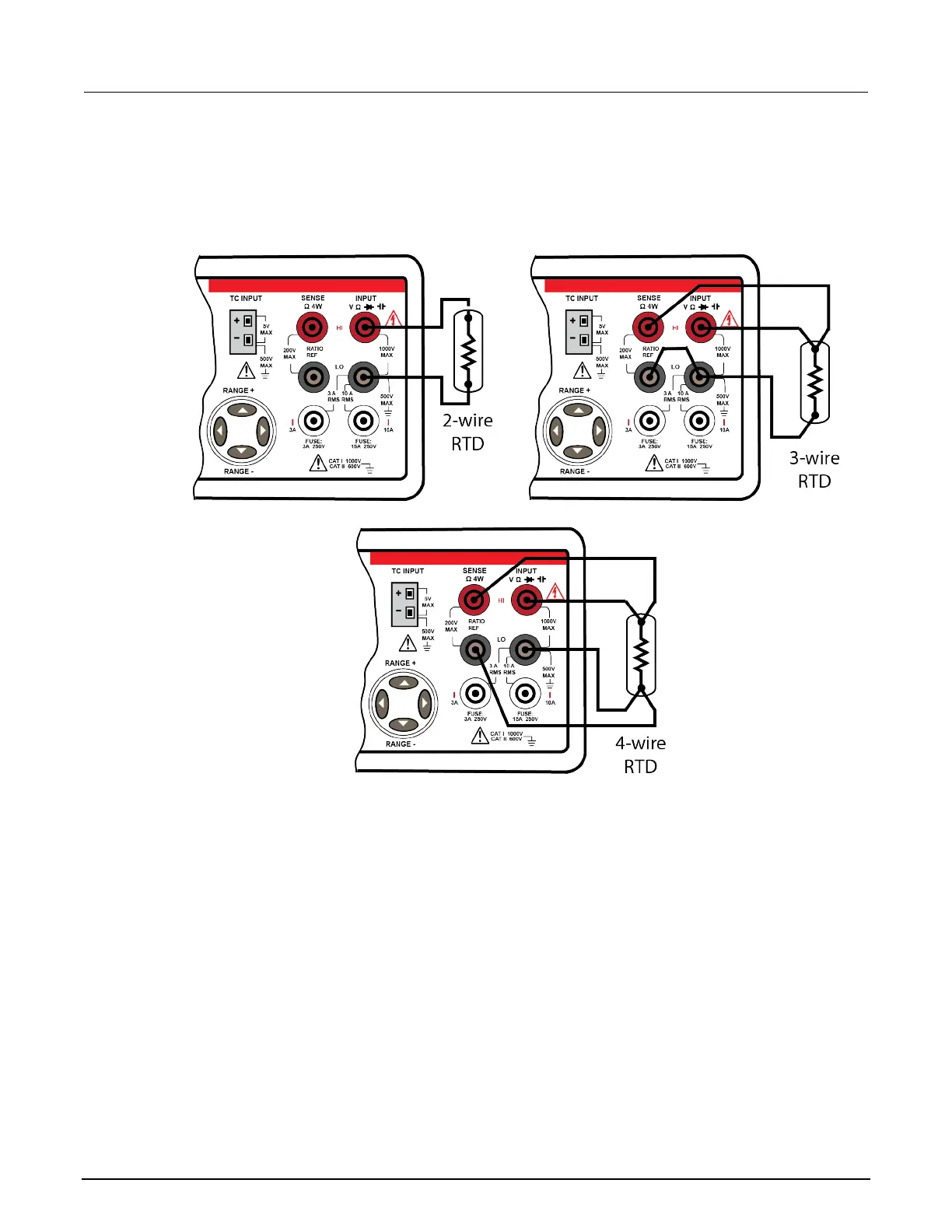

Figure 22: Connections for RTD measurements
